Fire retardant cable(Fireguard)
300/500V PVC Insulated, PVC Sheathed, Twin & Earth Cables (2-3 Cores)
FGD200-E 05VV-U/R (CU/PVC/PVC 300/500V Class 1/2)
BS Code: 6242Y/6243Y
APPLICATION
The cables are mainly used in power stations, mass transit underground passenger systems, airports,
petrochemical plants, hotels, hospitals, and high-rise buildings. This product type is TUV approved.
STANDARDS
Basic design to BS 6004:2012
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2 |
VOLTAGE RATING
300/500V

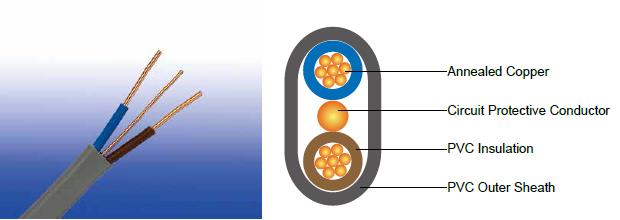

CABLE CONSTRUCTION
Conductor:Annealed copper conductor，class 1 (1.0mm² to 2.5mm²) or class 2 (4mm² to 35mm²) according to BS
EN 60228.
Insulation:PVC Type TI 1 according to BS EN 50363-3.
Circuit Protective Conductor (CPC):Annealed plain copper (class 1 or 2)
Position of CPC:Centrally placed between cores in same plane (twin); centrally placed between black and grey
cores in same plane(3-core).
Outer Sheath:PVC Type 6 according to BS 7655-4.2.
Outer Sheath Option:UV resistance,hydrocarbon resistance,oil resistance,anti rodent and anti termite properties
can be offered as option. Compliance to fire performance standard (IEC 60332-1,IEC 60332-3,UL 1581,UL 1666
etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be
provided upon request.
COLOUR CODE
Insulation Colour :
Twin : brown and blue, alternatively, for 2 x 1.0 and 2 x 1.5 cables, brown and brown;
3-core : brown, black (centre core), and grey
Sheath Colour : Grey, other colours can be offered upon request.
PHYSICAL AND THERMAL PROPERTIES
| Maximum temperature range during operation (PVC) | 70°C |
Maximum short circuit temperature (5 Seconds) |
160°C |
Minimum bending radius |
6 x Overall Diameter |
CONSTRUCTION PARAMETERS
Conductor |
FGD200-E 05VV-U/R |
||||||
No. of Cores x Cross Section |
Class of Conductor |
Nominal Insulation Thickness |
Cross-Section Area of CPC |
Class of CPC |
Nominal Sheath Thickness |
Maximum Overall Diameter |
Approx. Weight |
No.xmm² |
|
mm |
mm² |
|
mm |
mm |
kg/km |
2x1.0 |
1 |
0.6 |
1.0 |
1 |
0.9 |
4.8x8.7 |
68 |
2x1.5 |
1 |
0.7 |
1.0 |
1 |
0.9 |
5.3x9.7 |
85 |
2x2.5 |
1 |
0.8 |
1.5 |
1 |
1.0 |
6.2x11.7 |
120 |
2x4.0 |
2 |
0.8 |
1.5 |
1 |
1.0 |
6.9x13.1 |
175 |
2x6.0 |
2 |
0.8 |
2.5 |
1 |
1.1 |
7.8x15.0 |
240 |
2x10 |
2 |
1.0 |
4.0 |
2 |
1.2 |
9.5x18.9 |
390 |
2x16 |
2 |
1.0 |
6.0 |
2 |
1.3 |
10.8x21.9 |
560 |
3x1.0 |
1 |
0.6 |
1.0 |
1 |
0.9 |
4.8x11.4 |
91 |
3x1.5 |
1 |
0.7 |
1.0 |
1 |
0.9 |
5.3x12.9 |
115 |
3x2.5 |
1 |
0.8 |
1.5 |
1 |
1.0 |
6.2x15.3 |
170 |
3x4.0 |
2 |
0.8 |
1.5 |
1 |
1.1 |
7.1x17.9 |
250 |
3x6.0 |
2 |
0.8 |
2.5 |
1 |
1.1 |
7.8x20.2 |
340 |
3x10 |
2 |
1.0 |
4.0 |
2 |
1.2 |
9.5x25.7 |
540 |
3x16 |
2 |
1.0 |
6.0 |
2 |
1.3 |
10.8x29.7 |
790 |
ELECTRICAL PROPERTIES
Conductor Operating Temperature |
70°C |
Ambient Temperature |
30°C |
Current-Carrying Capacities (Amp) and Voltage Drop (Per Amp Per Meter) according to BS7671:2008 table 4D5
Conductor cross-sectional area |
Reference Method 100# (above a plasterboard ceiling covered by thermal insulation not exceeding 100 mm in thickness) |
Reference Method 101# (above a plasterboard ceiling covered by thermal insulation exceeding 100 mm in thickness) |
Reference Method 102# (in a stud wall with thermal insulation with cable touching the inner wall surface) |
Reference Method 103# (in a stud wall with thermal insulation with cable not touching the inner wall surface) |
Reference Method C* (clipped direct) |
Reference Method A* (enclosed in conduit in an insulated wall) |
Voltage Drop (per ampere per meter) |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
mm² |
A |
A |
A |
A |
A |
A |
mV/A/m |
1.0 |
13 |
10.5 |
13 |
8.0 |
16 |
11.5 |
44 |
1.5 |
16 |
13 |
16 |
10 |
20 |
14.5 |
29 |
2.5 |
21 |
17 |
21 |
13.5 |
27 |
20 |
18 |
4.0 |
27 |
22 |
27 |
17.5 |
37 |
26 |
11 |
6.0 |
34 |
27 |
35 |
23.5 |
47 |
32 |
7.3 |
10 |
45 |
36 |
47 |
32 |
64 |
44 |
4.4 |
16 |
57 |
46 |
63 |
42.5 |
85 |
57 |
2.8 |
A* For full installation method refer to Table 4A2 (BS 7671-2008) Installation Method 2 but for flat twin and earth cable
C* For full installation method refer to Table 4A2 (BS 7671-2008) Installation Method 20 but for flat twin and earth cable
100# For full installation method refer to Table 4A2 (BS 7671-2008) Installation Method 100
102# For full installation method refer to Table 4A2 (BS 7671-2008) Installation Method 102
103# For full installation method refer to Table 4A2 (BS 7671-2008) Installation Method 103
Wherever practicable, a cable is to be fixed in a position such that it will not be covered with thermal insulation.
Regulation 523.7, BS 5803-5 Appendix C: Avoidance of overheating of electric cables, Building Regulations Approved document B and Thermal insulation: avoiding risks, BR 262, BRE, 2001 refer.
