FIREGUARD Flame Retardant Cables


Fire retardant cable(Fireguard)

450/750V PVC Insulated, Non-sheathed Power Cables (Single Core)

FGD100 07V-U/R/K (CU/PVC 450/750V Class 1/2/5)

BS Code : 6491X

HAR Code : H07V-U, H07V-R, H07V-K

APPLICATION

This cables are mainly used in power stations, mass transit underground passenger systems, airports,

petrochemical plants, hotels, hospitals, and high-rise buildings. This product type is CE and TUV approved.

STANDARDS

Basic design to BS EN 50525-2-31(formerly BS 6004:2000)

FGD100 07V-U/R/K (CU/PVC 450/750V Class 1/2/5)

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)

EN 60332-1-2

VOLTAGE RATING

450/750V

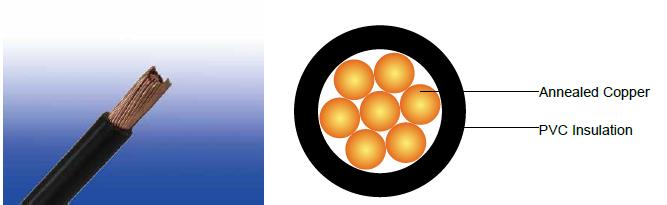

CABLE CONSTRUCTION


Conductor



H05V-U

Class 1 solid copper conductor to BS EN 60228.

H05V-R

Class 2 stranded copper conductor to BS EN 60228.

H05V-K

Class 5 stranded copper conductor to BS EN 60228.

Insulation

PVC Type TI 1 according to BS EN 50363-3

COLOUR CODE

Black, Blue, Brown, Grey, Orange, Pink, Red, Turquoise, Violet, White, Green and Yellow.

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation (PVC)

70°C

Maximum short circuit temperature (5 Seconds)

160°C

Minimum bending radius

Up to 8mm²

4 x overall diameter



8mm² to 12mm²

5 x overall diameter



Above 12mm²

6 x overall diameter

CONSTRUCTION PARAMETERS


Conductor

FGD100 07V-U/R/K　

No. of Cores x Cross Section

Class of Conductor

Nominal Insulation Thickness

Maximum Overall Diameter

Approx. Weight

No.xmm²

　

mm

mm

kg/km

1x1.5

1

0.7

3.2

21

1x2.5

1

0.8

3.9

33

1x4.0

1

0.8

4.4

49

1x6.0

1

0.8

5.0

69

1x10

1

1.0

6.4

115

1x1.5

2

0.7

3.3

23

1x2.5

2

0.8

4.0

35

1x4.0

2

0.8

4.6

51

1x6.0

2

0.8

5.2

71

1x10

2

1.0

6.7

120

1x16

2

1.0

7.8

170

1x25

2

1.2

9.7

260

1x35

2

1.2

10.9

350

1x50

2

1.4

12.8

480

1x70

2

1.4

14.6

680

1x95

2

1.6

17.1

930

1x120

2

1.6

18.8

1160

1x150

2

1.8

20.9

1430

1x185

2

2.0

23.3

1780

1x240

2

2.2

26.6

2360

1x300

2

2.4

29.6

2940

1x400

2

2.6

33.2

3740

1x500

2

2.8

36.9

4950

1x630

2

2.8

41.1

6300

1x800

2

2.8

45.7

8610

1x1000

2

3.0

51.0

10820

1x1.5

5

0.7

3.4

20

1x2.5

5

0.8

4.1

31

1x4.0

5

0.8

4.8

48

1x6.0

5

0.8

5.3

69

1x10

5

1.0

6.8

121

1x16

5

1.0

8.1

211

1x25

5

1.2

10.2

303

1x35

5

1.2

11.7

417

1x50

5

1.4

13.9

539

1x70

5

1.4

16.0

730

1x95

5

1.6

18.2

900

1x120

5

1.6

20.2

1135

1x150

5

1.8

22.5

1410

1x185

5

2.0

24.9

1845

1x240

5

2.2

28.4

2270

ELECTRICAL PROPERTIES

Conductor Operating Temperature

70°C

Ambient Temperature

30°C

Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4D1A


Conductor cross- sectional area

Reference Method A (enclosed in conduit in thermally insulating wall etc)

Reference Method B (enclosed in conduit on a wall or in trunking etc)

Reference Method C (clipped direct)

Reference Method F (in free air or on a perforated cable tray horizontal or vertical etc)

Touching

Spaced by one cable diameter

2 cables, single-phase a.c. or d.c.

3 or 4 cables, three -phase a.c.

2 cables, single-phase a.c. or d.c

3 or 4 cables, three-phase a.c.

2 cables, single-phase a.c. or d.c. flat and touching

3 or 4 cables, three-phase a.c. flat and touching or trefoil

2 cables, single-phase a.c. or d.c. flat

3 cables, three-phase a.c. flat

3 cables, three-phase a.c. trefoil

2 cables, single-phase a.c. or d.c. or 3 cables three- phase a.c. flat

Horizontal

Vertical

1

2

3

4

5

6

7

8

9

10

11

12

mm²

A

A

A

A

A

A

A

A

A

A

A

1.5

14.5

13.5

17.5

15.5

20

18

-

-

-

-

-

2.5

20

18

24

21

27

25

-

-

-

-

-

4.0

26

24

32

28

37

33

-

-

-

-

-

6.0

34

31

41

36

47

43

-

-

-

-

-

10

46

42

57

50

65

59

-

-

-

-

-

16

61

56

76

68

87

79

-

-

-

-

-

25

80

73

101

89

114

104

131

114

110

146

130

35

99

89

125

110

141

129

162

143

137

181

162

50

119

108

151

134

182

167

196

174

167

219

197

70

151

136

192

171

234

214

251

225

216

281

254

95

182

164

232

207

284

261

304

275

264

341

311

120

210

188

269

239

330

303

352

321

308

396

362

150

240

216

300

262

381

349

406

372

356

456

419

185

273

245

341

296

436

400

463

427

409

521

480

240

321

286

400

346

515

472

546

507

485

615

569

300

367

328

458

394

594

545

629

587

561

709

659

400

-

-

546

467

694

634

754

689

656

852

795

500

-

-

626

533

792

723

868

789

749

982

920

630

-

-

720

611

904

826

1005

905

855

1138

1070

800

-

-

-

-

1030

943

1086

1020

971

1265

1188

1000

-

-

-

-

1154

1058

1216

1149

1079

1420

1337

Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4D1B


Nominal Cross Section Area

2 cables d.c.

2 cables, single-phase a.c.

3 or 4 cables, three-phase a.c.

Ref. Methods A and B (enclosed in conduit or trunking)

Ref. Methods C & F(clipped direct, on trays or in free air)

Ref. Methods A & B (enclosed in conduit or trunking

Ref. Methods C & F (clipped direct, on trays or in free air)

Cables touching

Cables spaced*

Cables touching, Trefoil

Cables touching, Flat

Cables spaced*, Flat

1

2

3

4

5

6

7

8

9

mm²

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

1.5

29

29

29

29

25

25

25

25

2.5

18

18

18

18

15

15

15

15

4.0

11

11

11

11

9.5

9.5

9,5

9.5

6.0

7.3

7.3

7.3

7.3

6.4

6.4

6.4

6.4

10

4.4

4.4

4.4

4.4

3.8

3.8

3.8

3.8

16

2.8

2.8

2.8

2.8

2.4

2.4

2.4

2.4





r

x

z

r

x

z

r

x

z

r

x

z

r

x

z

r

x

z

r

x

z

25

1.75

1.80

0.33

1.80

1.75

0.20

1.75

1.75

0.29

1.80

1.50

0.29

1.55

1.50

0.175

1.50

1.50

0.25

1.55

1.50

0.32

1.55

35

1.25

1.30

0.31

1.30

1.25

0.195

1.25

1.25

0.28

1.30

1.10

0.27

1.10

1.10

0.170

1.10

1.10

0.24

1.10

1.10

0.32

1.15

50

0.93

0.95

0.3

1.0

0.93

0.19

0.95

0.93

0.28

0.97

0.81

0.26

0.85

0.8

0.165

0.82

0.8

0.24

0.84

0.8

0.32

0.86

70

0.63

0.65

0.29

0.72

0.63

0.185

0.66

0.63

0.27

0.69

0.56

0.25

0.61

0.55

0.16

0.57

0.55

0.24

0.6

0.55

0.31

0.63

95

0.46

0.49

0.28

0.56

0.47

0.18

0.5

0.47

0.27

0.54

0.42

0.24

0.48

0.41

0.155

0.43

0.41

0.23

0.47

0.4

0.31

0.51

120

0.36

0.39

0.27

0.47

0.37

0.175

0.41

0.37

0.26

0.45

0.33

0.23

0.41

0.32

0.15

0.36

0.32

0.23

0.4

0.32

0.3

0.44

150

0.29

0.31

0.27

0.41

0.3

0.175

0.34

0.29

0.26

0.39

0.27

0.23

0.36

0.26

0.15

0.3

0.26

0.23

0.34

0.26

0.3

0.4

185

0.23

0.25

0.27

0.37

0.24

0.17

0.29

0.24

0.26

0.35

0.22

0.23

0.32

0.21

0.145

0.26

0.21

0.22

0.31

0.21

0.3

0.36

240

0.18

0.195

0.26

0.33

0.185

0.165

0.25

0.185

0.25

0.31

0.17

0.23

0.29

0.16

0.145

0.22

0.16

0.22

0.27

0.16

0.29

0.34

300

0.145

0.16

0.26

0.31

0.15

0.165

0.22

0.15

0.25

0.29

0.14

0.23

0.27

0.13

0.14

0.19

0.13

0.22

0.25

0.13

0.29

0.32

400

0.105

0.13

0.26

0.29

0.12

0.16

0.2

0.115

0.25

0.27

0.12

0.22

0.25

0.105

0.14

0.175

0.105

0.21

0.24

0.1

0.29

0.31

500

0.086

0.11

0.26

0.28

0.098

0.155

0.185

0.093

0.24

0.26

0.1

0.22

0.25

0.086

0.135

0.16

0.086

0.21

0.23

0.081

0.29

0.3

630

0.068

0.094

0.25

0.27

0.081

0.155

0.175

0.076

0.24

0.25

0.08

0.22

0.24

0.072

0.135

0.15

0.072

0.21

0.22

0.066

0.28

0.29

800

0.053

-

-

-

0.068

0.15

0.165

0.061

0.24

0.25

-

-

-

0.06

0.13

0.145

0.06

0.21

0.22

0.053

0.28

0.29

1000

0.042

-

-

-

0.059

0.15

0.16

0.05

0.24

0.24

-

-

-

0.052

0.13

0.14

0.052

0.2

0.21

0.044

0.28

0.28

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
r = conductor resistance at operating temperature
x = reactance
z = impedance
