FIREGUARD Flame Retardant Cables

Fire retardant cable(Fireguard)

300/500V PVC Insulated, PVC Sheathed Power Cables to BS 6004 (Single Core with CPC)

FGD300-E 05VV-U/R (CU/PVC/PVC 300/500V Class 1/2)

BS Code: 6241Y (CU/PVC/PVC)

APPLICATION

The cables are mainly used in power stations, mass transit underground passenger systems, airports,

petrochemical plants, hotels, hospitals, and high-rise buildings. This product type is TUV approved.

STANDARDS

Basic design to BS 6004: 2012

Approvals:

TUV Certification (B 098200 0028 Rev.00)

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)    BS EN 60332-1-2

VOLTAGE RATING

300/500V

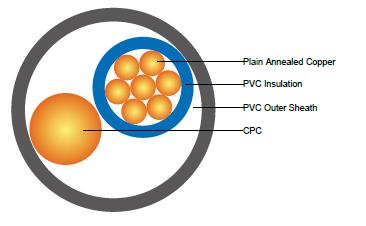

CABLE CONSTRUCTION

Conductor: Annealed copper conductor, class 1 (1.0mm² to 1.5mm²) or class 2 (1.5mm²) according to BS

EN 60228.

Insulation: PVC Type TI 1 according to BS EN 50363-3.

Circuit Protective Conductor (CPC): Annealed plain copper class 1.

Outer Sheath: PVC Type 6 according to BS 7655-4.2.

Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite

properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3,

UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design.

LSPVC can also be provided upon request.

COLOUR CODE

Insulation Colour: Brown or blue.

Sheath Colour: Grey, other colours can be offered upon request.

Physical AND THERMAL PROPERTIES

Maximum temperature range during operation (PVC): 70°C

Maximum short circuit temperature (5 Seconds): 160°C

Minimum bending radius:

Up to 10mm² - Fixed: 3 x overall diameter

10mm² to 25mm² - Fixed: 4 x overall diameter

CONSTRUCTION PARAMETERS

Conductor

FGD300E 05VV-U/R



No. of Cores x Cross Section



Class of Conductor

Nominal
Insulation Thickness

Nominal
Sheath Thickness



Cross Section Area of CPC



Class of CPC

Maximum
Overall Dimension



Approx. Weight

No.xmm2



mm

mm





mm

kg/km

1x1.0

1

0.6

0.8

1.0

1

4.8x6.0

37

1x1.5

1

0.7

0.8

1.0

1

5.3x6.6

57

1x1.5

2

0.7

0.9

1.0

1

5.4x6.7

65

Electrical PROPERTIES

Conductor Operating Temperature: 70°C

Ambient Temperature: 30°C

current-carrying capacities (amp) according to bs 7671:2008 table 4D1a





Conductor cross- sectional area



Reference Method A (enclosed in conduit in thermally insulating wall etc)

Reference Method B (enclosed in conduit on a wall or in trunking etc)



Reference Method C (clipped direct)

Reference Method F (in free air or on a perforated cable tray horizontal or vertical etc)



Touching

Spaced by one cable diameter

2
cables, single- phase
a.c. or
d.c.



3 or 4 cables, three
-phase a.c.



2 cables, single- phase
a.c. or d.c



3 or 4 cables, three- phase a.c.

2 cables, single- phase a.c. or d.c.
flat and
touching



3 or 4 cables, three-phase
a.c. flat and touching or trefoil



2 cables, single- phase
a.c. or
d.c. flat



3 cables, three- phase
a.c. flat



3 cables, three- phase a.c. trefoil



2 cables, single-phase
a.c. or d.c. or 3 cables
three-phase a.c. flat

Horizontal

Vertical

1

2

3

4

5

6

7

8

9

10

11

12

mm2

A

A

A

A

A

A

A

A

A

A

A

1.0

11.0

10.5

13.5

12.0

15.5

14

-

-

-

-

-

1.5

14.5

13.5

17.5

15.5

20

18

-

-

-

-

-

2.5

20

18

24

21

27

25

-

-

-

-

-

4.0

26

24

32

28

37

33

-

-

-

-

-

6.0

34

31

41

36

47

43

-

-

-

-

-

10

46

42

57

50

65

59

-

-

-

-

-

16

61

56

76

68

87

79

-

-

-

-

-

25

80

73

101

89

114

104

131

114

110

146

130

35

99

89

125

110

141

129

162

143

137

181

162

Voltage Drop (Per amp Per Meter) according to bs 7671:2008 table 4D1b



Nominal Cross Section Area





2 cables d.c.

2 cables, single-phase a.c.

3 or 4 cables, three-phase a.c.

Ref. Methods A and B (enclosed in conduit or trunking)

Ref. Methods C & F(clipped direct, on trays or in free air)



Ref. Methods A
& B (enclosed in conduit or trunking

Ref. Methods C & F  (clipped direct, on trays or in free air)



Cables touching



Cables spaced*

Cables touching, Trefoil



Cables touching, Flat



Cables spaced*, Flat

1

2

3

4

5

6

7

8

9

mm2

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

1.0

44

44

44

44

38

38

38

38

1.5

29

29

29

29

25

25

25

25

2.5

18

18

18

18

15

15

15

15

4.0

11

11

11

11

9.5

9.5

9,5

9.5

6.0

7.3

7.3

7.3

7.3

6.4

6.4

6.4

6.4

10

4.4

4.4

4.4

4.4

3.8

3.8

3.8

3.8

16

2.8

2.8

2.8

2.8

2.4

2.4

2.4

2.4





r

x

z

r

x

z

r

x

z

r

x

z

r

x

z

r

x

z

r

x

z

25

1.75

1.8

0.33

1.8

1.75

0.20

1.75

1.75

0.29

1.8

1.5

0.29

1.55

1.5

0.175

1.5

1.5

0.25

1.55

1.5

0.32

1.55

35

1.25

1.3

0.31

1.3

1.25

0.195

1.25

1.25

0.28

1.3

1.1

0.27

1.10

1.1

0.170

1.1

1.1

0.24

1.10

1.1

0.32

1.15

Note: *Spacings larger than one cable diameter will result in a large voltage drop. r = conductor resistance at operating temperature
x = reactance
z = impedance
