Fire retardant cable(Fireguard)
Flame Retardant CAT6 CWB/SWB/SWA Armoured Data Cables
FGD-CAT6U/UTP4P23 CWB/SWB/SWA
FGD-CAT6F/UTP4P23 CWB/SWB/SWA
FGD-CAT6SF/UTP4P23 CWB/SWB/SWA
APPLICATION
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT,
100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables can be offered with copper
wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still
maintaining the flexibility of the cable.
STANDARDS
ISO/IEC 11801 EN 50173 ANSI/TIA/EIA 568
FIRE PERFORMANCE
Flame Retardance (Single Vertical Wire Test) : BS EN 60332-1-2

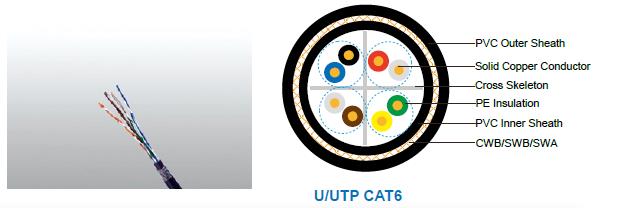

CABLE CONSTRUCTION
Conductor : 23AWG solid bare copper.
Insulation : PE.
Twinning : Two coloured insulated conductors twisted together to form a pair.
Inner Sheath : Flame retardant, low smoke and halogen-free polyolefin, coloured black.
Armouring :
CWB : Copper Wire Braid
SWB : Steel Wire Braid
SWA : Steel Wire Armour
Outer Sheath : Thermoplastic PVC compound.
Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite
properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL
1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can
also be provided upon request.

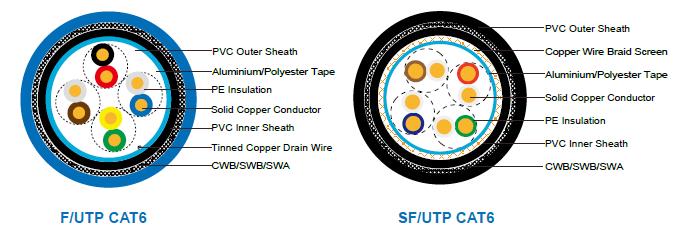

Cat6F/UTP : These cables have collective shielding of Aluminium/polyester tape with drain wire.
Cat6SF/UTP : These cables have double collective shielding of Aluminium/polyester tape & copper wire braid with
drain wire.
PHYSICAL AND THERMAL PROPERTIES
Temperature range : -30°C - +75°C
Minimum bending radius during installation (mobile state) : 8 x Overall Diameter
Minimum bending radius during operation (fixed state) : 4 x Overall Diameter
ELECTRICAL PROPERTIES
| AWG |
|
23 |
Nominal Conductor Diameter |
mm |
0.56/0.57/0.58 |
Maximum DC Resistance@20°C |
Ω/100m |
9.38 |
Maximum DCR Unbalance |
% |
3 |
Maximum Mutual Capacitance |
pF/m |
5.8 |
Maximum Capacitance Unbalance |
pF/100m |
30 |
Characteristic Impedance@1-100MHz |
Ω |
100±15 |
Maximum Propagation Delay Skew |
ns/100m |
18 |
TRANSMISSION PROPERTIES
| FREQ | Attenuation |
NEXT |
PSNEXT |
ELFEXT |
PSELFEXT |
RL |
MHz |
dB/100m |
dB |
dB |
dB/100m |
dB/100m |
dB |
0.772 |
1.8 |
76.0 |
74. |
70.0 |
67.0 |
— |
1 |
2.0 |
74.3 |
72.3 |
67.8 |
64.8 |
20.0 |
4 |
3.8 |
65.3 |
63.3 |
55.7 |
52.7 |
23.0 |
8 |
5.3 |
60.8 |
58.8 |
49.7 |
46.7 |
24.5 |
10 |
6.0 |
59.3 |
57.3 |
47.8 |
44.8 |
25.0 |
16 |
7.6 |
56.3 |
54.3 |
43.7 |
40.7 |
25.0 |
20 |
8.5 |
54.8 |
52.8 |
41.7 |
38.7 |
25.0 |
25 |
9.5 |
53.3 |
51.3 |
39.8 |
36.8 |
24.3 |
31.25 |
10.7 |
51.9 |
49.9 |
37.9 |
34.9 |
23.6 |
62.5 |
15.4 |
47.4 |
45.4 |
31.8 |
28.8 |
21.5 |
100 |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
20.1 |
155 |
25.2 |
41.5 |
39.5 |
23.9 |
20.9 |
18.8 |
200 |
29.0 |
39.8 |
37.8 |
21.7 |
18.7 |
18.0 |
250 |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
17.3 |
CONSTRUCTION PARAMETERS
| Cable Code | Construction No. of Elements×No. of Cores in Element×Conductor Diameter |
Nominal Insulation Thickness |
Nominal Inner Sheath Thickness |
Nominal Outer Sheath Thickness |
Approx. Overall Diameter |
Nominal Weight |
|
mm |
mm |
mm |
mm |
mm |
kg/km |
FGD-CAT6U/UTP4P23 CWB |
4×2×0.56/0.57 |
0.2 |
0.6 |
1.0 |
7.88 |
115 |
FGD-CAT6U/UTP4P23 SWB |
4×2×0.56/0.57 |
0.2 |
0.6 |
1.0 |
7.88 |
109 |
FGD-CAT6U/UTP4P23 SWA |
4×2×0.56/0.57 |
0.2 |
0.6 |
1.0 |
8.88 |
189 |
FGD-CAT6F/UTP4P23 CWB |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
8.48 |
126 |
FGD-CAT6F/UTP4P23 SWB |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
8.48 |
132 |
FGD-CAT6F/UTP4P23 SWA |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
9.48 |
213 |
FGD-CAT6SF/UTP4P23 CWB |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
8.96 |
154 |
FGD-CAT6SF/UTP4P23 SWB |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
8.96 |
148 |
FGD-CAT6SF/UTP4P23 SWA |
4×2×0.57/0.58 |
0.2 |
0.6 |
1.0 |
9.96 |
242 |
