FIREGUARD Flame Retardant Cables

Flame Retardant Power & Control Cables

600/1000V XLPE Insulated, PVC Sheathed, Screened Power Cables (3C+3E)

FGD300 1RCV-R (CU/XLPE/CUTO/PVC 600/1000V Class 2)



APPLICATION

The cables are designed specifically to suit the broad spectrum of requirements of Variable Speed Drives and

also include features for reducing the transmission of electromagnetic interference. These range of cables are

able to reduce capacitance of power conductors and have an electrically balanced construction which includes

split earths and a copper screen. This range of screened cables drastically reduce interferences from electrical

noise, especially in Variable Speed Drive (VSD) applications and are manufactured with fixed conductors. With

shield conductivity of 1/10th of phase conductor conductivity, this range of VSD cables effectively restrain

radiated and conducted radio-frequency emissions.

STANDARDS

Basic design adapted to IEC 60502-1

FGD300 1RCV-R (CU/XLPE/CUTO/PVC 600/1000V Class 2)

FIRE PERFORMANCE

Flame Retardance

(Single Vertical

Wire Test)**

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE

0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-

1*; DIN VDE 0482-265-2-1*

Reduced Fire

Propagation

(Vertically-mounted

bundled wires

& cable test)**

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-

004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC

compound and the cable design.

VOLTAGE RATING

600/1000V

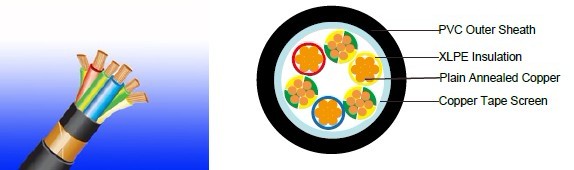

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.

Insulation: Extruded cross-linked XLPE compound.

Screen: Copper Tape

Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent

and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC

60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable

design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation Colour: Red, Yellow, Blue, Green/Yellow (x3)

Outer sheath: Black or as order

Physical AND THERMAL PROPERTIES

Temperature range during operation: Max.90°C for XLPE

250°C in short-circuit for 5secs max.

Minimum bending radius: 10 x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor FGD300 1RCV-R
No. of Core
X
Cross
Section		 No./
Nominal
Diameter
of
Strands		 Combined
Earth Size		 Nominal
Insulation
Thickness		 Nominal
Sheath
Thickness		 Nominal
Overall
Diameter		 Approx.
Weight
mm2 No./mm mm2 mm mm mm kg/km
3x1.5 7/0.53 4.5(3x1.5) 0.7 1.8 13.6 325
3x2.5 7/0.67 4.5(3x1.5) 0.7 1.8 14.8 380
3x4 7/0.85 4.5(3x1.5) 0.7 1.8 15.8 440
3x6 7/1.04 7.5(3x2.5) 0.7 1.8 16.9 550
3x10 7/1.35 12(3x4) 0.7 1.8 18.6 750
3x16 7/1.70 18(3x6) 0.7 1.8 20.8 1000
3x25 7/2.14 30(3x10) 0.9 1.8 24.0 1470
3x35 7/2.52 30(3x10) 0.9 1.8 25.6 1890
3x50 19/1.78 30(3x10) 1.0 1.9 31.1 2300
3x70 19/2.14 48(3x16) 1.1 2.0 34.6 3200
3x95 19/2.52 48(3x16) 1.1 2.2 39.3 4200
3x120 37/2.03 75(3x25) 1.2 2.3 44.0 5400
3x150 37/2.25 75(3x25) 1.4 2.5 49.0 6400
3x185 37/2.52 105(3x35) 1.6 2.6 54.0 7900
3x240 61/2.25 150(3x50) 1.7 2.8 61.0 10200
3x300 61/2.52 150(3x50) 1.8 3.0 67.0 12300

Electrical Properties

Conductor Operating Temperature : 90°C

Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor cross- sectional area Reference
Method 4 (enclosed in conduit
in thermally insulating wall
etc) 		Reference Method 3 (enclosed in conduit on
a wall or in trunking etc) 		Reference Method
1 (clipped direct) 		Reference Method 11 (on a perforated cable tray, horizontal or vertical) Reference Method 12 (free air)
Horizontal flat spaced Vertical flat spaced Trefoil
  2 cables, single- phase a.c. or d.c. 3 or 4 cables,
3-phase a.c. 		2 cables, single- phase a.c. or d.c 3 or 4 cables,
3-phase a.c. 		2 cables, single- phase a.c. or d.c. flat and touching 3 or 4 cables,
3-phase a.c. flat and touching or trefoil 		2 cables, single- phase a.c. or d.c. or flat and touching 3 or 4 cables,
3-phase a.c. flat and touching or trefoil 		2 cables, single- phase a.c. or d.c.
or 3 c ables three phase 		2
cables, single- phase a.c. or d.c.
or 3 cables three
phase 		3 cables, trefoil
3-phase a.c.
1 2 3 4 5 6 7 8 9 10 11 12
mm2 A A A A A A A A A A A
1.5 18 17 22 19 25 23 - - - - -
2.5 24 23 30 26 34 31 - - - - -
4 33 30 40 35 46 41 - - - - -
6 43 39 51 45 59 54 - - - - -
10 58 53 71 63 81 74 - - - - -
16 76 70 95 85 109 99 - - - - -
25 100 91 126 111 143 130 158 140 183 163 138
35 125 111 156 138 176 161 195 176 226 203 171
50 149 135 189 168 228 209 293 215 274 246 209
70 189 170 240 214 293 268 308 279 351 318 270
95 228 205 290 259 355 326 375 341 426 389 330
120 263 235 336 299 413 379 436 398 495 453 385
150 300 270 375 328 476 436 505 461 570 524 445
185 341 306 426 370 545 500 579 530 651 600 511
240 400 358 500 433 644 590 686 630 769 711 606
300 459 410 573 493 743 681 794 730 886 824 701

Voltage Drop (Per Amp Per Meter)

Nominal Cross Section Area 2 cables d.c. 2 cables, single-phase a.c. 3 or 4 cables, 3-phase a.c.
Ref. Methods 3
and 4 (enclosed
in conduit etc, in
or on a wall)		 Ref. Methods 1
and 11 (clipped
direct or on trays
touching)		 Ref. Methods 3
and 4 (enclosed
in conduit etc, in
or on a wall)		 Ref. Methods 1,
11 and 12 (in
trefoil)		 Ref. Methods 1
and 11
(Flat and touching)
1 2 3 4 5 6 7
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
1.5 31 31 27 27 27 27
2.5 19 19 16 16 16 16
4 33 12 10 10 10 10
6 7.8 7.9 6.8 6.8 6.8 6.8
10 4.7 4.7 4.7 4 4 4
16 2.9 2.9 2.9 2.5 2.5 2.5
    r x z r x z r x z r x z r x z
25 1.85 1.85 0.31 1.90 1.85 0.190 1.85 1.60 0.27 1.65 1.600 0.165 1.600 1.600 0.190 1.600
35 1.35 1.35 0.29 1.35 1.35 0.180 1.35 1.15 0.25 1.15 1.150 0.155 1.50 1.150 0.180 1.150
50 0.99 1.00 0.29 1.05 0.99 0.180 1.00 0.87 0.25 0.90 0.860 0.155 0.870 0.860 0.180 0.870
70 0.68 0.70 0.28 0.75 0.68 0.175 0.71 0.60 0.24 0.65 0.590 0.150 0.610 0.590 0.175 0.620
95 0.49 0.51 0.27 0.58 0.49 0.170 0.52 0.44 0.23 0.50 0.430 0.145 0.450 0.430 0.170 0.460
120 0.39 0.41 0.26 0.48 0.39 0.165 0.43 0.35 0.23 0.42 0.340 0.140 0.370 0.340 0.165 0.380
150 0.32 0.33 0.26 0.43 0.32 0.165 0.36 0.29 0.23 0.37 0.280 0.140 0.310 0.280 0.165 0.320
185 0.25 0.27 0.26 0.37 0.26 0.165 0.30 0.23 0.23 0.32 0.220 0.140 0.260 0.220 0.165 0.280
240 0.19 0.21 0.26 0.33 0.20 0.160 0.25 0.185 0.22 0.29 0.170 0.140 0.220 0.170 0.165 0.240
300 0.155 0.175 0.25 0.31 0.16 0.160 0.22 0.150 0.22 0.27 0.140 0.140 0.195 0.135 0.160 0.210
