FIREGUARD Flame Retardant Cables

Flame Retardant Power & Control Cables

600/1000V XLPE Insulated, PVC Sheathed, Armoured Power Cables (Single Core)

FGD300 1RCVMV-R (CU/XLPE/CUTO/PVC/AWA/PVC 600/1000V Class 2)



APPLICATION

This range of screened cables drastically reduce interferences from electrical noise, especially in Variable Speed

Drive (VSD) applications and are manufactured with fixed conductors.

STANDARDS

Basic design adapted to IEC 60502-1

IEC 60502-1|FGD300 1RCVMV-R

FIRE PERFORMANCE

Flame Retardance

(Single Vertical

Wire Test)**

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE

0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-

1*; DIN VDE 0482-265-2-1*

Reduced Fire

Propagation

(Vertically-mounted

bundled wires

& cable test)**

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-

004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-

4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC

compound and the cable design.

VOLTAGE RATING

600/1000V

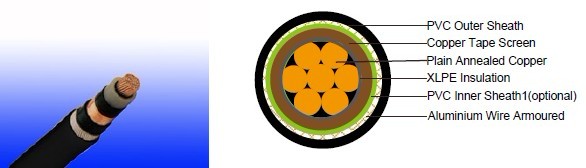

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.

Insulation: Extruded cross-linked XLPE compound.

Overall Screen: Copper Tape

Inner sheath: PVC Compound

Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent

and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC

60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable

design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation Colour as per BS7671

  With Earth Conductor Without Earth Conductor
2Cores - Brown, Blue
3Cores Yellow/Green, Brown, Blue Brown, Gray, Black
4Cores Yellow/Green, Brown, Gray, Black Brown, Gray, Black, Blue
5Cores Yellow/Green, Brown, Gray, Black, Blue Brown, Gray, Black, Blue, Black
Above 5 Cores Yellow/Green, Black Numbered Black Numbered

Sheath Colour: Black (other colors upon request)

Physical AND THERMAL PROPERTIES

Maximum conductor temperature: Max 90°C for XLPE

Minimum bending radius: 12 x Overall Diameter (for 70mm2 to 1000mm2)

CONSTRUCTION PARAMETERS

Conductor FGD300 1RCVMV-R
No. of Core
X Cross Section
No./ Nominal Diameter of
Strands
Nominal Insulation Thickness Nominal Sheath Thickness Diameter Under Screen Diameter Over Inner Sheath Armour Wire Diameter Nominal Overall Diameter Approx. Weight
mm2 No./mm mm mm mm mm mm mm kg/km
1x70 19/2.14 1.1 1.8 15.2 17.6 20.1 23.9 1400
1x95 19/2.52 1.1 1.8 17.1 19.5 22.0 25.8 1700
1x120 37/2.03 1.2 1.8 19.0 20.8 24.0 27.8 2000
1x150 37/2.25 1.4 1.8 21.0 22.8 26.0 29.8 2400
1x185 37/2.52 1.6 1.8 23.2 25.0 28.2 32.0 2800
1x240 61/2.25 1.7 1.9 26.1 27.9 31.1 35.1 3500
1x300 61/2.52 1.8 2.0 28.7 30.5 33.7 37.9 4200
1x400 61/2.85 2.0 2.1 32.5 34.3 38.3 42.7 5400
1x500 61/3.20 2.2 2.2 36.0 37.8 41.8 46.4 6500
1x630 127/2.52 2.4 2.3 40.4 42.2 46.2 51.0 8200
1x800 127/2.85 2.6 2.5 45.5 47.3 52.3 57.5 10400
1x1000 127/3.20 2.8 2.7 50.4 52.2 57.2 62.4 13000

Electrical Properties

Conductor Operating Temperature : 90°C

Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor cross- sectional area Reference Method
1 (clipped direct)
Reference Method
11 (on a perforated horizontal cable tray or Reference Method 13 [free air] )
Reference Method 12 (free air) In single-way ducts Laid direct in ground
  2 cables, single- phase a.c. or d.c. 3 or 4 cables,
3-phase a.c.
2 cables, single- phase a.c. or d.c. 3 or 4 cables,
3-phase a.c.
3 cables
3-phase a.c. trefoil touching
2 cables, single- phase a.c. or d.c. 3 or 4 cables,
3-phase a.c.
2 cables, single- phase a.c. or d.c. 3 or 4 cables,
3-phase a.c.
1 2 3 4 5 6 7 8 9 10
mm2 A A A A A A A A A
70 303 277 322 293 285 310 280 340 290
95 367 333 389 352 346 365 330 405 345
120 425 383 449 405 402 410 370 460 389
150 488 437 516 462 463 445 405 510 435
185 557 496 587 524 529 485 440 580 490
240 656 579 689 612 625 550 500 670 560
300 755 662 792 700 720 610 550 750 630
400 853 717 899 767 815 640 580 830 700
500 962 791 1016 851 918 690 620 910 770
630 1082 861 1146 935 1027 750 670 1000 840
800 1170 904 1246 987 1119 828 735 1117 931
1000 1261 961 1345 1055 1214 919 811 1254 1038

Voltage Drop (Per Amp Per Meter)

Conductor
crosssectional
area
2 cables
d.c.
2 cables singlephase
a.c.
3 or 4 cables three-phase a.c. 2 cables
singlephase
a.c.
3 or 4 cables,
3-phase a.c.
touching
Reference Method 1
&
11 (touching)
Reference Method 1,
11
& 12 (in trefoil
touching)
Reference Method
1 & 11
(Flat touching)
In
ducts
In
ground
In
ducts
In
ground
1 2 3 4 5 6 7 8 9
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
    r x z r x z r x z
70 0.67 0.68 0.20 0.71 0.59 0.17 0.62 0.6 0.25 0.65 0.80 0.70 0.70 0.61
95 0.49 0.51 0.195 0.55 0.44 0.17 0.47 0.46 0.24 0.52 0.65 0.53 0.56 0.46
120 0.39 0.41 0.190 0.45 0.35 0.165 0.39 0.38 0.24 0.44 0.55 0.43 0.48 0.37
150 0.31 0.33 0.185 0.38 0.29 0.160 0.33 0.31 0.23 0.39 0.50 0.37 0.43 0.32
185 0.25 0.27 0.185 0.33 0.23 0.160 0.28 0.26 0.23 0.34 0.45 0.31 0.39 0.27
240 0.195 0.21 0.180 0.28 0.18 0.155 0.24 0.21 0.22 0.30 0.40 0.26 0.35 0.23
300 0.155 0.17 0.175 0.25 0.145 0.150 0.21 0.17 0.22 0.28 0.37 0.24 0.32 0.21
400 0.115 0.145 0.170 0.22 0.125 0.150 0.195 0.160 0.21 0.27 0.35 0.21 0.30 0.19
500 0.093 0.125 0.170 0.21 0.105 0.145 0.180 0.145 0.20 0.25 0.33 0.20 0.28 0.18
630 0.073 0.105 0.165 0.195 0.092 0.145 0.170 0.135 0.195 0.24 0.30 0.19 0.26 0.17
800 0.056 0.090 0.160 0.190 0.086 0.140 0.165 0.130 0.180 0.23 0.28 0.18 0.24 0.16
1000 0.045 0.092 0.155 0.180 0.080 0.135 0.155 0.125 0.170 0.21 0.26 0.17 0.22 0.15
