Fire retardant cable(Fireguard)

600/1000V PVC Insulated, PVC Sheathed, Armoured Power Cables to BS 6346 (Single Core)

FGD300 1VVMAV-R (CU/PVC/PVC/AWA/PVC 600/1000V Class 2)

Application

The cables are mainly used in power stations, mass transit underground passenger systems, airports,

petrochemical plants, hotels, hospitals, and high-rise buildings.

Standards

Basic design to to BS 6346

FGD300 1VVMAV-R (CU/PVC/PVC/AWA/PVC 600/1000V Class 2)

Approvals

TUV Certification (Z1 17 01 98200 004)

Fire Performance

Flame Retardance (Single Vertical Wire Test)

BS EN 50265-2-1

Voltage Rating

600/1000V

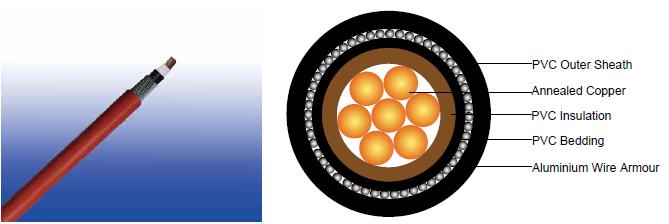

Cable Construction

Conductor :Annealed copper wire, stranded according to BS 6360 class 2.

Insulation:PVC TI 1 according to BS 7655-3.1.

Bedding:PVC.

Armouring:Aluminium wire

Outer Sheath:PVC TM 1 according to BS 7655-4.1.

Outer Sheath Option:UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite

properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL

1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can

also be provided upon request.

Colour Code

Insulation Colour

Brown or blue

Sheath Colour

Black, other colours can be offered upon request.

Physical AND THERMAL PROPERTIES

Maximum temperature range during operation (PVC)

70°C

Maximum short circuit temperature (5 Seconds)

160°C



Minimum bending radius





Circular copper conductors

6 x Overall Diameter



Shaped copper conductors

8 x Overall Diameter

Construction Parameters


Conductor

FGD300 1VVMAV-R

No. of Cores xCross Section

Class of Conductor

Nominal Insulation Thickness

Nominal
Bedding
Thickness

Nominal Armour Wire
Diameter

Nominal Sheath Thickness

Approx. Overall
Diameter

Approx. Weight

No.xmm2



mm

mm

mm

mm

mm

kg/km

1x50

2

1.4

0.8

1.25

1.5

19.1

820

1x70

2

1.4

0.8

1.25

1.6

21.1

1070

1x95

2

1.6

0.8

1.25

1.6

23.4

1390

1x120

2

1.6

1.0

1.6

1.7

26.3

1600

1x150

2

1.8

1.0

1.6

1.7

28.3

1900

1x185

2

2.0

1.0

1.6

1.8

30.8

2450

1x240

2

2.2

1.0

1.6

1.9

34.1

3100

1x300

2

2.4

1.0

1.6

1.9

37.0

3760

1x400

2

2.6

1.2

2.0

2.1

42.0

4850

1x500

2

2.8

1.2

2.0

2.1

45.6

5930

1x630

2

2.8

1.2

2.0

2.2

49.7

7390

1x800

2

2.8

1.4

2.5

2.4

55.8

9400

1x1000

2

3.0

1.4

2.5

2.5

61.0

11430

ELECTRICAL PROPERTIES

Conductor Operating Temperature

70°C

Ambient Temperature

30°C

Current-Carrying Capacities (Amp) according to BS 7671: 2008 table 4D3A


Conductor cross-sectional

area

Reference
Method C (clipped
direct)

Reference Method F (in free air or on a perforated cable tray, horizontal or vertical)

Touching

Touching

Spaced by on cable diameter

2
cables,
singlephase
a.c. or
d.c. flat

3 or 4
cables,
threephase
a.c. flat

2
cables,
singlephase
a.c. or
d.c. flat

3 cables,
threephase
a.c. flat

3 cables
threephase
a.c.
trefoil

2 cables, d.c.

2 cables, single-phase
a.c.

3 or 4
cables,
three-phase
a.c.

Horizontal

Vertical

Horizontal

Vertical

Horizontal

Vertical

1

2

3

4

5

6

7

8

9

10

11

12

mm2

A

A

A

A

A

A

A

A

A

A

A

50

193

179

205

189

181

229

216

229

217

230

212

70

245

225

259

238

231

294

279

287

272

286

263

95

296

269

313

285

280

357

340

349

332

338

313

120

342

309

360

327

324

415

396

401

383

385

357

150

393

352

413

373

373

479

458

449

429

436

405

185

447

399

469

422

425

548

525

511

489

490

456

240

525

465

550

492

501

648

622

593

568

566

528

300

594

515

624

547

567

748

719

668

640

616

578

400

687

575

723

618

657

885

851

737

707

674

632

500

763

622

805

673

731

1035

997

810

777

721

676

630

843

669

891

728

809

1218

1174

893

856

771

723

800

919

710

976

777

886

1441

1390

943

905

824

772

1000

975

737

1041

808

945

1685

1627

1008

967

872

816

Voltage Drop (Per Amp Per Meter) according to BS 7671: 2008 table 4D3B


Nominal Cross Section Area

2 cables d.c.

Ref. Methods C&F(clipped direct, on trays or in free air)

2 cables, single-phase a.c.

3 or 4 cables, three-phase a.c.

Touching

Spaced*

Trefoil and touching

Flat and touching

Flat and spaced*

1

2

3

4

5

6

7

mm2

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

　

　

r

x

z

r

x

z

r

x

z

r

x

z

r

x

z

50

0.93

0.93

0.22

0.95

0.92

0.30

0.97

0.80

0.19

0.82

0.79

0.26

0.84

0.79

0.34

0.86

70

0.63

0.64

0.21

0.68

0.66

0.29

0.72

0.55

0.18

0.58

0.57

0.25

0.62

0.59

0.32

0.68

95

0.46

0.48

0.20

0.52

0.51

0.28

0.58

0.42

0.175

0.45

0.44

0.25

0.50

0.47

0.31

0.57

120

0.36

0.39

0.195

0.43

0.42

0.28

0.50

0.33

0.170

0.37

0.36

0.24

0.43

0.40

0.30

0.50

150

0.29

0.31

0.190

0.37

0.34

0.27

0.44

0.27

0.165

0.32

0.30

0.24

0.38

0.34

0.30

0.45

185

0.23

0.26

0.190

0.32

0.29

0.27

0.39

0.22

0.160

0.27

0.25

0.23

0.34

0.29

0.29

0.41

240

0.18

0.20

0.180

0.27

0.23

0.26

0.35

0.175

0.160

0.23

0.20

0.23

0.30

0.24

0.28

0.37

300

0.145

0.160

0.180

0.24

0.19

0.26

0.32

0.140

0.155

0.21

0.165

0.22

0.28

0.20

0.28

0.34

400

0.105

0.140

0.175

0.22

0.18

0.24

0.30

0.12

0.130

0.195

0.160

0.21

0.26

0.21

0.25

0.32

500

0.086

0.120

0.170

0.21

0.165

0.23

0.29

0.105

0.145

0.18

0.145

0.20

0.25

0.19

0.24

0.30

630

0.068

0.105

0.165

0.195

0.150

0.22

0.27

0.091

0.145

0.17

0.135

0.195

0.23

0.175

0.22

0.28

800

0.053

0.095

0.160

0.185

0.145

0.21

0.25

0.082

0.140

0.160

0.125

0.180

0.22

0.170

0.195

0.26

1000

0.042

0.091

0.155

0.180

0.140

0.19

0.24

0.079

0.135

0.155

0.125

0.165

0.21

0.165

0.170

0.24

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
r = conductor resistance at operating temperature
x = reactance
z = impedance
