FIREGUARD Flame Retardant Cables

Flame Retardant Power & Control Cables

600/1000V XLPE Insulated, PVC Sheathed, Screened Power Cables (4 Cores)

FGD400 1RCVMV-R (CU/XLPE/CUTO/PVC/SWA/PVC 600/1000V Class 2)



APPLICATION

This cables are designed specifi cally to suit the broad spectrum of requirements of Variable Speed Drives and

also include features for reducing the transmission of electromagnetic interference. This range of screened

cables drastically reduce interferences from electrical noise, especially in Variable Speed Drive (VSD) applications

and are manufactured with fixed conductors. With shield conductivity of 1/10th of phase conductor conductivity,

this range of VSD cables effectively restrain radiated and conducted radio-frequency emissions.

STANDARDS

Basic design adapted to IEC 60502-1

IEC 60502-1|FGD400 1RCVMV-R

FIRE PERFORMANCE

Flame Retardance

(Single Vertical

Wire Test)**

EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE

0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-

1*; DIN VDE 0482-265-2-1*

Reduced Fire

Propagation

(Vertically-mounted

bundled wires

& cable test)**

EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-

004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-

4

Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC

compound and the cable design.

VOLTAGE RATING

600/1000V

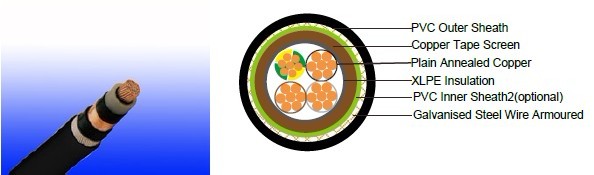

CABLE CONSTRUCTION

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.

Insulation: Extruded cross-linked XLPE compound.

Inner sheath1: PVC Compound

Screen: Overall Screen: Copper wire braiding,or Copper Tape with drain wire

Inner sheath2: PVC Compound

Armouring: Galvanised Steel Wire

Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent

and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC

60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable

design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation Colour as per BS7671

  With Earth Conductor Without Earth Conductor
2Cores - Brown, Blue
3Cores Yellow/Green, Brown, Blue Brown, Gray, Black
4Cores Yellow/Green, Brown, Gray, Black Brown, Gray, Black, Blue
5Cores Yellow/Green, Brown, Gray, Black, Blue Brown, Gray, Black, Blue, Black
Above 5 Cores Yellow/Green, Black Numbered Black Numbered


Sheath Colour: Black (other colors upon request)

Physical AND THERMAL PROPERTIES

Temperature range during operation: Max.90°C for XLPE

250°C in short-circuit for 5secs max.

Minimum bending radius: 12 x Overall Diameter (for 1.5mm2 to 300mm2)

CONSTRUCTION PARAMETERS

Conductor FGD400 1RCVMV-R
No. of Core
X
Cross
Section		 No./
Nominal
Diameter
of
Strands		 Nominal
Insulation
Thickness		 Nominal
Sheath
Thickness		 Diameter
Under
Screen		 Diameter
Over Inner
Sheath		 Armour
Wire
Diameter		 Nominal
Overall
Diameter		 Approx.
Weight
mm2 No./mm mm mm mm mm mm mm kg/km
4x1.5 7/0.53 0.7 1.8 9.7 12.1 13.9 17.7 640
4x2.5 7/0.67 0.7 1.8 10.7 13.1 14.9 18.7 730
4x4 7/0.85 0.7 1.8 12.0 14.4 16.2 20.0 870
4x6 7/1.04 0.7 1.8 13.4 15.8 18.3 22.1 1180
4x10 7/1.35 0.7 1.8 15.6 18.0 20.5 24.3 1490
4x16 7/1.70 0.7 1.8 18.1 20.5 23.7 27.5 2070
4x25 7/2.14 0.9 1.8 22.3 24.1 27.3 31.1 2790
4x35(S) 7/2.52 0.9 1.8 25.0 26.8 30.0 33.8 2940
4x50(S) 19/1.78 1.0 2.0 27.8 29.6 32.8 37.0 3500
4x70(S) 19/2.14 1.1 2.2 31.6 33.4 37.4 42.0 5000
4x95(S) 19/2.52 1.1 2.3 35.4 37.2 41.2 46.0 6300
4x120(S) 37/2.03 1.2 2.5 39.0 40.8 45.8 51.0 8200
4x150(S) 37/2.25 1.4 2.6 42.0 43.8 48.8 54.2 9600
4x185(S) 37/2.52 1.6 2.8 47.8 49.6 54.6 60.4 11500
4x240(S) 61/2.25 1.7 3.0 54.0 55.8 60.8 67.0 14400
4x300(S) 61/2.52 1.8 3.0 58.0 59.8 64.8 71.4 17200

Electrical Properties

Conductor Operating Temperature : 90°C

Ambient Temperature : 30°C

Current-Carrying Capacities (Amp)

Conductor
crosssectional
area		 Reference
Method 1 (clipped
direct)		 Reference Method 11 (on
a perforated horizontal
cable trayor Reference
Method 13 [free air] )		 In single-way
ducts		 Laid direct in ground
one
2-core
cable
single
phase
a.c. or
d.c.		 one
3-core
or
4-core
cable
3-phase
a.c.		 one 2-core
cable single
phase a.c.
or d.c.		 one 3-core
or 4-core
cable
3-phase
a.c.		 one
2-core
cable
single
phase
a.c. or
d.c.		 one
3-core or
4-core
cable
3-phase
a.c.		 one
2-core
cable
single
phase
a.c. or
d.c.		 one
3-core or
4-core
cable
3-phase
a.c.
1 2 3 4 5 6 7 8 9
mm2 A A A A A A A A
1.5 27 23 29 25 - 23 - 28
2.5 36 31 39 33 - 30 - 36
4 49 42 52 44 - 40 - 48
6 62 53 66 56 - 50 - 60
10 85 73 90 78 - 65 - 80
16 110 94 115 99 115 94 140 115
25 146 124 152 131 145 125 180 150
35 180 154 188 162 175 150 215 180
50 219 187 228 197 210 175 255 215
70 279 238 291 251 260 215 315 265
95 338 289 354 304 310 260 380 315
120 392 335 410 353 355 300 430 360
150 451 386 472 406 400 335 480 405
185 515 441 539 463 455 380 540 460
240 607 520 636 546 520 440 630 530
300 698 599 732 628 590 495 700 590

Voltage Drop (Per Amp Per Meter)

Conductor cross- sectional area 2-core cable d.c. 2 cables, single-phase a.c. 3 or 4 cables, 3-phase a.c. 2 cables, single-phase a.c. 3 or 4 cables,
3-phase a.c.
In ducts or in ground In ducts or in ground
1 2 3 4 5 6
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
1.5 31.0 31.0 27.0 31.0 25.0
2.5 19.0 19.0 16.0 19.0 15.0
4 12.0 12.0 10.0 12.0 9.7
6 7.9 7.9 6.8 7.9 6.5
10 4.7 4.7 4.0 4.7 3.9
16 2.9 2.9 2.5 2.9 2.6
    r x z r x z
25 1.850 1.350 0.160 1.900 1.600 0.140 1.650 1.900 1.600
35 1.350 1.350 0.155 1.350 1.150 0.135 1.150 1.350 1.200
50 0.980 0.990 0.155 1.000 0.860 0.135 0.870 1.000 0.870
70 0.670 0.670 0.150 0.690 0.590 0.130 0.600 0.690 0.610
95 0.490 0.500 0.150 0.520 0.430 0.130 0.450 0.520 0.450
120 0.390 0.400 0.145 0.420 0.340 0.130 0.370 0.420 0.360
150 0.310 0.320 0.145 0.350 0.280 0.125 0.300 0.350 0.300
185 0.250 0.260 0.145 0.290 0.220 0.125 0.260 0.290 0.250
240 0.195 0.200 0.140 0.240 0.175 0.125 0.210 0.240 0.210
300 0.155 0.160 0.140 0.210 0.140 0.120 0.185 0.210 0.190
