Flame Retardant Power & Control Cables
600/1000V XLPE Insulated, PVC Sheathed, Armoured Power Cables (Multicore)
FGD400 1RV-R (CU/XLPE/PVC 600/1000V Class 2)
FGD400 1RVMV-R (CU/XLPE/PVC/SWA/PVC 600/1000V Class 2)
APPLICATION
The cables are mainly used in power stations, mass transit underground passenger systems, airports,
petrochemical plants, hotels, hospitals, and high-rise buildings.
STANDARDS
Basic design adapted to IEC 60502-1; BS 5467
FIRE PERFORMANCE
Flame Retardance (Single Vertical Wire Test)** |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2- 1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30- 004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2- 4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.
VOLTAGE RATING
600/1000V

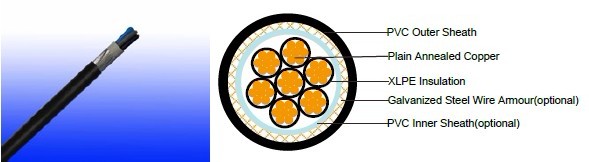

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Inner Sheath(optional): PVC Compound
Armouring(optional): Galvanized Steel Wire
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent
and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC
60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable
design. LSPVC can also be provided upon request.
COLOUR CODE
Insulation Colour as per BS7671
| With Earth Conductor | Without Earth Conductor | |
| 2Cores | - | Brown, Blue |
| 3Cores | Yellow/Green, Brown, Blue | Brown, Gray, Black |
| 4Cores | Yellow/Green, Brown, Gray, Black | Brown, Gray, Black, Blue |
| 5Cores | Yellow/Green, Brown, Gray, Black, Blue | Brown, Gray, Black, Blue, Black |
| Above 5 Cores | Yellow/Green, Black Numbered | Black Numbered |
Sheath Colour: Black (other colors upon request)
Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5secs max.
Minimum bending radius: 8 x Overall Diameter (unarmoured cable)
10 x Overall Diameter (armoured cable)
CONSTRUCTION PARAMETERS
| Conductor | FGD400 1RV-R | FGD400 1RVMV-R | ||||||
| No. of Core X Cross Section |
No./ Nominal Diameter of Strands |
Nominal Insulation Thickness | Unarmoured | Armoured | ||||
| Nominal Overall Diameter | Approx. Weight | Diameter Over Inner Sheath | Armour Wire Diameter | Nominal Overall Diameter | Approx. Weight | |||
| mm2 | No./mm | mm | mm | mm | mm | mm | mm | kg/km |
| 7Cores | ||||||||
| 7x1.5 | 7/0.53 | 0.7 | 12.4 | 225 | 11.2 | 0.9 | 16.0 | 490 |
| 7x2.5 | 7/0.67 | 0.7 | 13.8 | 303 | 12.4 | 0.9 | 17.2 | 602 |
| 7x4 | 7/0.85 | 0.7 | 15.5 | 422 | 14.1 | 1.25 | 19.8 | 871 |
| 10Cores | ||||||||
| 10x1.5 | 7/0.53 | 0.7 | 15.6 | 325 | 14.3 | 1.25 | 20.0 | 761 |
| 10x2.5 | 7/0.67 | 0.7 | 17.5 | 426 | 15.9 | 1.25 | 21.8 | 943 |
| 10x4 | 7/0.85 | 0.7 | 19.7 | 597 | 18.5 | 1.25 | 24.4 | 1213 |
| 12Cores | ||||||||
| 12x1.5 | 7/0.53 | 0.7 | 16.2 | 370 | 14.8 | 1.25 | 20.5 | 827 |
| 12x2.5 | 7/0.67 | 0.7 | 18.1 | 489 | 16.5 | 1.25 | 22.4 | 1020 |
| 12x4 | 7/0.85 | 0.7 | 20.3 | 690 | 19.1 | 1.6 | 25.7 | 1462 |
| 19Cores | ||||||||
| 19x1.5 | 7/0.53 | 0.7 | 19.0 | 516 | 17.4 | 1.6 | 24.0 | 1186 |
| 19x2.5 | 7/0.67 | 0.7 | 21.3 | 725 | 19.9 | 1.6 | 26.7 | 1498 |
| 19x4 | 7/0.85 | 0.7 | 24.0 | 1037 | 22.6 | 1.6 | 29.4 | 1931 |
| 27Cores | ||||||||
| 27x1.5 | 7/0.53 | 0.7 | 22.7 | 712 | 21.3 | 1.6 | 28.1 | 1537 |
| 27x2.5 | 7/0.67 | 0.7 | 25.5 | 1004 | 23.9 | 1.6 | 30.9 | 1933 |
| 27x4 | 7/0.85 | 0.7 | 28.8 | 1445 | 27.2 | 1.6 | 34.4 | 2532 |
| 37cores | ||||||||
| 37x1.5 | 7/0.53 | 0.7 | 25.5 | 941 | 23.9 | 1.6 | 30.7 | 1856 |
| 37x2.5 | 7/0.67 | 0.7 | 28.7 | 1334 | 26.9 | 1.6 | 33.9 | 2372 |
| 37x4 | 7/0.85 | 0.7 | 32.5 | 1932 | 31.1 | 2.0 | 39.3 | 3448 |
| 48 Core | ||||||||
| 48x1.5 | 7/0.53 | 0.7 | 29.0 | 1186 | 27.5 | 1.6 | 34.6 | 2276 |
| 48x2.5 | 7/0.67 | 0.7 | 32.9 | 1706 | 31.3 | 2.0 | 39.6 | 3252 |
| 48x4 | 7/0.85 | 0.7 | 37.3 | 2479 | 35.7 | 2.0 | 44.2 | 4273 |
Electrical Properties
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
FGD400 1RV-R
Current-Carrying Capacities (Amp)
| Conductor cross- sectional area | Reference Method 4 (enclosed in conduit in thermally insulating wall etc) |
Reference Method 3 (enclosed in conduit on a wall or in trunking etc) |
Reference Method 1 (clipped direct) |
Reference Method 11 (on a perforated cable tray, horizontal or vertical) | Reference Method 12 (free air) | ||||||
| Horizontal flat spaced | Vertical flat spaced | Trefoil | |||||||||
| 2 cables, single- phase a.c. or d.c. | 3 or 4 cables, 3-phase a.c. |
2 cables, single- phase a.c. or d.c | 3 or 4 cables, 3-phase a.c. |
2 cables, single- phase a.c. or d.c. flat and touching | 3 or 4 cables, 3-phase a.c. flat and touching or trefoil |
2 cables, single- phase a.c. or d.c. or flat and touching | 3 or 4 cables, 3-phase a.c. flat and touching or trefoil |
2 cables, single- phase a.c. or d.c. or 3 c ables three phase |
2 cables, single- phase a.c. or d.c. or 3 cables three phase |
3 cables, trefoil 3-phase a.c. |
|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| mm2 | A | A | A | A | A | A | A | A | A | A | A |
| 1.5 | 18 | 17 | 22 | 19 | 25 | 23 | - | - | - | - | - |
| 2.5 | 24 | 23 | 30 | 26 | 34 | 31 | - | - | - | - | - |
| 4 | 33 | 30 | 40 | 35 | 46 | 41 | - | - | - | - | - |
Voltage Drop (Per Amp Per Meter)
| Nominal Cross Section Area | 2 cables d.c. | 2 cables, single-phase a.c. | 3 or 4 cables, 3-phase a.c. | |||
| Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) |
Ref. Methods 1 and 11 (clipped direct or on trays touching) | Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) |
Ref. Methods 1, | Ref. Methods 1 and 11 | ||
| 11 and 12 (in trefoil) | (Flat and touching) | |||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| mm2 | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m |
| 1.5 | 31 | 31 | 27 | 27 | 27 | 27 |
| 2.5 | 19 | 19 | 16 | 16 | 16 | 16 |
| 4 | 33 | 12 | 10 | 10 | 10 | 10 |
FGD400 1RVMV-R
Current-Carrying Capacities (Amp)
| Conductor crosssectional area |
Reference Method 1 (clipped direct) |
Reference Method 11 (on a perforated horizontal cable trayor Reference Method 13 [free air] ) |
In single-way ducts |
Laid direct in ground | ||||
| one 2-core cable single phase a.c. or d.c. |
one 3-core or 4-core cable 3-phase a.c. |
one 2-core cable single phase a.c. or d.c. |
one 3-core or 4-core cable 3-phase a.c. |
one 2-core cable single phase a.c. or d.c. |
one 3-core or 4-core cable 3-phase a.c. |
one 2-core cable single phase a.c. or d.c. |
one 3-core or 4-core cable 3-phase a.c. |
|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| mm2 | A | A | A | A | A | A | A | A |
| 1.5 | 27 | 23 | 29 | 25 | - | 23 | - | 28 |
| 2.5 | 36 | 31 | 39 | 33 | - | 30 | - | 36 |
| 4 | 49 | 42 | 52 | 44 | - | 40 | - | 48 |
Voltage Drop (Per Amp Per Meter)
| Conductor cross-sectional area | 2-core cable d.c. | 2 cables, single-phase a.c. | 3 or 4 cables, 3-phase a.c. | 2 cables, single- phase a.c. | 3 or 4 cables, 3-phase a.c. |
| In ducts or in ground | In ducts or in ground |
||||
| 1 | 2 | 3 | 4 | 5 | 6 |
| mm2 | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m |
| 1.5 | 31.0 | 31.0 | 27.0 | 31.0 | 25.0 |
| 2.5 | 19.0 | 19.0 | 16.0 | 19.0 | 15.0 |
| 4 | 12.0 | 12.0 | 10.0 | 12.0 | 9.7 |
