FIREGUARD Flame Retardant Cables | |||
Flame Retardant Power & Control Cables
600/1000V XLPE Insulated, PVC Sheathed, Double steel tape armoured Power Cables (3 Cores)
FGD400 1RVMV-R (CU/XLPE/PVC/DSTA/PVC 600/1000V Class 2)
APPLICATION
The cables are mainly used in power stations, mass transit underground passenger systems, airports,
petrochemical plants, hotels, hospitals, and high-rise buildings.
STANDARDS
Basic design adapted to IEC 60502-1
FIRE PERFORMANCE
Flame Retardance (Single Vertical Wire Test)** |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2- 1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30- 004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2- 4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.
VOLTAGE RATING
600/1000V

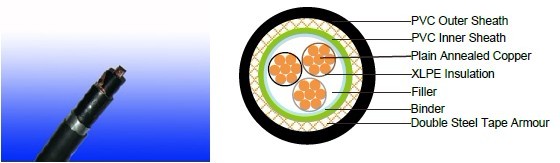

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, normal stranded or compact stranded according to IEC(EN) 60228 class
2.
Insulation: Extruded cross-linked XLPE compound.
Filler, binder and inner covering: PP, PET, PVC
Armouring: Double steel tape
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent
and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC
60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable
design. LSPVC can also be provided upon request.
COLOUR CODE
Insulation Colour as per BS7671
With Earth Conductor | Without Earth Conductor | |
2Cores | - | Brown, Blue |
3Cores | Yellow/Green, Brown, Blue | Brown, Gray, Black |
4Cores | Yellow/Green, Brown, Gray, Black | Brown, Gray, Black, Blue |
5Cores | Yellow/Green, Brown, Gray, Black, Blue | Brown, Gray, Black, Blue, Black |
Above 5 Cores | Yellow/Green, Black Numbered | Black Numbered |
Sheath Colour: Black (other colors upon request)
Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5secs max.
Minimum bending radius: 10x Overall Diameter
CONSTRUCTION PARAMETERS
Conductor | FGD400 1RVMV-R | |||||||||
No. of Core X Cross Section |
Phases | Neutral | Nominal Diameter Overall Conducrtor |
Nominal Insulation Thickness |
Nominal Steel Tape Thickness |
Nominal Sheath Thickness |
Nominal Overall Diatemer |
Approx. No./ Weight |
||
No./ Weight Nominal Diameter of Strands |
No./ Nominal Diameter of Strands |
Pha. | Neu. | Pha. | Neu. | |||||
mm2 | No/mm | No/mm | mm | mm | mm | mm | mm | mm | mm | Kg/km |
3x10+1x6 | 7/1.35 | 7/1.04 | 3.75 | 2.90 | 0.7 | 0.7 | 0.2 | 1.8 | 20.1 | 740 |
3x16+1x10 | 7/1.70 | 7/1.35 | 4.75 | 3.75 | 0.7 | 0.7 | 0.2 | 1.8 | 22.5 | 1,004 |
3x25+2x16 | 7/2.14 | 7/1.70 | 5.85 | 4.75 | 0.9 | 0.7 | 0.2 | 1.8 | 25.8 | 1,421 |
3x35+1x16 | 7/2.52 | 7/1.70 | 6.90 | 4.75 | 0.9 | 0.7 | 0.2 | 1.8 | 27.7 | 1,745 |
3x35+1x25 | 7/2.52 | 7/2.14 | 6.90 | 5.85 | 0.9 | 0.9 | 0.2 | 1.8 | 28.6 | 1,864 |
3x50+1x25 | 19/1.78 | 7/2.14 | 8.15 | 5.85 | 1.0 | 0.9 | 0.2 | 1.8 | 31.3 | 2,358 |
3x50+1x35 | 19/1.78 | 7/2.52 | 8.15 | 6.90 | 1.0 | 0.9 | 0.2 | 1.9 | 32.0 | 2.72 |
3x70+1x35 | 19/2.14 | 7/2.52 | 9.75 | 6.90 | I.1 | 0.9 | 0.2 | 2.0 | 35.9 | 3166 |
3x70+1x50 | 19/2.14 | 19/1.78 | 9.75 | 8.15 | I.1 | 1.0 | 0.2 | 2.0 | 36.8 | 3.341 |
3x95+1x50 | 19/2.52 | 19/1.78 | 11.4 | 8.15 | I.1 | 1.0 | 0.5 | 2.1 | 41.4 | 4,611 |
3x120+1x70 | 37/2.03 | 19/2.14 | 12.8 | 9.75 | 1.2 | I.1 | 0.5 | 2.3 | 45.6 | 5682 |
3x150+1x95 | 37/2.25 | 19/2.52 | 14.3 | 11.4 | 1.4 | I.1 | 0.5 | 2.4 | 50.8 | 7,072 |
3x150+1x120 | 37/2.25 | 37/2.03 | 14.3 | 12.8 | 1.4 | 1.2 | 0.5 | 2.5 | 51.8 | 7,357 |
3x185+1x95 | 37/2.52 | 19/2.52 | 15.9 | 11.4 | 1.6 | I.1 | 0.5 | 2.6 | 54.7 | 8,348 |
3x185+1x120 | 37/2.52 | 37/2.03 | 15.9 | 12.8 | 1.6 | 1.2 | 0.5 | 2.6 | 55.8 | 8638 |
3x240+1x120 | 61/2.25 | 37/2.03 | 18.2 | 12.8 | 1.7 | 1.2 | 0.5 | 2.7 | 61.0 | 10,660 |
3x240+1x150 | 61/2.25 | 37/2.25 | 18.2 | 14.3 | 1.7 | 1.4 | 0.5 | 2.8 | 62.2 | 11024 |
3x300+1x150 | 61/2.52 | 37/2.25 | 20.4 | 14.3 | 1.8 | 1.4 | 0.5 | 2.9 | 66.8 | 12,809 |
3x300+1x185 | 61/2.52 | 37/2.52 | 20.4 | 15.9 | 1.8 | 1.6 | 0.5 | 3.0 | 68.1 | 13,256 |
1) *All conductors in accordance with lEC 60228. Compact shape (Com.) or non-compact depending on order.
2) Beside above list we can also provide others size depend on customer's requirement.
Electrical Properties
No. of Core X Cross Section |
Conductor | Max.DC resistance of conductor @20°C | ||||
Phases | Neutral | Dia.Overall Conducrtor |
||||
No./Nominal Diameter of Strands |
No./Nominal Diameter of Strands |
Pha. | Neu. | Pha. | Neu. | |
mm2 | No/mm | No/mm | mm | mm | Ω/km | Ω/km |
3x10+1x6 | 7/1.35 | 7/1.04 | 3.75 | 2.90 | 1.83 | 3.08 |
3x16+1x10 | 7/1.70 | 7/1.35 | 4.75 | 3.75 | 1.15 | 1.83 |
3x25+2x16 | 7/2.14 | 7/1.70 | 5.85 | 4.75 | 0.727 | 1.15 |
3x35+1x16 | 7/2.52 | 7/1.70 | 6.90 | 4.75 | 0.524 | 1.15 |
3x35+1x25 | 7/2.52 | 7/2.14 | 6.90 | 5.85 | 0.524 | 0.727 |
3x50+1x25 | 19/1.78 | 7/2.14 | 8.15 | 5.85 | 0.387 | 0.727 |
3x50+1x35 | 19/1.78 | 7/2.52 | 8.15 | 6.90 | 0.387 | 0.524 |
3x70+1x35 | 19/2.14 | 7/2.52 | 9.75 | 6.90 | 0268 | 0.524 |
3x70+1x50 | 19/2.14 | 19/1.78 | 9.75 | 8.15 | 0268 | 0.387 |
3x95+1x50 | 19/2.52 | 19/1.78 | 11.4 | 8.15 | 0.193 | 0.387 |
3x120+1x70 | 37/2.03 | 19/2.14 | 12.8 | 9.75 | 0.153 | 0.268 |
3x150+1x95 | 37/2.25 | 19/2.52 | 14.3 | 11.4 | 0.124 | 0.193 |
3x150+1x120 | 37/2.25 | 37/2.03 | 14.3 | 12.8 | 0.124 | 0.153 |
3x185+1x95 | 37/2.52 | 19/2.52 | 15.9 | 11.4 | 0.0991 | 0.193 |
3x185+1x120 | 37/2.52 | 37/2.03 | 15.9 | 12.8 | 0.0991 | 0.153 |
3x240+1x120 | 61/2.25 | 37/2.03 | 18.2 | 12.8 | 0.0754 | 0.153 |
3x240+1x150 | 61/2.25 | 37/2.25 | 18.2 | 14.3 | 0.0754 | 0.124 |
3x300+1x150 | 61/2.52 | 37/2.25 | 20.4 | 14.3 | 0.0601 | 0.124 |
3x300+1x185 | 61/2.52 | 37/2.52 | 20.4 | 15.9 | 0.0601 | 0.0991 |
Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)
Conductor crosssectional area |
Reference Method 1 (clipped direct) |
Reference Method 11 (on a perforated horizontal cable trayor Reference Method 13 [free air] ) |
In single-way ducts |
Laid direct in ground | ||||
one 2-core cable single phase a.c. or d.c. |
one 3-core or 4-core cable 3-phase a.c. |
one 2-core cable single phase a.c. or d.c. |
one 3-core or 4-core cable 3-phase a.c. |
one 2-core cable single phase a.c. or d.c. |
one 3-core or 4-core cable 3-phase a.c. |
one 2-core cable single phase a.c. or d.c. |
one 3-core or 4-core cable 3-phase a.c. |
|
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
mm2 | A | A | A | A | A | A | A | A |
10 | 85 | 73 | 90 | 78 | - | 65 | - | 80 |
16 | 110 | 94 | 115 | 99 | 115 | 94 | 140 | 115 |
25 | 146 | 124 | 152 | 131 | 145 | 125 | 180 | 150 |
35 | 180 | 154 | 188 | 162 | 175 | 150 | 215 | 180 |
50 | 219 | 187 | 228 | 197 | 210 | 175 | 255 | 215 |
70 | 279 | 238 | 291 | 251 | 260 | 215 | 315 | 265 |
95 | 338 | 289 | 354 | 304 | 310 | 260 | 380 | 315 |
120 | 392 | 335 | 410 | 353 | 355 | 300 | 430 | 360 |
150 | 451 | 386 | 472 | 406 | 400 | 335 | 480 | 405 |
185 | 515 | 441 | 539 | 463 | 455 | 380 | 540 | 460 |
240 | 607 | 520 | 636 | 546 | 520 | 440 | 630 | 530 |
300 | 698 | 599 | 732 | 628 | 590 | 495 | 700 | 590 |
Voltage Drop (Per Amp Per Meter)
Conductor cross-sectional area | 2-core cable d.c. | 2 cables, single-phase a.c. | 3 or 4 cables, 3-phase a.c. | 2 cables, single- phase a.c. | 3 or 4 cables, 3-phase a.c. |
||||
In ducts or in ground | In ducts or in ground |
||||||||
1 | 2 | 3 | 4 | 5 | 6 | ||||
mm2 | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m | ||||
6 | 7.9 | 7.9 | 6.8 | 7.9 | 6.5 | ||||
10 | 4.7 | 4.7 | 4.0 | 4.7 | 3.9 | ||||
16 | 2.9 | 2.9 | 2.5 | 2.9 | 2.6 | ||||
r | x | z | r | x | z | ||||
25 | 1.850 | 1.350 | 0.160 | 1.900 | 1.600 | 0.140 | 1.650 | 1.900 | 1.600 |
35 | 1.350 | 1.350 | 0.155 | 1.350 | 1.150 | 0.135 | 1.150 | 1.350 | 1.200 |
50 | 0.980 | 0.990 | 0.155 | 1.000 | 0.860 | 0.135 | 0.870 | 1.000 | 0.870 |
70 | 0.670 | 0.670 | 0.150 | 0.690 | 0.590 | 0.130 | 0.600 | 0.690 | 0.610 |
95 | 0.490 | 0.500 | 0.150 | 0.520 | 0.430 | 0.130 | 0.450 | 0.520 | 0.450 |
120 | 0.390 | 0.400 | 0.145 | 0.420 | 0.340 | 0.130 | 0.370 | 0.420 | 0.360 |
150 | 0.310 | 0.320 | 0.145 | 0.350 | 0.280 | 0.125 | 0.300 | 0.350 | 0.300 |
185 | 0.250 | 0.260 | 0.145 | 0.290 | 0.220 | 0.125 | 0.260 | 0.290 | 0.250 |
240 | 0.195 | 0.200 | 0.140 | 0.240 | 0.175 | 0.125 | 0.210 | 0.240 | 0.210 |
300 | 0.155 | 0.160 | 0.140 | 0.210 | 0.140 | 0.120 | 0.185 | 0.210 | 0.190 |
400 | 0.120 | 0.130 | 0.140 | 0.190 | 0.115 | 0.120 | 0.165 | 0.190 | 0.180 |
