FIREGUARD Flame Retardant Cables



Fire retardant cable(Fireguard)

600/1000V PVC Insulated, PVC Sheathed, Armoured Power Cables to BS 6346 (2-5 Cores)

FGD400 1VVMV-R (CU/PVC/PVC/SWA/PVC 600/1000V Class 2)

Application

The cables are intended for use in fixed installations in industrial areas, buildings and similar applications.

Standards

Basic design to BS 6346

FGD400 1VVMV-R (CU/PVC/PVC/SWA/PVC 600/1000V Class 2)

Fire Performance

Flame Retardance (Single Vertical Wire Test)

BS EN 50265-2-1

Voltage Rating

600/1000V

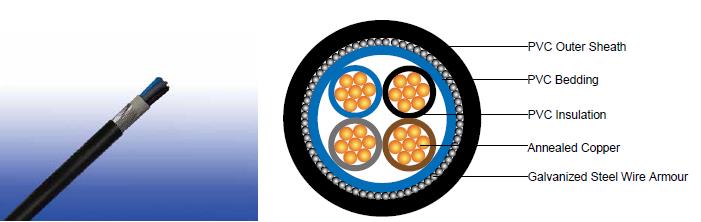

Cable Construction

Conductor：Annealed copper wire, stranded according to BS 6360 class 2.

Insulation：PVC TI 1 according to BS 7655-3.1.

Bedding：Extruded PVC or taped bedding comprising two or more layers of PVC tape or other synthetic tape (for

cables having a nominal conductor area of 16mm² and above).

Armouring：Galvanized steel wire

Outer Sheath：PVC TM 1 according to BS 7655-4.1.

Outer Sheath Option：UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite

properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL

1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can

also be provided upon request.

Colour Code

Insulation Colour

Two-core: Brown, blue
Three-core: Brown, black, grey
Four-core: Blue, brown, black, grey
Five-core: Green-and-yellow, blue, brown, black, grey

Sheath Colour

Black (other colours upon request)

Physical AND THERMAL PROPERTIES

Maximum temperature range during operation (PVC)

70°C

Maximum short circuit temperature (5 Seconds)

160°C

Minimum bending radius

Circular copper conductors

6 x Overall Diameter

Shaped copper conductors

8 x Overall Diameter

Construction Parameters

Conductor

FGD400 1VVMV-R

No. of Cores x Cross Section

Class of Conductor

Nominal Insulation Thickness

Nominal Bedding Thickness

Nominal Armour Wire Diameter

Nominal Sheath Thickness

Approx. Overall Diameter

Approx. Weight

Extruded Bedding

Taped Bedding

No.xmm²

　

mm

mm

mm

mm

mm

mm

kg/km

2 Cores

2x1.5a

2

0.6

0.8

0.9

1.4

12.3

-

278

2x2.5a

2

0.7

0.8

0.9

1.4

13.6

-

355

2x4.0a

2

0.8

0.8

0.9

1.4

15.1

-

437

2x6.0a

2

0.8

0.8

0.9

1.5

16.5

-

524

2x10a

2

1.0

0.8

1.25

1.6

20.1

-

835

2x16a

2

1.0

0.8

1.25

1.6

21.9

21.9

1045

2x25b

2

1.2

1.0

1.6

1.7

23.0

22.6

1535

2x25a

2

1.2

1.0

1.6

1.7

26.7

26.3

1608

2x35b

2

1.2

1.0

1.6

1.8

24.8

24.4

1839

2x35a

2

1.2

1.0

1.6

1.8

29.2

28.8

1941

2x50b

2

1.4

1.0

1.6

1.9

27.8

27.4

1364

2x70b

2

1.4

1.0

1.6

1.9

30.4

30.0

2328

2x95b

2

1.6

1.2

2.0

2.1

35.5

34.7

3759

2x120b

2

1.6

1.2

2.0

2.2

38.0

37.2

3217

2x150b

2

1.8

1.2

2.0

2.3

41.3

40.5

3732

2x185b

2

2.0

1.4

2.5

2.4

46.4

45.2

6669

2x240b

2

2.2

1.4

2.5

2.5

51.2

50.0

6432

2x300b

2

2.4

1.6

2.5

2.7

56.4

54.8

7680

2x400b

2

2.6

1.6

2.5

2.9

61.9

60.3

12535

3 Cores

3x1.5a

2

0.6

0.8

0.9

1.4

12.8

-

311

3x2.5a

2

0.7

0.8

0.9

1.4

14.1

-

405

3x4.0a

2

0.8

0.8

0.9

1.4

15.8

-

510

3x6.0a

2

0.8

0.8

1.25

1.5

18.0

-

727

3x10a

2

1.0

0.8

1.25

1.6

21.2

-

998

3x16a

2

1.0

0.8

1.25

1.6

23.1

23.1

1291

3x25b

2

1.2

1.0

1.6

1.7

25.0

24.6

1879

3x25a

2

1.2

1.0

1.6

1.7

28.2

27.8

1989

3x35b

2

1.2

1.0

1.6

1.8

27.1

26.7

2286

3x35a

2

1.2

1.0

1.6

1.8

30.8

30.4

2439

3x50b

2

1.4

1.0

1.6

1.9

30.5

30.1

1638

3x70b

2

1.4

1.2

2.0

2.0

35.0

34.2

3272

3x95b

2

1.6

1.2

2.0

2.1

39.3

38.5

4789

3x120b

2

1.6

1.2

2.0

2.2

42.2

41.4

4068

3x150b

2

1.8

1.4

2.5

2.4

47.5

46.3

5231

3x185b

2

2.0

1.4

2.5

2.5

51.9

50.7

8660

3x240b

2

2.2

1.6

2.5

2.6

57.8

56.2

8395

3x300b

2

2.4

1.6

2.5

2.8

63.2

61.6

10006

3x400b

2

2.6

1.6

2.5

3.0

69.6

68.0

16856

4 Cores

　

4x1.5a

2

0.6

0.8

0.9

1.4

13.5

-

353

4x2.5a

2

0.7

0.8

0.9

1.4

15.0

-

466

4x4.0a

2

0.8

0.8

1.25

1.5

17.8

-

708

4x6.0a

2

0.8

0.8

1.25

1.5

19.2

-

850

4x10a

2

1.0

0.8

1.25

1.6

22.8

-

1186

4x16a

2

1.0

1.0

1.6

1.7

26.3

25.9

1751

4x25b

2

1.2

1.0

1.6

1.8

27.8

27.4

2254

4x25a

2

1.2

1.0

1.6

1.8

30.7

30.3

2401

4x35b

2

1.2

1.0

1.6

1.9

30.3

29.9

2769

4x35a

2

1.2

1.0

1.6

1.9

33.7

33.3

2972

4x50b

2

1.4

1.2

2.0

2.0

35.4

34.6

2198

4x70b

2

1.4

1.2

2.0

2.1

39.2

38.4

3961

4x95b

2

1.6

1.2

2.0

2.2

44.3

43.5

5891

4x120b

2

1.6

1.4

2.5

2.4

49.3

48.1

5437

4x150b

2

1.8

1.4

2.5

2.5

53.6

52.4

6357

4x185b

2

2.0

1.6

2.5

2.6

59.0

57.4

10827

4x240b

2

2.2

1.6

2.5

2.8

65.7

64.1

10363

4x300b

2

2.4

1.6

2.5

3.0

72.0

70.4

12420

4x400b

2

2.6

1.8

3.15

3.3

81.3

79.3

22477

5 Cores

5x1.5a

2

0.6

0.8

0.9

1.4

14.3

-

396

5x2.5a

2

0.7

0.8

0.9

1.5

16.3

-

538

5x4.0a

2

0.8

0.8

1.25

1.5

19.0

-

807

5x6.0a

2

0.8

0.8

1.25

1.6

20.9

-

987

5x10a

2

1.0

1.0

1.6

1.7

25.8

-

1581

5x16a

2

1.0

1.0

1.6

1.7

28.4

28.0

2039

5x25a

2

1.2

1.0

1.6

1.9

33.5

33.1

2840

5x35a

2

1.2

1.0

1.6

1.9

36.6

36.2

3518

5x50a

2

1.4

1.2

2.0

2.1

43.0

42.2

4881

5x70a

2

1.4

1.2

2.0

2.2

48.1

47.3

6325

a Circular or compacted circular stranded conductor (class 2)
b Shaped stranded conductor (class 2)
ELECTRICAL PROPERTIES

Conductor Operating Temperature

70°C

Ambient Temperature

30°C

Current-Carrying Capacities (Amp) according to BS 7671: 2008 table 4D4A


Conductor crosssectional
area

Reference Method C (clipped direct)

Reference Method E (in free air
or on a perforated cable tray,
horizontal or vertical)

Reference Method D (direct in in
groud or in ducting in groud. in or
around buildings)

1 two-core cable*,
single-phase a.c.
or d.c.

1 three-or four
core cable*,
three-phase a.c.

1 two-core
cable*, singlephase
a.c. or
d.c.

1 three-or four
core cable*,
three-phase a.c.

1 two-core cable*,
single-phase a.c.
or d.c.

1 three-or four
core cable*, threephase
a.c.

1

2

3

4

5

6

7

mm2

A

A

A

A

A

A

1.5

21

18

22

19

22

18

2.5

28

25

31

26

29

24

4.0

38

33

41

35

37

30

6.0

49

42

53

45

46

38

10

67

58

72

62

60

50

16

89

77

97

83

78

64

25

118

102

128

110

99

82

35

145

125

157

135

119

98

50

175

151

190

163

140

116

70

222

192

241

207

173

143

95

269

231

291

251

204

169

120

310

267

336

290

231

192

150

356

306

386

332

261

217

185

405

348

439

378

292

243

240

476

409

516

445

336

280

300

547

469

592

510

379

316

400

621

540

683

590

-

-

Voltage Drop (Per Amp Per Meter) according to BS 7671: 2008 table 4D4B


Nominal Cross Section  Area

Two-core cables d.c.

Two-core cable, single-phase a.c.

Three- or four-core cable, three-phase a.c.

1

2

3

4

mm2

mV/A/m

mV/A/m

mV/A/m

1.5

29

29

25

2.5

18

18

15

4.0

11

11

9.5

6.0

7.3

7.3

6.4

10

4.4

4.4

3.8

16

2.8

2.8

2.4

　

　

r

x

z

r

x

z

25

1.75

1.75

0.170

1.75

1.50

0.145

1.50

35

1.25

1.25

0.165

1.25

1.10

0.145

1.10

50

0.93

0.93

0.165

0.94

0.80

0.140

0.81

70

0.63

0.63

0.160

0.65

0.55

0.140

0.57

95

0.46

0.47

0.155

0.50

0.41

0.135

0.43

120

0.36

0.38

0.155

0.41

0.33

0.135

0.35

150

0.29

0.30

0.155

0.34

0.26

0.130

0.29

185

0.23

0.25

0.150

0.29

0.21

0.130

0.25

240

0.180

0.190

0.150

0.24

0.165

0.130

0.21

300

0.145

0.155

0.145

0.21

0.135

0.130

0.185

400

0.105

0.115

0.145

0.185

0.100

0.125

0.160

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
r = conductor resistance at operating temperature
x = reactance
z = impedance
