FIREGUARD Flame Retardant Cables


Fire retardant cable(Fireguard)

600/1000V XLPE Insulated, PVC Sheathed, Armoured Power Cables to IEC 60502 (Single Core)

FGD300 1RVMAV-R (CU/XLPE/PVC/AWA/PVC 600/1000V Class 2)

VDE Code: N2XRY

Application

The cables are mainly used in power stations, mass transit underground passenger systems, airports,

petrochemical plants, hotels, hospitals, and high-rise buildings.This product type is TUV approved.

Standards

Basic design to to IEC 60502-1

FGD300 1RVMAV-R (CU/XLPE/PVC/AWA/PVC 600/1000V Class 2)

Approvals

TUV Certification (Z1 17 01 98200 004)

Fire Performance

Flame Retardance (Single Vertical Wire Test)

IEC 60332-1

Voltage Rating

600/1000V

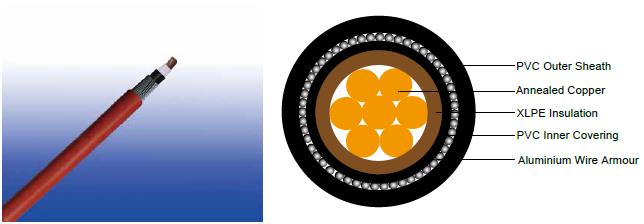

Cable Construction

Conductor :Annealed copper wire, stranded according to IEC 60228 class 2.

Insulation:XLPE according to IEC 60502-1.

Inner Covering:Extruded PVC or polymeric compound.

Armouring:Aluminium wire

Outer Sheath:Extruded PVC Type ST1/ST2 according to IEC 60502-1.

Outer Sheath Option:UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite

properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL

1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can

also be provided upon request.

Colour Code

Insulation Colour

Brown or blue, other colours can be offered upon request.

Sheath Colour

Black, other colours can be offered upon request.

Mechanical and Electrical Properties

Maximum temperature range during operation

80°C (For ST1 Sheath); 90°C (For ST2 Sheath)

Maximum short circuit temperature (5 Seconds)

 250°C



Minimum bending radius





Circular copper conductors

6 x Overall Diameter



Shaped copper conductors

8 x Overall Diameter

Construction Parameters

Conductor

FGD300 1RVMAV-R

No. of Cores xCross Section

Class of Conductor

Nominal Insulation Thickness

Nominal Inner Covering
Thickness

Nominal Armour Wire
Diameter

Nominal Sheath Thickness

Approx. Overall
Diameter

Approx. Weight

No.xmm2



mm

mm

mm

mm

mm

kg/km

1x1.5

2

0.7

1.0

0.8

1.8

10.2

150

1x2.5

2

0.7

1.0

0.8

1.8

10.6

169

1x4.0

2

0.7

1.0

0.8

1.8

11.2

196

1x6.0

2

0.7

1.0

0.8

1.8

11.7

228

1x10

2

0.7

1.0

0.8

1.8

12.7

290

1x16

2

0.7

1.0

0.8

1.8

13.7

372

1x25

2

0.9

1.0

0.8

1.8

15.4

507

1x35

2

0.9

1.0

1.25

1.8

17.5

681

1x50

2

1.0

1.0

1.25

1.8

19.0

848

1x70

2

1.1

1.0

1.25

1.8

21.0

1116

1x95

2

1.1

1.0

1.6

1.8

24.0

1511

1x120

2

1.2

1.0

1.6

1.8

25.8

1821

1x150

2

1.4

1.0

1.6

1.8

27.8

2165

1x185

2

1.6

1.0

1.6

1.8

30.4

2655

1x240

2

1.7

1.0

1.6

1.9

33.5

3352

1x300

2

1.8

1.0

2.0

2.0

37.5

4224

1x400

2

2.0

1.2

2.0

2.2

41.3

5263

1x500

2

2.2

1.2

2.0

2.3

44.2

7379

1x630

2

2.4

1.2

2.5

2.4

49.8

9611

1x800

2

2.6

1.4

2.5

2.6

55.3

11896

1x1000

2

2.8

1.4

2.5

2.7

60.4

14467

ELECTRICAL PROPERTIES

Conductor Operating Temperature

90°C

Ambient Temperature

30°C

Current-Carrying Capacities (Amp) according to BS 7671: 2008 table 4E3A


Conductor cross-sectional

area

Reference
Method C (clipped
direct)

Reference Method F (in free air or on a perforated cable tray, horizontal or vertical)

Touching

Touching

Spaced by on cable diameter

2
cables,
singlephase
a.c. or
d.c. flat

3 or 4
cables,
threephase
a.c. flat

2
cables,
singlephase
a.c. or
d.c. flat

3 or 4
cables,
threephase
a.c. flat

3 cables
threephase
a.c.
trefoil

2 cables, d.c.

2 cables, single-phase
a.c.

3 or 4
cables,
three-phase
a.c.

Horizontal

Vertical

Horizontal

Vertical

Horizontal

Vertical

1

2

3

4

5

6

7

8

9

10

11

12

mm2

A

A

A

A

A

A

A

A

A

A

A

50

237

220

253

232

222

284

270

282

266

288

266

70

303

277

322

293

285

356

349

357

337

358

331

95

367

333

389

352

346

446

426

436

412

425

393

120

425

383

449

405

402

519

497

504

477

485

449

150

488

437

516

462

463

600

575

566

539

549

510

185

557

496

587

524

529

688

660

643

614

618

574

240

656

579

689

612

625

815

782

749

714

715

666

300

755

662

792

700

720

943

906

842

805

810

755

400

853

717

899

767

815

1137

1094

929

889

848

797

500

962

791

1016

851

918

1314

1266

1032

989

923

871

630

1082

861

1146

935

1027

1528

1474

1139

1092

992

940

800

1170

904

1246

987

1119

1809

1744

1204

1155

1042

978

1000

1261

961

1345

1055

1214

2100

2026

1289

1238

1110

1041

Voltage Drop (Per Amp Per Meter) according to BS 7671: 2008 table 4E3B


Nominal Cross Section Area

2 cables d.c.

Ref. Methods C&F(clipped direct, on trays or in free air)

2 cables, single-phase a.c.

3 or 4 cables, three-phase a.c.

Touching

Spaced*

Trefoil and touching

Flat and touching

Flat and spaced*

1

2

3

4

5

6

7

mm2

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

　

　

r

x

z

r

x

z

r

x

z

r

x

z

r

x

z

50

0.98

0.99

0.21

1.0

0.98

0.29

1.0

0.86

0.18

0.87

0.64

0.25

0.88

0.84

0.33

0.9

70

0.67

0.68

0.20

0.71

0.69

0.29

0.75

0.59

0.170

0.62

0.60

0.25

0.65

0.62

0.32

0.70

95

0.49

0.51

0.195

0.55

0.53

0.28

0.60

0.44

0.170

0.47

0.46

0.24

0.52

0.49

0.31

0.58

120

0.39

0.41

0.190

0.45

0.43

0.27

0.51

0.35

0.165

0.39

0.38

0.24

0.44

0.41

0.30

0.51

150

0.31

0.33

0.185

0.38

0.36

0.27

0.45

0.29

0.160

0.33

0.31

0.23

0.39

0.34

0.29

0.45

185

0.25

0.27

0.185

0.33

0.30

0.26

0.40

0.23

0.160

0.28

0.26

0.23

0.34

0.29

0.29

0.41

240

0.195

0.21

0.180

0.28

0.24

0.26

0.35

0.180

0.155

0.24

0.21

0.22

0.30

0.24

0.28

0.37

300

0.155

0.17

0.175

0.25

0.195

0.25

0.32

0.145

0.150

0.21

0.170

0.22

0.28

0.20

0.27

0.34

400

0.115

0.145

0.170

0.22

0.180

0.24

0.30

0.125

0.150

0.195

0.160

0.21

0.27

0.20

0.27

0.33

500

0.093

0.125

0.170

0.21

0.165

0.24

0.29

0.105

0.145

0.180

0.145

0.20

0.25

0.190

0.24

0.31

630

0.073

0.105

0.165

0.195

0.150

0.23

0.27

0.092

0.145

0.170

0.135

0.195

0.24

0.175

0.23

0.29

800

0.056

0.090

0.160

0.190

0.145

0.23

0.27

0.086

0.140

0.165

0.130

0.180

0.23

0.175

0.195

0.26

1000

0.045

0.092

0.155

0.180

0.140

0.21

0.25

0.080

0.135

0.155

0.125

0.170

0.21

0.165

0.180

0.24

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
r = conductor resistance at operating temperature
x = reactance
z = impedance
