Flame Retardant Coaxial Cables
Flame Retardant RG6 A/U Coaxial cables
APPLICATION
The cables are designed for CCTV, security, smoke detection and evacuation monitoring applications, where
continued functionality is required during a fire situation. Due to the zero halogen low smoke construction, this
cable is ideal for use in public, commercial and industrial environments.
STANDARDS
Basic design adapted to MIL-C-17
FIRE PERFORMANCE
Flame Retardance (Single Vertical Wire Test)** |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2- 1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30- 004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2- 4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

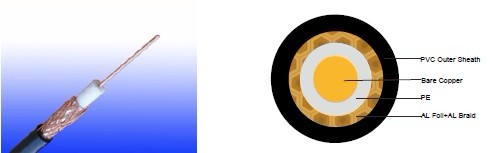

CABLE CONSTRUCTION
Conductors: Bare copper copper wire, solid according to IEC(EN) 60228 class 1.
Insulation: Foamed PE compound.
Overall Screen: Aluminium foil(100%)+Aluminium braid (70%)
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent
and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC
60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable
design. LSPVC can also be provided upon request.
Physical AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C - +70°C
Temperature Range During Installation (Mobile State): -5°C - +60°C
Minimum Bending Radius: 8 X Overall Diameter
Electrical Properties
| IMPEDANCE | 75±5Ω |
| CAPACITANCE | 54 NF/KM |
| Velocity ratio(%) | 82 |
| Insulation resistance | >5000 Mohm.Km |
| Shield coverage | AL FOIL(100%)+AL 70% |
| DC resistance | |
| Inner conductor | 23.1 Ω/km |
| Outer conductor | 31 Ω/km |
Attenuation
| Frequency(MHz) | Attenuation (dB/100 m) | Attenuation (dB/100ft) |
| 50 | 5.0 | 1.5 |
| 100 | 6.4 | 1.96 |
| 200 | 9.2 | 2.8 |
| 500 | 14.5 | 4.4 |
| 600 | 15.9 | 4.9 |
| 800 | 17.7 | 5.4 |
| 1000 | 21.9 | 6.7 |
| 1350 | 24.9 | 7.6 |
| 1750 | 29.0 | 8.8 |
| 2050 | 33.1 | 10.1 |
| 2400 | 36.4 | 11.1 |
Return Loss
| Frequency(MHz) | Return Loss (dB) |
| 30-300 | >28dB |
| 300-600 | >24dB |
| 600-900 | >22dB |
CONSTRUCTION PARAMETERS
| Cable Code |
Conductor Diameter |
Nominal Insulation Diameter | Nominal Screen No.x Diameter |
Nominal Overall Diameter | Approx. Weight |
| mm | mm | No. x mm | mm | kg/km | |
| FGD RG6 A/U | 1.02 | 4.57 ± 0.20 | 96 x 0.12 | 7.00 | 81.6 |
