Firetox Flame Retardant Cables
300/500V XLPE Insulated, LSZH Sheathed, Screened Power Cables (2-4cores)
FTX200 05ROZ1-R (CU/XLPE/OSCR/LSZH 300/500V Class 2)
Application
The cables are mainly used in power stations, mass transit underground passenger systems, airports,
petrochemical plants, hotels, hospitals, and high-rise buildings.
Standards
Basic design to BS 5308
Fire Performance
Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2- 1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30- 004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2- 4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268- 1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.
Voltage Rating
300/500V

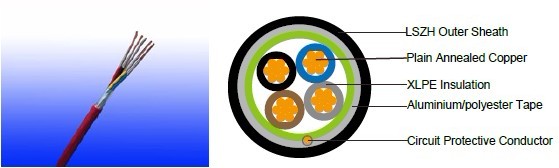

Cable Construction
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Extruded cross-linked XLPE compound.
Filler, binder(if any): PP, Mylar tape
Circuit Protective Conductor: Annealed plain copper (class 2)
Overall Screen: Aluminium/polyester tape
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound
type SW2-SW4 as per BS 7655-2.6 can be offered.)
Colour Code
Insulation colour as per bs7671
| with earth conductor | without earth conductor | |
| 2Cores | - | Brown,Blue |
| 3Cores | Yellow/Green,Brown,Blue | Brown,Gray,Black |
| 4Cores | Yellow/Green,Brown,Gray,Black | Brown,Gray,Black,Blue |
| 5Cores | Yellow/Green,Brown,Gray,Black,Blue | Brown,Gray,Black,Blue,Black |
| above 5 Cores | Yellow/Green,Black Numbered | Black Numbered |
Physical And Thermal Properties
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5s max.
Minimum bending radius: 6 x Overall Diameter
Construction Parameters
| Conductor | FTX200 05ROZ1-R | |||||||
| No. Of
Core X Cross Section |
No./
Nominal Diameter Of Strands |
Nominal
Overall Diameter Conductor |
Nominal
Insulation Thickness |
Cross-
Section Area Of Circuit Protective Conductor |
Nominal
Sheath Thickness |
Nominal Overall Diameter |
Max.Dc
Resistance Of Conductor @20°C |
Approx. Weight |
| Noxmm2 | No./mm | mm | mm | mm2 | mm | mm | Ω/km | kg/km |
| 2x1.0 | 7/0.44 | 1.32 | 0.6 | 1.0 | 0.9 | 8.1 | 18.1 | 79 |
| 2x1.5 | 7/0.53 | 1.59 | 0.7 | 1.5 | 0.9 | 9.1 | 12.1 | 102 |
| 2x2.5 | 7/0.67 | 2.01 | 0.8 | 2.5 | 1.0 | 10.5 | 7.41 | 146 |
| 2x4.0 | 7I0.85 | 2.55 | 0.8 | 4.0 | 1.1 | 11.8 | 4.61 | 205 |
| 3x1.0 | 7I0.44 | 1.32 | 0.6 | 1.0 | 0.9 | 8.6 | 18.1 | 98 |
| 3x1.5 | 7I0.53 | 1.59 | 0.7 | 1.5 | 0.9 | 9.6 | 12.1 | 129 |
| 3x2.5 | 7I0.67 | 2.01 | 0.8 | 2.5 | 1.0 | 11.1 | 7.41 | 185 |
| 3x4.0 | 7I0.85 | 2.55 | 0.8 | 4.0 | 1.1 | 12.5 | 4.61 | 262 |
| 4x1.0 | 7I0.44 | 132 | 0.6 | 1.0 | 1.0 | 9.5 | 18.1 | 123 |
| 4x1.5 | 7I0.53 | 1.59 | 0.7 | 1.5 | 1.0 | 10.6 | 12.1 | 162 |
| 4x2.5 | 7I0.67 | 2.01 | 0.8 | 2.5 | 1.1 | 12.3 | 7.41 | 233 |
| 4x4.0 | 7I0.85 | 2.55 | 0.8 | 4.0 | 1.2 | 13.9 | 4.61 | 329 |
Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)
| Conductor cross- sectional area | Reference method 4 (enclosed in conduit in thermally insulating wall etc) |
Reference method 3 (enclosed in conduit on a wall or in trunking etc) |
Reference method 1 (clipped direct) |
Reference method 11 (on a perforated cable tray, horizontal or vertical) | Reference method 12 (free air) | ||||||
| Horizontal flat spaced | Vertical flat spaced | Trefoil | |||||||||
| 2 cables, single- phase a.c. or d.c. | 3 or 4 cables, 3-phase a.c. |
2 cables, single- phase a.c. or d.c | 3 or 4 cables, 3-phase a.c. |
2 cables, single- phase a.c. or d.c. flat and touching | 3 or 4 cables, 3-phase a.c. flat and touching or trefoil |
2 cables, single- phase a.c. or d.c. or flat and touching | 3 or 4 cables, 3-phase a.c. flat and touching or trefoil |
2 cables, single- phase a.c. or d.c. or 3 c ables three phase |
2 cables, single- phase a.c. or d.c. or 3 cables three phase |
3 cables, trefoil 3-phase a.c. |
|
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| mm2 | A | A | A | A | A | A | A | A | A | A | A |
| 1.5 | 18 | 17 | 22 | 19 | 25 | 23 | - | - | - | - | - |
| 2.5 | 24 | 23 | 30 | 26 | 34 | 31 | - | - | - | - | - |
| 4 | 33 | 30 | 40 | 35 | 46 | 41 | - | - | - | - | - |
| Nominal Cross Section Area |
2 cables d.c. |
2 cables, single-phase a.c. | 3 or 4 cables, 3-phase a.c. | |||
| Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) |
Ref. Methods 1 and 11 (clipped direct or on trays touching) |
Ref. Methods 3 and 4 (enclosed in conduit etc, in or on a wall) |
Ref. Methods 1, 11 and 12 (in trefoil) |
Ref. Methods 1 and 11(Flat and touching) |
||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| mm2 | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m |
| 1.5 | 31 | 31 | 27 | 27 | 27 | 27 |
| 2.5 | 19 | 19 | 16 | 16 | 16 | 16 |
| 4 | 33 | 12 | 10 | 10 | 10 | 10 |
