Flame Retardant Coaxial Cables
Flame Retardant RG59 Coaxial cables
Application:
The cables are designed for CCTV, security, smoke detection and evacuation monitoring applications, where
continued functionality is required during a fire situation. Due to the zero halogen low smoke construction, this
cable is ideal for use in public, commercial and industrial environments.
Standards
Basic design to MIL-C-17
Fire Performance
Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2- 1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30- 004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2- 4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.

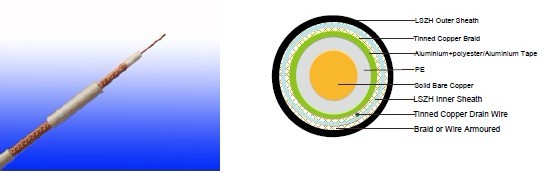

Cable Construction
Conductors: Copper clad steel, solid according to IEC(EN) 60228 class 1.
Insulation: PE compound.
Overall Screen: Plain copper wire braid
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1(Thermosetting LSZH compound
type SW2-SW4 as per BS 7655-2.6 can be offered.)
Physical And Thermal Properties
Temperature range during operation (fixed state): -30°C - +70°C
Temperature range during installation (mobile state): -5ºC - +60ºC
Minimum bending radius: 8 x Overall Diameter
Electrical Properties
| Impedance | 75±5Ω |
| Capacitance | 67 NF/Km |
| Velocity ratio(%) | 66 |
| Insulation resistance | >2000 mohm.Km |
| Shield coverage | 95% |
| DC resistance | |
| Inner conductor | 158 Ω/km |
| Outer conductor | 9.0 Ω/km |
Att enuation
| Frequency(MHz) | Attenuation (dB/100 m) | Attenuation (dB/100ft) |
| 50 | 7.4 | 2.26 |
| 100 | 10.7 | 3.26 |
| 200 | 15.7 | 4.79 |
| 400 | 22.7 | 6.92 |
| 500 | 25.7 | 7.84 |
| 600 | 28.7 | 8.75 |
| 860 | 34.8 | 10.61 |
| 1000 | 38.0 | 11.59 |
Return Loss
| Frequency(MHz) | Return Loss (dB) |
| 30-300 mHz | >31dB |
| 300-600 mHz | >28dB |
| 600-900 mHz | >24dB |
Construction Parameters
| Cable Code |
Conductor Diameter |
Nominal Insulation Diameter | Nominal Screen No.x Diameter |
Nominal Overall Diameter | Approx. Weight |
| mm | mm | No. x mm | mm | kg/km | |
| RG59 B/U | 0.58 ± 0.03 | 3.70 ± 0.10 m | 120 x 0.15 | 6.20 | 60.3 |
