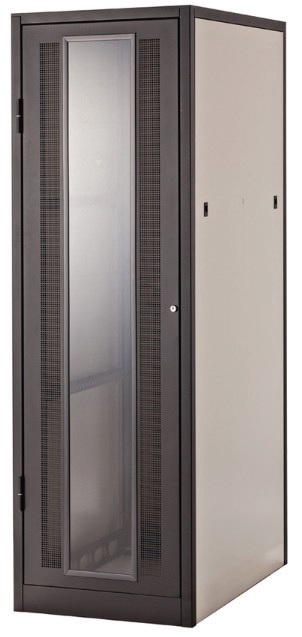

Network Cabinet

APPLICATIONS

This cabinet is widely applied in fi nance, securities and data center. New deeper file servers have lead to the

release of a 1200mm (1.2m) deep version of the rack. For ease of use and safety, the frame has been designed

so that the sides consist of 2 x 600mm panels with a vertical support. In addition, there are frame supports in

the base and stiffening in the top panel. This assures the frame will be strong and stable to support large loads

MATERIALS

Cold-rolled steel sheet. Thickness for frame 0.8mm, mounting rail 1.2mm, smoky grey glass 5mm

FEATURES

Exquisite design with precise craftsmanship.

Adjustable and heavy duty castors are available at the same time. Static loading:300KG.

The top and bottom wiring channel can be closed and adjusted.

Vented front door and rear door enable ventilation and reliable operation. Rack’s side panel can be easily

assembled.

Surface fi nish: degreasing, pickling, phosphoric, powder coating.

Adjustable feet and heavy duty castors are available at the same time , static loading: 800kg.(with adjustable

feet).

Height, width, and depth selectable, full range of optional accessories.

Available Sizes

OVERALL DIMENSION SIZE: CUSTOMIZED ACCEPTED

Capacity/U Width/ mm Depth/ mm Height/ mm CM/Width/ m CM/Depth/ m CM/Height/ m Volume/ M3
18U 600 600 988 0.63 0.63 1.02 0.40
22U 600 600 1166 0.63 0.63 1.2 0.48
27U 600 600 1388 0.63 0.63 1.42 0.56
32U 600 600 1610 0.63 0.63 1.64 0.65
