MFX400 0.6/1 kV Fire Barriers + HEPR Insulated, LSOH (SHF1) Sheathed, Screened Fire Resistant Power & Control Cables (Multicore)
Application
Marine cables are used for fixed installations fixed installations on ships and offshore units in all locations and on
open deck in safety circuits, where fire resistance is required. The good screening qualities of the copper braid
also reduce radio interference and electrical influences to electronics installations. These cables are fire
resistant, flame retardant, low smoke& halogen free.
Standards
DIN 89160/98
IEC 60092-353
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

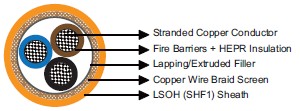

Construction
Conductors: Class 2 stranded copper conductor.
Insulation: Fire barriers + HEPR.
Inner Covering: Lapping or extruded filler.
Overall Screen: Copper wire braid.
Outer Sheath: LSOH (SHF1).
Core Identification
Two cores: Black, Blue.
Three cores: Black, Blue, Brown.
Four cores: Black, Blue, Brown, Black.
Five cores: Black, Blue, Brown, Black, Black.
Multi cores: All cores natural coloured, printed with numbers, starting in center with number 1.
Cables with 3 cores and more also with green/yellow core (has to be stated in order).
Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -20℃ ~ +75℃
Dimensions and Weight
| Part No. | Construction No. of cores×Cross section (mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| MFX400-1mG7MZ1-R-2C1.5 | 2×1.5 | 0.7 | 1.2 | 12.5 | 210 |
| MFX400-1mG7MZ1-R-2C2.5 | 2×2.5 | 0.7 | 1.2 | 13.0 | 250 |
| MFX400-1mG7MZ1-R-2C4 | 2×4 | 0.7 | 1.3 | 14.0 | 300 |
| MFX400-1mG7MZ1-R-2C6 | 2×6 | 0.7 | 1.3 | 16.0 | 410 |
| MFX400-1mG7MZ1-R-2C10 | 2×10 | 0.7 | 1.4 | 18.0 | 550 |
| MFX400-1mG7MZ1-R-2C16 | 2×16 | 0.7 | 1.5 | 20.0 | 720 |
| MFX400-1mG7MZ1-R-2C25 | 2×25 | 0.9 | 1.6 | 23.5 | 1050 |
| MFX400-1mG7MZ1-R-3C1.5 | 3×1.5 | 0.7 | 1.2 | 13.0 | 230 |
| MFX400-1mG7MZ1-R-3C2.5 | 3×2.5 | 0.7 | 1.2 | 14.0 | 280 |
| MFX400-1mG7MZ1-R-3C4 | 3×4 | 0.7 | 1.3 | 15.0 | 350 |
| MFX400-1mG7MZ1-R-3C6 | 3×6 | 0.7 | 1.3 | 16.5 | 480 |
| MFX400-1mG7MZ1-R-3C10 | 3×10 | 0.7 | 1.4 | 19.0 | 670 |
| MFX400-1mG7MZ1-R-3C16 | 3×16 | 0.7 | 1.5 | 21.0 | 870 |
| MFX400-1mG7MZ1-R-3C25 | 3×25 | 0.9 | 1.7 | 24.5 | 1300 |
| MFX400-1mG7MZ1-R-3C35 | 3×35 | 0.9 | 1.8 | 27.0 | 1680 |
| MFX400-1mG7MZ1-R-3C50 | 3×50 | 1.0 | 2.1 | 30.5 | 2190 |
| MFX400-1mG7MZ1-R-3C70 | 3×70 | 1.1 | 2.0 | 35.0 | 3020 |
| MFX400-1mG7MZ1-R-3C95 | 3×95 | 1.1 | 2.3 | 39.5 | 4050 |
| MFX400-1mG7MZ1-R-3C120 | 3×120 | 1.2 | 2.5 | 44.0 | 5000 |
| MFX400-1mG7MZ1-R-4C1.5 | 4×1.5 | 0.7 | 1.2 | 13.5 | 270 |
| MFX400-1mG7MZ1-R-4C2.5 | 4×2.5 | 0.7 | 1.3 | 15.0 | 330 |
| MFX400-1mG7MZ1-R-4C4 | 4×4 | 0.7 | 1.3 | 16.5 | 460 |
| MFX400-1mG7MZ1-R-4C6 | 4×6 | 0.7 | 1.4 | 18.0 | 560 |
| MFX400-1mG7MZ1-R-4C10 | 4×10 | 0.7 | 1.5 | 20.5 | 790 |
| MFX400-1mG7MZ1-R-4C16 | 4×16 | 0.7 | 1.6 | 23.0 | 1090 |
| MFX400-1mG7MZ1-R-4C25 | 4×25 | 0.9 | 1.8 | 27.0 | 1630 |
| MFX400-1mG7MZ1-R-5C1.5 | 5×1.5 | 0.7 | 1.3 | 14.5 | 320 |
| MFX400-1mG7MZ1-R-5C2.5 | 5×2.5 | 0.7 | 1.3 | 16.5 | 440 |
| MFX400-1mG7MZ1-R-7C1.5 | 7×1.5 | 0.7 | 1.3 | 16.5 | 400 |
| MFX400-1mG7MZ1-R-10C1.5 | 10×1.5 | 0.7 | 1.3 | 19.5 | 450 |
| MFX400-1mG7MZ1-R-12C1.5 | 12×1.5 | 0.7 | 1.4 | 20.0 | 510 |
| MFX400-1mG7MZ1-R-14C1.5 | 14×1.5 | 0.7 | 1.4 | 21.0 | 570 |
| MFX400-1mG7MZ1-R-16C1.5 | 16×1.5 | 0.7 | 1.4 | 22.0 | 640 |
| MFX400-1mG7MZ1-R-19C1.5 | 19×1.5 | 0.7 | 1.5 | 23.5 | 730 |
| MFX400-1mG7MZ1-R-24C1.5 | 24×1.5 | 0.7 | 1.6 | 27.0 | 910 |
