Marine Cable
F104 (Formerly F6) AICI
Applications :
These optical fibre cables are flame retardant, low smoke and halogen free, used for instrumentation, data and
communication systems.
Standards :
IEC 60794
IEC 60811-2-1
IIEC 60331-25
IEC 60332-3-24
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2016

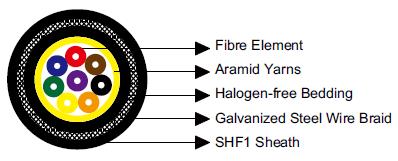

Construction :
Fibre Element: Tight buffered fibres.
Central Strength Element: Fibre reinforced plastic (FRP) and/or aramid yarns.
Bedding: Halogen free and flame retardant thermoplastic compound.
Armour: Galvanized steel wire braid.
Outer Sheath: Halogen free and flame retardant, UV-stabilized, thermoplastic compound, SHF1.
Electrical Characteristics :
-
Fibre Type 9/125 50/125 50/125 62.5/125 ITU-T type G652.D G651 G651 - IEC11801 Classification OS1 & OS2 OM2 OM3 OM1 Core Diameter μm 8.7±0.4 50±3.0 50±3.0 62.5±3.0 Cladding Diameter μm 125 ±1.0 125 ±2.0 125 ±2.0 125 ±2.0 Coating Diameter μm 245 ±10 245 ±10 245 ±10 245 ±10 Maximum Attenuation @850 nm dB/km - 3.0 3.0 3.5 @1300 nm dB/km - 1.5 1.0 1.5 @1310 nm dB/km 0.36 - - - @1550 nm dB/km 0.22 - - - Minimum Bandwidth(OFL*) @850 nm MHz.km - 500 1500 200 @1300 nm MHz.km - 500 500 600 Maximum Chromatic Dispersion 1285-1330 nm ps/nm⋅km 2.8 - - - 1550 nm ps/nm⋅km 18 - - - Zero Dispersion Wavelength nm 1300~1324 - - -
Mechanical and Thermal Properties :
Bending Radius : 20×OD (during installation); 10×OD (fixed installed).
- Temperature Range : -40℃ ~ +70℃.
Dimensions and Weight :
| No. of Fibres | Secondary Coating mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 2 | 0.9 | 7.8 | 100 |
| 4 | 0.9 | 8.2 | 110 |
| 8 | 0.9 | 9.4 | 125 |
| 12 | 0.9 | 10.3 | 145 |
| 24 | 0.9 | 12.0 | 185 |
