M2XCH 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Power & Control

Cables (Multicore)

Applications

Marine armoured cables are used on board of ships in all locations for fixed installations where cable protection

is required. These cables are flame retardant, low smoke & halogen free.

Standards

IEC 60092-350/360/353

IEC 60332-1

IEC 60332-3-22

IEC 60754-1/2

IEC 61034

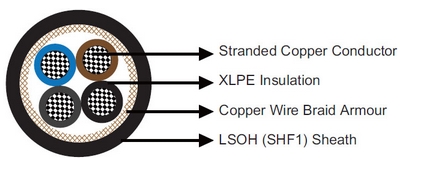

Construction

M2XCH 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Power & Control Cables (Multicore)

Conductors:Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be

offered upon request.

Insulation:XLPE.

Inner Covering:Lapping.

Armour:Copper wire braid.

Outer Sheath:LSOH (SHF1).

Core Identification

Two cores:Blue, Brown.

Three cores:Brown, Black, Grey.

Four cores:Blue, Brown, Black, Grey.

Five cores:Blue, Brown, Black, Grey, Black.

Multi cores:White with black numbers.

                   With yellow/green (optional)

Two cores + earth (3G):Yellow/green, Blue, Brown.

Three cores + earth (4G):Yellow/green, Brown, Black, Grey.

Four cores + earth (5G):Yellow/green, Blue, Brown, Black, Grey.

Mechanical and Thermal Properties

Bending Radius for Fixed Installations:6×OD

Temperature Range:-30℃ ~ +80℃

Dimensions and Weight

M2XCH Multicore Armoured 0.6/1kV

Part No. Construction No. of elements×No. of cores in element×Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
  mm² mm mm mm kg/km
M2XCH -2C1.5 2×1.5 0.7 1.1 9.3 120
M2XCH -2C2.5 2×2.5 0.7 1.1 10.1 150
M2XCH -2C4 2×4 0.9 1.2 12.2 195
M2XCH -2C6 2×6 0.9 1.2 13.7 275
M2XCH -2C10 2×10 0.9 1.3 15.7 385
M2XCH -2C16 2×16 0.9 1.4 18.4 595
M2XCH -2C25 2×25 0.9 1.5 21.3 820
M2XCH -2C35 2×35 0.9 1.5 23.9 1140
M2XCH -2C50 2×50 1.0 1.5 26.7 1500
M2XCH -3C1.5(3G1.5) 3×(G)1.5 0.7 1.1 9.8 145
M2XCH -3C2.5(3G2.5) 3×(G)2.5 0.7 1.1 10.7 180
M2XCH -3C4 3×4 0.9 1.2 12.9 245
M2XCH -3C6 3×6 0.9 1.3 14.7 345
M2XCH -3C10 3×10 0.9 1.3 16.6 490
M2XCH -3C16 3×16 0.9 1.4 19.5 755
M2XCH -3C25 3×25 0.9 1.6 22.7 1095
M2XCH -3C35 3×35 0.9 1.6 24.9 1340
M2XCH -3C35S 3×35 (sector shaped) 0.9 1.6 22.0 1320
M2XCH -3C50 3×50 1.0 1.6 27.1 1750
M2XCH -3C50S 3×50 (sector shaped) 1.0 1.6 24.8 1820
M2XCH -3C70S 3×70 (sector shaped) 1.1 2.0 29.7 2575
M2XCH -3C95S 3×95 (sector shaped) 1.1 2.1 33.1 3435
M2XCH -3C120S 3×120 (sector shaped) 1.2 2.2 36.0 4070
M2XCH -3C150S 3×150 (sector shaped) 1.4 2.4 40.9 5435
M2XCH -4C1.5(4G1.5) 4×(G)1.5 0.7 1.1 10.5 170
M2XCH -4C2.5(4G2.5) 4×(G)2.5 0.7 1.2 11.8 225
M2XCH -4C4 4×4 0.9 1.3 14.7 335
M2XCH -4C6 4×6 0.9 1.3 16.0 425
M2XCH -4C10 4×10 0.9 1.4 18.3 625
M2XCH -4C16 4×16 0.9 1.5 21.5 935
M2XCH -4C25 4×25 0.9 1.6 24.4 1345
M2XCH -4C35 4×35 0.9 1.7 27.5 1715
M2XCH -4C35S 4×35 (sector shaped) 0.9 1.7 24.3 1700
M2XCH -4C50 4×50 1.0 1.6 29.9 2400
M2XCH -4C50S 4×50(sector shaped) 1.0 1.6 27.3 2300
M2XCH -4C70S 4×70(sector shaped) 1.1 2.1 32.8 3250
M2XCH -4C95S 4×95(sector shaped) 1.1 2.2 37.3 4390
M2XCH -5C1.5(5G1.5) 5×(G)1.5 0.7 1.2 11.7 205
M2XCH -5C2.5(5G2.5) 5×(G)2.5 0.7 1.2 12.8 265
M2XCH -5G4 5G4 0.9 1.2 15.2 360
M2XCH -6C1.5 6×1.5 0.7 1.2 12.7 240
M2XCH -7C1.5 7×1.5 0.7 1.2 12.7 260
M2XCH -8C1.5 8×1.5 0.7 1.2 15.5 340
M2XCH -10C1.5 10×1.5 0.7 1.3 16.2 390
M2XCH -12C1.5 12×1.5 0.7 1.4 16.9 440
M2XCH -16C1.5 16×1.5 0.7 1.4 18.6 550
M2XCH -19C1.5 19×1.5 0.7 1.5 19.7 620
M2XCH -24C1.5 24×1.5 0.7 1.6 22.9 800
M2XCH -5C2.5 5×2.5 0.7 1.2 12.9 290
M2XCH -7C2.5 7×2.5 0.7 1.2 14.6 390
M2XCH -12C2.5 12×2.5 0.7 1.4 18.7 610
M2XCH -19C2.5 19×2.5 0.7 1.5 21.8 870
M2XCH -24C2.5 24×2.5 0.7 1.6 25.6 1100
M2XCH -27C2.5 27×2.5 0.7 1.7 26.1 1200
M2XCH -37C2.5 37×2.5 0.7 1.9 29.2 1560
