M2XH 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables

(Multicore)



Applications

Marine unarmoured power & control cables are used on board of ships in all locations for fixed installations not

subject to mechanical risk complying with IEC standards 60092-352.Marine cables are flame retardant, low

smoke & halogen free.

Standards

IEC 60092-350/360/353

IEC 60332-1

IEC 60332-3-22

IEC 60754-1/2

IEC 61034

Construction

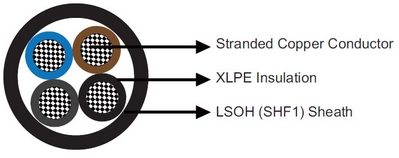

M2XH 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables (Multicore)

Conductors:Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be

offered upon request.

Insulation:XLPE.

Filler (optional):Halogen free filling compound.

Outer Sheath:LSOH (SHF1).

Core Identification

Two cores:Blue, Brown.

Three cores:Brown, Black, Grey.

Four cores:Blue, Brown, Black, Grey.

Five cores:Blue, Brown, Black, Grey, Black.

Multi cores:White with black numbers.

                  With yellow/green (optional)

Two cores + earth (3G):Yellow/green, Blue, Brown.

Three cores + earth (4G):Yellow/green, Brown, Black, Grey.

Four cores + earth (5G):Yellow/green, Blue, Brown, Black, Grey.

Mechanical and Thermal Properties

Bending Radius for Fixed Installations:6×OD (OD>25mm); 4×OD (OD ≤25mm)

Temperature Range:-30℃ ~ +80℃

Dimensions and Weight

M2XH Multicore 0.6/1kV

Part No. Construction No. of elements×No. of cores in element×Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
  mm² mm mm mm kg/km
M2XH -2C1.5 2×1.5 0.7 1.1 8.4 80
M2XH -2C2.5 2×2.5 0.7 1.1 9.2 100
M2XH -2C4 2×4 0.9 1.1 11.1 135
M2XH -2C6 2×6 0.9 1.2 12.4 185
M2XH -2C10 2×10 0.9 1.2 14.1 270
M2XH -2C16 2×16 0.9 1.3 16.4 400
M2XH -2C25 2×25 0.9 1.3 18.8 700
M2XH -2C35 2×35 0.9 1.3 21.4 930
M2XH -2C50 2×50 1.0 1.3 24.2 1290
M2XH -3C1.5(3G1.5) 3×(G)1.5 0.7 1.1 8.8 100
M2XH -3C2.5(3G2.5) 3×(G)2.5 0.7 1.1 9.8 130
M2XH -3C4(3G4) 3×(G)4 0.9 1.2 12.0 190
M2XH -3C6(3G6) 3×(G)6 0.9 1.2 13.2 250
M2XH -3C10 3×10 0.9 1.3 15.2 380
M2XH -3C16(3G16) 3×16 0.9 1.3 17.5 560
M2XH -3C25 3×25 0.9 1.5 20.7 875
M2XH -3C35 3×35 0.9 1.6 23.5 1220
M2XH -3C35S 3×35 (sector shaped) 0.9 1.5 20.1 1135
M2XH -3C50 3×50 1.0 1.7 26.7 1780
M2XH -3C50S 3×50 (sector shaped) 1.0 1.7 22.8 1530
M2XH -3C70S 3×70 (sector shaped) 1.1 1.8 26.7 2150
M2XH -3C95S 3×95 (sector shaped) 1.1 1.9 30.2 2900
M2XH -3C120S 3×120 (sector shaped) 1.2 2.1 34.0 3675
M2XH -4C1.5(4G1.5) 4×(G)1.5 0.7 1.1 9.6 120
M2XH -4C2.5(4G2.5) 4×(G)2.5 0.7 1.1 10.7 165
M2XH -4C4(4G4) 4×(G)4 0.9 1.2 13.2 240
M2XH -4C6(4G6) 4×(G)6 0.9 1.2 14.5 320
M2XH -4C10(4G10) 4×(G)10 0.9 1.3 16.7 490
M2XH -4C16(4G16) 4×(G)16 0.9 1.4 19.5 740
M2XH -4C25(4G25) 4×(G)25 0.9 1.5 22.8 1145
M2XH -4G35 4G35 0.9 1.7 26.0 1515
M2XH -4G50 4G50 1.0 1.8 29.7 2340
M2XH -5C1.5(5G1.5) 5×(G)1.5 0.7 1.1 10.5 145
M2XH -5C2.5(5G2.5) 5×(G)2.5 0.7 1.2 11.9 205
M2XH -5G6 5G6 0.9 1.3 16.1 400
M2XH -5G16 5G16 0.9 1.5 21.6 920
M2XH -6C1.5 6×1.5 0.7 1.2 11.6 180
M2XH -7C1.5 7×1.5 0.7 1.2 11.7 195
M2XH -8C1.5(8G1.5) 8×(G)1.5 0.7 1.2 12.7 225
M2XH -10C1.5 10×1.5 0.7 1.3 14.8 275
M2XH -12C1.5 12×1.5 0.7 1.3 15.3 315
M2XH -16C1.5 16×1.5 0.7 1.4 17.2 410
M2XH -19C1.5 19×1.5 0.7 1.4 18.1 470
M2XH -24C1.5 24×1.5 0.7 1.5 21.3 620
M2XH -5C2.5 5×2.5 0.7 1.2 11.9 210
M2XH -7C2.5 7×2.5 0.7 1.2 13.2 280
M2XH -12C2.5 12×2.5 0.7 1.3 17.4 460
M2XH -19C2.5 19×2.5 0.7 1.4 20.6 690
M2XH -24C2.5 24×2.5 0.7 1.5 24.3 880
M2XH -27C2.5 27×2.5 0.7 1.5 24.6 970
M2XH -37C2.5 37×2.5 0.7 1.6 27.7 1300
