Water Blocked P1 or P1/P8 RFOU/TFOU 0.6/1KV
Applications
Marine cables are partially water blocked, flame retardant, low smoke, halogen free and mud resistant, used for
control, power and lighting systems.
Standards
IEC 60092-353
IEC 60092-360
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606
VG 95218 part 29

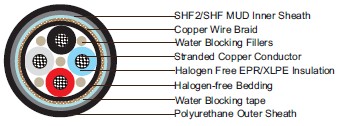

Construction
Conductors: Tinned annealed stranded copper to IEC 60228 class 2.
Insulation: Halogen-free EPR. XLPE can be offered as an option (for TFOU cable)
Filler: Water blocking fillers, if required.
Bedding: Halogen free compound, PETP wrapping tape will be applied over the bedding, if required.
Armour: Tinned copper wire braid, PETP wrapping tape will be applied over the braiding, if required.
Water Blocking Elements:Water blocking tape and strings for providing longitudinal water tightness.
Inner Sheath: Halogen free thermosetting compound, SHF2 (for TYPE P1). Halogen free, mud resistant
thermosetting compound, SHF MUD (for TYPE P1/P8), coloured black.
Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low
smoke standard.
-
Electrical Characteristics
-
Nominal Cross Section Area mm² 1.5 2.5 4 6 10 16 25 35 50 70 Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 4.0 5.1 6.5 7.4 8.7 10.3 Maximum DC Resistant@20℃ Ω/km 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529 0.391 0.27 Continuous Current Rating@45℃1 Core A 23 30 40 52 72 96 127 157 196 242 Continuous Current Rating@45℃2 Core A 20 26 34 44 61 82 108 133 167 206 Continuous Current Rating@45℃ 3&4 Core A 16 21 28 36 50 67 89 110 137 169 Short Circuit Current 1s A 210 360 570 860 1430 2290 3580 5010 7150 10020 Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 -
Nominal Cross Section Area mm² 95 120 150 185 240 300 400 500 630 Nominal Conductor Diameter mm 12.2 13.8 15.1 17.0 19.6 21.9 24.6 27.6 32.5 Maximum DC Resistant@20℃ Ω/km 0.195 0.154 0.126 0.1 0.0762 0.0607 0.0475 0.0369 0.0286 Continuous Current Rating@45℃1 Core A 293 339 389 444 522 601 690 780 890 Continuous Current Rating@45℃2 Core A 249 288 331 444 444 511 587 663 757 Continuous Current Rating@45℃3&4 Core A 205 237 272 311 365 421 483 546 623 Short Circuit Current 1s A 13590 17170 21460 26470 34340 42930 57230 71540 90140 Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 - Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.
Ambient Temperature Correction Factors
| Ambient Temperature Correction Factors | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| Rating Factor | 1.1 | 1.05 | 1 | 0.94 | 0.88 | 0.82 | 0.74 | 0.67 | 0.58 | 0.47 |
Mechanical and Thermal Properties
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight| Construction No. of cores×Cross section mm² |
Nominal Insulation Thickness mm | Nominal Bedding Thickness mm |
Nominal Inner Sheath Thickness mm |
NominalOuter Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 1×1.5 | 1 | 1.1 | 1.1 | 1 | 10.9±2 | 142 |
| 1×2.5 | 1 | 1.1 | 1.1 | 1 | 11.3±2 | 158 |
| 1×4 | 1 | 1.1 | 1.1 | 1 | 11.9±2 | 189 |
| 1×6 | 1 | 1.1 | 1.1 | 1 | 12.4±2 | 215 |
| 1×10 | 1 | 1.1 | 1.2 | 1 | 14.2±2 | 310 |
| 1×16 | 1 | 1.1 | 1.2 | 1 | 15.5±2 | 404 |
| 1×25 | 1.2 | 1.1 | 1.2 | 1.2 | 17.8±2 | 551 |
| 1×35 | 1.2 | 1.1 | 1.3 | 1.2 | 19.3±2 | 719 |
| 1×50 | 1.4 | 1.1 | 1.4 | 1.2 | 21.1±2 | 914 |
| 1×70 | 1.4 | 1.1 | 1.4 | 1.2 | 22.8±2 | 1160 |
| 1×95 | 1.6 | 1.1 | 1.5 | 1.4 | 25.6±2 | 1507 |
| 1×120 | 1.6 | 1.2 | 1.6 | 1.4 | 27.7±2 | 1832 |
| 1×150 | 1.8 | 1.2 | 1.6 | 1.4 | 29.6±2 | 2158 |
| 1×185 | 2 | 1.2 | 1.7 | 1.4 | 32.1±2 | 2688 |
| 1×240 | 2.2 | 1.2 | 1.8 | 1.6 | 35.7±2 | 3350 |
| 1×300 | 2.4 | 1.2 | 1.9 | 1.6 | 38.4±2 | 4132 |
| 1×400 | 2.4 | 1.4 | 2.1 | 1.6 | 43.7±2 | 5313 |
| 1×500 | 2.4 | 1.4 | 2.2 | 1.6 | 47.2±2 | 6489 |
| 1×630 | 2.4 | 1.4 | 2.3 | 1.6 | 51.2±2 | 8001 |
| 2×1.5 | 1 | 1.1 | 1.2 | 1 | 15.6±2 | 310 |
| 2×2.5 | 1 | 1.1 | 1.2 | 1 | 16.4±2 | 352 |
| 2×4 | 1 | 1.1 | 1.3 | 1 | 18.1±2 | 467 |
| 2×6 | 1 | 1.1 | 1.3 | 1 | 19.1±2 | 546 |
| 2×10 | 1 | 1.1 | 1.4 | 1 | 21.3±2 | 714 |
| 2×16 | 1 | 1.1 | 1.5 | 1 | 23.7±2 | 1003 |
| 2×25 | 1.2 | 1.2 | 1.6 | 1.2 | 28.3±2 | 1402 |
| 2×35 | 1.2 | 1.2 | 1.7 | 1.2 | 30.3±2 | 1675 |
| 2×50 | 1.4 | 1.2 | 1.9 | 1.2 | 34.3±2 | 2363 |
| 2×70 | 1.4 | 1.2 | 2.1 | 1.2 | 38.2±2 | 2935 |
| 2×95 | 1.6 | 1.2 | 2.3 | 1.4 | 44.0±2 | 3969 |
| 2×120 | 1.6 | 1.4 | 2.4 | 1.4 | 47.6±2 | 4788 |
| 2×150 | 1.8 | 1.4 | 2.6 | 1.4 | 52.0±2 | 5775 |
| 2×185 | 2 | 1.4 | 2.7 | 1.4 | 56.6±2 | 7009 |
| 2×240 | 2.2 | 1.6 | 3 | 1.6 | 64.2±2 | 9035 |
| 2×300 | 2.4 | 1.6 | 3.2 | 1.6 | 70.2±2 | 11036 |
| 3×1.5 | 1 | 1.1 | 1.2 | 1 | 16.2±2 | 336 |
| 3×2.5 | 1 | 1.1 | 1.3 | 1 | 17.6±2 | 436 |
| 3×4 | 1 | 1.1 | 1.3 | 1 | 18.8±2 | 525 |
| 3×6 | 1 | 1.1 | 1.4 | 1 | 20.1±2 | 635 |
| 3×10 | 1 | 1.1 | 1.4 | 1 | 22.3±2 | 835 |
| 3×16 | 1 | 1.1 | 1.5 | 1 | 24.8±2 | 1181 |
| 3×25 | 1.2 | 1.2 | 1.6 | 1.2 | 29.9±2 | 1701 |
| 3×35 | 1.2 | 1.2 | 1.7 | 1.2 | 32.0±2 | 2053 |
| 3×50 | 1.4 | 1.2 | 1.9 | 1.2 | 36.3±2 | 2867 |
| 3×70 | 1.4 | 1.4 | 2 | 1.2 | 40.8±2 | 3838 |
| 3×95 | 1.6 | 1.4 | 2.2 | 1.4 | 46.6±2 | 5129 |
| 3×120 | 1.6 | 1.4 | 2.3 | 1.4 | 50.4±2 | 6300 |
| 3×150 | 1.8 | 1.6 | 2.5 | 1.4 | 55.2±2 | 7665 |
| 3×185 | 2 | 1.6 | 2.7 | 1.4 | 61.4±2 | 9408 |
| 3×240 | 2.2 | 1.8 | 2.9 | 1.6 | 69.3±2 | 12191 |
| 3×300 | 2.2 | 1.8 | 3.4 | 1.6 | 74.1±2 | 14165 |
| 4×1.5 | 1 | 1.1 | 1.3 | 1 | 17.7±2 | 368 |
| 4×2.5 | 1 | 1.1 | 1.3 | 1 | 18.6±2 | 446 |
| 4×4 | 1 | 1.1 | 1.4 | 1 | 20.1±2 | 620 |
| 4×6 | 1 | 1.1 | 1.4 | 1 | 21.5±2 | 761 |
| 4×10 | 1 | 1.1 | 1.5 | 1 | 24.1±2 | 1003 |
| 4×16 | 1 | 1.2 | 1.6 | 1 | 27.2±2 | 1444 |
| 4×25 | 1.2 | 1.2 | 1.7 | 1.2 | 32.4±2 | 2063 |
| 4×35 | 1.2 | 1.2 | 1.8 | 1.2 | 34.8±2 | 2531 |
| 4×50 | 1.4 | 1.4 | 2 | 1.2 | 39.7±2 | 3533 |
| 4×70 | 1.4 | 1.4 | 2.2 | 1.2 | 44.5±2 | 4809 |
| 4×95 | 1.6 | 1.4 | 2.4 | 1.4 | 51.0±2 | 6321 |
| 4×120 | 1.6 | 1.6 | 2.5 | 1.4 | 55.5±2 | 7812 |
| 4×150 | 1.8 | 1.6 | 2.9 | 1.4 | 61.1±2 | 9240 |
| 4×185 | 2 | 1.6 | 3.1 | 1.4 | 66.8±2 | 11298 |
| 4×240 | 2.2 | 1.8 | 3.4 | 1.6 | 75.6±2 | 14585 |
| 4×300 | 2.4 | 1.8 | 3.7 | 1.6 | 83.0±2 | 18275 |
| 5×1.5 | 1 | 1.1 | 1.3 | 1 | 18.7±2 | 441 |
| 6×1.5 | 1 | 1.1 | 1.3 | 1 | 19.8±2 | 520 |
| 7×1.5 | 1 | 1.1 | 1.3 | 1 | 19.8±2 | 567 |
| 8×1.5 | 1 | 1.1 | 1.5 | 1 | 22.3±2 | 677 |
| 9×1.5 | 1 | 1.1 | 1.5 | 1 | 23.5±2 | 709 |
| 10×1.5 | 1 | 1.1 | 1.5 | 1 | 23.8±2 | 740 |
| 12×1.5 | 1 | 1.1 | 1.5 | 1 | 24.5±2 | 845 |
| 14×1.5 | 1 | 1.1 | 1.6 | 1 | 25.6±2 | 903 |
| 16×1.5 | 1 | 1.1 | 1.7 | 1 | 26.9±2 | 987 |
| 19×1.5 | 1 | 1.1 | 1.7 | 1 | 28.0±2 | 1155 |
| 20×1.5 | 1 | 1.1 | 1.7 | 1 | 29.2±2 | 1187 |
| 23×1.5 | 1 | 1.1 | 1.8 | 1 | 31.3±2 | 1349 |
| 24×1.5 | 1 | 1.1 | 1.8 | 1 | 32.0±2 | 1370 |
| 27×1.5 | 1 | 1.1 | 1.9 | 1 | 32.8±2 | 1533 |
| 30×1.5 | 1 | 1.1 | 1.9 | 1 | 33.8±2 | 1596 |
| 33×1.5 | 1 | 1.2 | 2 | 1 | 35.5±2 | 1754 |
| 37×1.5 | 1 | 1.2 | 2 | 1 | 36.6±2 | 1932 |
| 44×1.5 | 1 | 1.2 | 2.2 | 1 | 41.2±2 | 2321 |
| 5×2.5 | 1 | 1.1 | 1.4 | 1 | 20.0±2 | 583 |
| 6×2.5 | 1 | 1.1 | 1.4 | 1 | 21.2±2 | 620 |
| 7×2.5 | 1 | 1.1 | 1.4 | 1 | 21.2±2 | 688 |
| 8×2.5 | 1 | 1.1 | 1.5 | 1 | 23.8±2 | 814 |
| 9×2.5 | 1 | 1.1 | 1.6 | 1 | 25.3±2 | 824 |
| 10×2.5 | 1 | 1.1 | 1.6 | 1 | 25.6±2 | 908 |
| 12×2.5 | 1 | 1.1 | 1.6 | 1 | 26.5±2 | 1003 |
| 14×2.5 | 1 | 1.1 | 1.7 | 1 | 27.5±2 | 1124 |
| 16×2.5 | 1 | 1.1 | 1.7 | 1 | 28.7±2 | 1213 |
| 19×2.5 | 1 | 1.1 | 1.8 | 1 | 30.2±2 | 1428 |
| 20×2.5 | 1 | 1.1 | 1.8 | 1 | 31.5±2 | 1481 |
| 23×2.5 | 1 | 1.1 | 1.9 | 1 | 33.8±2 | 1691 |
| 24×2.5 | 1 | 1.2 | 2 | 1 | 35.2±2 | 1775 |
| 27×2.5 | 1 | 1.2 | 2 | 1 | 35.9±2 | 1906 |
| 30×2.5 | 1 | 1.2 | 2 | 1 | 36.9±2 | 2058 |
| 33×2.5 | 1 | 1.2 | 2.1 | 1 | 38.7±2 | 2300 |
| 37×2.5 | 1 | 1.2 | 2.1 | 1 | 40.0±2 | 2489 |
| 44×2.5 | 1 | 1.2 | 2.3 | 1 | 44.6±2 | 2935 |
