Applications :

• Marine 50Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.

Standards :

IEC 60092-350

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606

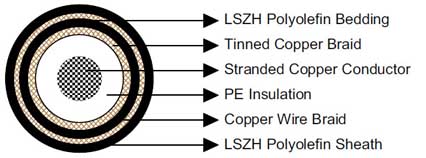

Construction :

Conductors : 21AWG tinned copper.

Insulation : PE.

Shielding : Tinned copper braid.

Bedding : Low smoke and halogen-free polyolefin, coloured black.

Armour : Copper wire braid.

Outer Sheath : Low smoke and halogen-free polyolefin.

Electrical Characteristics :

• AWG		21
  Conductor Construction No./Diameter of Wires	-/mm	19/0.18
  Nominal Conductor Diameter	mm	0.89
  Impedance	Ω	50+/-3
  Nominal Attenuation@100MHz	dB/100m	15.7
  Nominal Attenuation@200MHz	dB/100m	22.3
  Nominal Attenuation@400MHz	dB/100m	32.8
  Nominal Attenuation@700MHz	dB/100m	46.6
  Nominal Attenuation@900MHz	dB/100m	54.1
  Nominal Attenuation@1000MHz	dB/100m	56.1
  Capacitance	pF/m	101
  Velocity of Propagation	%	66
  Conductor DCR	Ω/km	35.4
  Inductance	μH/m	0.246
  Time Delay	ns/m	5.0

Mechanical and Thermal Properties :

Bending Radius : 15×OD.

Temperature Range : -30℃ ~ +75℃.

Dimensions and Weight :

Nominal Inner Conductor Diameter mm	Nominal Insulation Thickness mm	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
0.89	1.0	1.14	8.6	149
