Water Blocked
S10 IYOI(c) 60 V
Applications
Marine cables are flame retardant, low smoke and halogen free, used for indoor telecommunication.
Standards
IEC 60092-360
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606
VG 95218 part 29

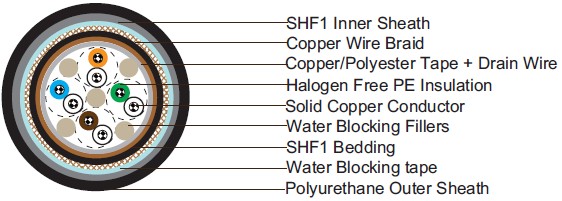

- Construction
Conductors: Solid tinned copper, 0.5mm.
Insulation: Halogen-free thermoplastic compound PE.
Twinning: Colour coded cores twisted together. Pairs are cross-stranded to finished cable or 10 pair units. The
units are stranded to 20 - 30 - 50 pair cables. 2 pair is stranded as a star quad.
Filler: Water blocking fillers, if required.
Wrapping: Polyester tape.
Collective Shielding: The cable core is screened by copper backed polyester tape in contact with a 0.5mm solid
tinned drain wire.
-
Bedding: Halogen-free thermoplastic compound, type SHF1, coloured grey, PETP wrapping tape will be applied
-
over the bedding, if required.
-
Armour: Copper wire braid, PETP wrapping tape will be applied over the braiding, if required.
-
Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
-
Inner Sheath: Halogen-free thermoplastic compound, type SHF1, coloured grey.
-
Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low
-
smoke standard.
| Nominal Conductor Diameter | mm | 0.5 |
| Maximum Resistant@20℃ | Ω/km | 95 |
| Nominal Inductance@1KHz | MH/km | 0.61 |
| Mutual Capacitance 1-pair cable | nF/km | 90 |
| Mutual Capacitance 2-pair cable | nF/km | 80 |
| Mutual Capacitance 4-pair and above cable | nF/km | 70 |
| Operating Voltage | V | 60 |
Mechanical and Thermal Properties
Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
Temperature Range : -10℃ ~ +60℃.
Dimensions and Weight
Construction No. of elements×No. of cores in element×Core diameter mm |
Nominal Insulation Thickness mm |
Nominal Bedding Thickness mm |
Nominal Inner Sheath Thickness mm |
Nominal Outer Sheath Thickness mm |
Nominal Overall Diameter mm |
| 1×2×0.5 | 0.2 | 1.2 | 1.2 | 1 | 10.0±2.0 |
| 2×2×0.5 | 0.2 | 1.2 | 1.2 | 1 | 11.0±2.0 |
| 4×2×0.5 | 0.2 | 1.2 | 1.2 | 1 | 12.0±2.0 |
| 10×2×0.5 | 0.2 | 1.5 | 1.5 | 1 | 14.0±2.0 |
| 20×2×0.5 | 0.2 | 1.5 | 1.5 | 1 | 17.0±2.0 |
