Water Blocked

S12 RU(c) 250 V

Applications

Marine cables are flame retardant, low smoke and halogen free, used for living, quarter and office areas.

Standards

IEC 60092-376

IEC 60092-360

IEC 60332-1

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606

VG 95218 part 29

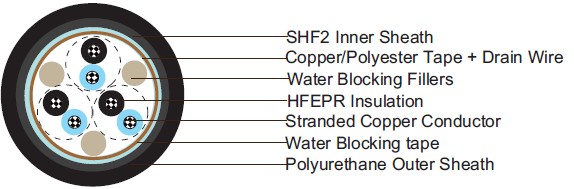

Water Blocked S12 RU(c) 250 V

Construction

Conductors: Circular tinned annealed stranded copper wire to IEC 60228 class 2.
lInsulation: Halogen free EPR compound.
Twinning: Colour coded cores twisted together.
Filler: Water blocking fillers, if required.
Collective Shielding: Pairs/triples are layed up and collectively screened by copper backed polyester tape in
contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers
printed directly on the insulated conductors.
Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
Inner Sheath: Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).
Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low
smoke standard.

Electrical Characteristics

Nominal Cross Section Area	mm²	0.75	1.0	1.5
Nominal Conductor Diameter	mm	1.1	1.3	1.6
Maximum Resistant@20℃	Ω/km	26.3	19.3	12.9
Mutual Capacitance	nF/km	80	90	100
Nominal Inductance@1KHz	MH/km	0.682	0.645	0.632
Maximum L/R@1KHz	μH/Ω	20	25	35
Operating Voltage	V	250	250	250

Mechanical and Thermal Properties

Bending Radius : 8×OD (during installation); 6×OD (fixed installed).

Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight

Construction No. of elements×No. of cores in element×Cross section mm²	Nominal Insulation Thickness mm	Nominal Inner Sheath Thickness mm	Nominal Outer Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
2×2×0.75	0.6	1.1	1	11.4±2	168
4×2×0.75	0.6	1.1	1	13.5±2	226
7×2×0.75	0.6	1.3	1	15.6±2	315
8×2×0.75	0.6	1.3	1	16.7±2	357
12×2×0.75	0.6	1.4	1	19.6±2	488
16×2×0.75	0.6	1.5	1	21.7±2	625
19×2×0.75	0.6	1.5	1	22.7±2	698
24×2×0.75	0.6	1.7	1	26.1±2	893
32×2×0.75	0.6	2	1	28.7±2	1118
2×3×0.75	0.6	1.1	1	13.0±2	179
3×3×0.75	0.6	1.1	1	14.1±2	247
4×3×0.75	0.6	1.2	1	15.1±2	294
7×3×0.75	0.6	1.4	1	17.7±2	431
8×3×0.75	0.6	1.4	1	19.5±2	515
12×3×0.75	0.6	1.5	1	22.6±2	677
16×3×0.75	0.6	1.6	1	25.1±2	877
19×3×0.75	0.6	1.7	1	26.3±2	987
24×3×0.75	0.6	1.8	1	30.2±2	1271
2×2×1.0	0.6	1.1	1	11.9±2	200
4×2×1.0	0.6	1.1	1	14.3±2	268
7×2×1.0	0.6	1.3	1	16.7±2	389
8×2×1.0	0.6	1.3	1	17.7±2	431
12×2×1.0	0.6	1.5	1	20.9±2	593
16×2×1.0	0.6	1.6	1	23.1±2	767
19×2×1.0	0.6	1.7	1	24.5±2	872
24×2×1.0	0.6	1.8	1	27.9±2	1103
32×2×1.0	0.6	2.1	1	30.7±2	1381
3×3×1.0	0.6	1.1	1	14.9±2	294
4×3×1.0	0.6	1.3	1	16.0±2	352
7×3×1.0	0.6	1.5	1	18.9±2	525
12×3×1.0	0.6	1.6	1	24.1±2	835
16×3×1.0	0.6	1.6	1	26.8±2	1076
19×3×1.0	0.6	1.8	1	28.3±2	1234
24×3×1.0	0.6	2	1	32.4±2	1565
2×2×1.5	0.7	1.2	1	13.3±2	263
4×2×1.5	0.7	1.2	1	16.1±2	362
7×2×1.5	0.7	1.4	1	19.2±2	541
8×2×1.5	0.7	1.4	1	20.4±2	604
12×2×1.5	0.7	1.6	1	24.4±2	851
16×2×1.5	0.7	1.7	1	27.0±2	1097
19×2×1.5	0.7	1.8	1	28.4±2	1234
24×2×1.5	0.7	1.9	1	32.7±2	1580
32×2×1.5	0.7	2.2	1	35.9±2	1985
2×3×1.5	0.7	1.2	1	15.5±2	278
3×3×1.5	0.7	1.2	1	16.9±2	399
4×3×1.5	0.7	1.3	1	18.3±2	488
7×3×1.5	0.7	1.5	1	21.8±2	740
8×3×1.5	0.7	1.5	1	23.5±2	861
12×3×1.5	0.7	1.7	1	28.2±2	1197
16×3×1.5	0.7	1.8	1	31.4±2	1549
19×3×1.5	0.7	1.9	1	32.9±2	1759
24×3×1.5	0.7	2.1	1	38.2±2	2268
