Water Blocked

S13 BU(i) 250 V

Applications

Marine cables are fire resistant, flame retardant, low smoke, halogen free and mud resistant, used for

instrumentation, communication, control and alarm systems.

Standards

IEC 60092-376

IEC 60092-360

IEC 60332-1

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606

IEC 60331-21

VG 95218 part 29

marine cable

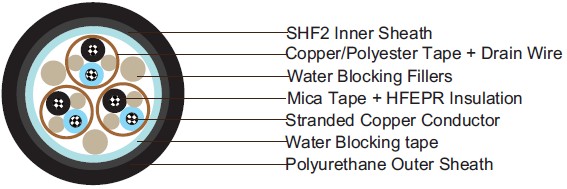

Construction

Conductors: Circular tinned annealed stranded copper wire to IEC 60228 class 2.
Insulation: Mica tape + Halogen free EPR compound.
Twinning: Colour coded cores twisted together.
Filler: Water blocking fillers, if required.
Individual Shielding: Each pairs/triples are screened by copper backed polyester tape in contact with a
stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered
tape or by numbers printed directly on the insulated conductors.
Filler: Water blocking fillers, if required.
Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
Inner Sheath: Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).
Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low
smoke standard.

Electrical Characteristics

Nominal Cross Section Area	mm²	0.75	1.0	1.5	2.5
Nominal Conductor Diameter	mm	1.1	1.3	1.6	2.0
Maximum Resistant@20℃	Ω/km	26.3	19.3	12.9	8.02
Mutual Capacitance	nF/km	85	95	100	110
Nominal Inductance@1KHz	MH/km	0.731	0.691	0.673	0.629
Maximum L/R@1KHz	μH/Ω	20	25	35	55
Operating Voltage	V	250	250	250	250

Mechanical and Thermal Properties

Bending Radius : 8×OD (during installation); 6×OD (fixed installed).

Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight

Construction No. of elements×No. of cores in element×Cross section mm²	Nominal Insulation Thickness mm	Nominal Inner Sheath Thickness mm	Nominal Outer Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1×2×0.75	0.6	1	1	10.2±2	110
2×2×0.75	0.6	1.2	1	12.5±2	215
4×2×0.75	0.6	1.2	1	15.2±2	305
7×2×0.75	0.6	1.4	1	18.0±2	467
8×2×0.75	0.6	1.4	1	19.3±2	520
12×2×0.75	0.6	1.6	1	23.1±2	740
16×2×0.75	0.6	1.7	1	25.5±2	961
19×2×0.75	0.6	1.8	1	26.8±2	1087
24×2×0.75	0.6	1.9	1	30.6±2	1386
32×2×0.75	0.6	2	1	33.7±2	1754
1×3×0.75	0.6	1	1	10.6±2	126
2×3×0.75	0.6	1.2	1	14.0±2	215
3×3×0.75	0.6	1.2	1	15.8±2	315
4×3×0.75	0.6	1.3	1	17.1±2	383
7×3×0.75	0.6	1.5	1	20.3±2	588
8×3×0.75	0.6	1.5	1	21.5±2	683
12×3×0.75	0.6	1.7	1	26.4±2	961
16×3×0.75	0.6	1.8	1	29.3±2	1244
19×3×0.75	0.6	1.9	1	31.0±2	1428
24×3×0.75	0.6	2.1	1	35.7±2	1838
1×2×1.0	0.6	1	1	10.6±2	131
2×2×1.0	0.6	1.2	1	13.1±2	252
4×2×1.0	0.6	1.3	1	16.0±2	362
7×2×1.0	0.6	1.5	1	18.9±2	551
8×2×1.0	0.6	1.5	1	20.5±2	630
12×2×1.0	0.6	1.6	1	24.3±2	882
16×2×1.0	0.6	1.6	1	26.9±2	1150
19×2×1.0	0.6	1.8	1	28.5±2	1318
24×2×1.0	0.6	1.9	1	32.5±2	1685
32×2×1.0	0.6	2	1	35.8±2	2132
1×3×1.0	0.6	1	1	11.1±2	147
3×3×1.0	0.6	1.3	1	16.7±2	378
4×3×1.0	0.6	1.3	1	18.1±2	462
7×3×1.0	0.6	1.6	1	21.7±2	730
12×3×1.0	0.6	1.7	1	28.0±2	1171
16×3×1.0	0.6	1.8	1	31.2±2	1528
19×3×1.0	0.6	1.9	1	33.0±2	1759
24×3×1.0	0.6	2.1	1	38.1±2	2252
1×2×1.5	0.7	1	1	11.6±2	163
2×2×1.5	0.7	1.3	1	14.6±2	326
4×2×1.5	0.7	1.4	1	18.1±2	473
7×2×1.5	0.7	1.6	1	21.4±2	725
8×2×1.5	0.7	1.6	1	23.3±2	819
12×2×1.5	0.7	1.7	1	27.7±2	1155
16×2×1.5	0.7	1.9	1	30.9±2	1523
19×2×1.5	0.7	2	1	32.5±2	1727
24×2×1.5	0.7	2.2	1	37.3±2	2221
32×2×1.5	0.7	2.3	1	41.1±2	2814
1×3×1.5	0.7	1.1	1	12.1±2	184
2×3×1.5	0.7	1.3	1	16.5±2	336
3×3×1.5	0.7	1.3	1	18.8±2	494
4×3×1.5	0.7	1.4	1	20.4±2	609
7×3×1.5	0.7	1.7	1	24.6±2	956
8×3×1.5	0.7	1.7	1	25.5±2	1082
12×3×1.5	0.7	1.9	1	32.0±2	1549
16×3×1.5	0.7	2	1	35.6±2	2021
19×3×1.5	0.7	2.1	1	37.7±2	2321
24×3×1.5	0.7	2.4	1	43.7±2	2998
1×2×2.5	0.7	1.1	1	12.5±2	200
1×3×2.5	0.7	1.3	1	13.0±2	231
