S13 BU(i) 250 V



Applications :

Standards :

IEC 60092-376

IEC 60092-360

IEC 60332-1

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606

IEC 60331-21

BS 6883&BS7917 Offshore & Marine cablesBS 6883&BS7917 Offshore & Marine cables

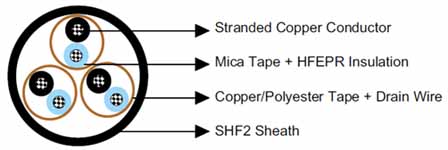

Construction :

Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2.

Insulation : Mica tape + Halogen free EPR compound.

Twinning : Colour coded cores twisted together.

Individual Shielding : Each pairs/triples are screened by copper backed polyester tape in contact with a

stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered

tape or by numbers printed directly on the insulated conductors.

Outer Sheath : Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).

Electrical Characteristics :

Mechanical and Thermal Properties :

Bending Radius : 8×OD (during installation); 6×OD (fixed installed).

Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight :

Construction No. of elements×No. of cores in element×Cross section
mm²		 Nominal Insulation Thickness
mm		 Nominal Sheath Thickness
mm		 Nominal Overall Diameter
mm		 Nominal Weight
kg/km
1×2×0.75 0.6 1.0 8.2 105
2×2×0.75 0.6 1.2 10.5 205
4×2×0.75 0.6 1.2 13.2 290
7×2×0.75 0.6 1.4 16.0 445
8×2×0.75 0.6 1.4 17.3 495
12×2×0.75 0.6 1.6 21.1 705
16×2×0.75 0.6 1.7 23.5 915
19×2×0.75 0.6 1.8 24.8 1035
24×2×0.75 0.6 1.9 28.6 1320
32×2×0.75 0.6 2.0 31.7 1670
1×3×0.75 0.6 1.0 8.6 120
2×3×0.75 0.6 1.2 12.0 205
3×3×0.75 0.6 1.2 13.8 300
4×3×0.75 0.6 1.3 15.1 365
7×3×0.75 0.6 1.5 18.3 560
8×3×0.75 0.6 1.5 19.5 650
12×3×0.75 0.6 1.7 24.4 915
16×3×0.75 0.6 1.8 27.3 1185
19×3×0.75 0.6 1.9 29.0 1360
24×3×0.75 0.6 2.1 33.7 1750
1×2×1.0 0.6 1.0 8.6 125
2×2×1.0 0.6 1.2 11.1 240
4×2×1.0 0.6 1.3 14.0 345
7×2×1.0 0.6 1.5 16.9 525
8×2×1.0 0.6 1.5 18.5 600
12×2×1.0 0.6 1.6 22.3 840
16×2×1.0 0.6 1.6 24.9 1095
19×2×1.0 0.6 1.8 26.5 1255
24×2×1.0 0.6 1.9 30.5 1605
32×2×1.0 0.6 2.0 33.8 2030
1×3×1.0 0.6 1.0 9.1 140
3×3×1.0 0.6 1.3 14.7 360
4×3×1.0 0.6 1.3 16.1 440
7×3×1.0 0.6 1.6 19.7 695
12×3×1.0 0.6 1.7 26.0 1115
16×3×1.0 0.6 1.8 29.2 1455
19×3×1.0 0.6 1.9 31.0 1675
24×3×1.0 0.6 2.1 36.1 2145
1×2×1.5 0.7 1.0 9.6 155
2×2×1.5 0.7 1.3 12.6 310
4×2×1.5 0.7 1.4 16.1 450
7×2×1.5 0.7 1.6 19.4 690
8×2×1.5 0.7 1.6 21.3 780
12×2×1.5 0.7 1.7 25.7 1100
16×2×1.5 0.7 1.9 28.9 1450
19×2×1.5 0.7 2.0 30.5 1645
24×2×1.5 0.7 2.2 35.3 2115
32×2×1.5 0.7 2.3 39.1 2680
1×3×1.5 0.7 1.1 10.1 175
2×3×1.5 0.7 1.3 14.5 320
3×3×1.5 0.7 1.3 16.8 470
4×3×1.5 0.7 1.4 18.4 580
7×3×1.5 0.7 1.7 22.6 910
8×3×1.5 0.7 1.7 23.5 1030
12×3×1.5 0.7 1.9 30.0 1475
16×3×1.5 0.7 2.0 33.6 1925
19×3×1.5 0.7 2.1 35.7 2210
24×3×1.5 0.7 2.4 41.7 2855
1×2×2.5 0.7 1.1 10.5 190
1×3×2.5 0.7 1.3 11.0 220
