Water Blocked
S15 BFOU-HCF(i) 250 V
Applications
Marine cables are fire resistant, flame retardant, low smoke and halogen free, used for emergency
instrumentation, communication, control and alarm systems that need to be operational during a 1100℃
hydrocarbon fire.
Standards
IEC 60092-376
IEC 60092-360
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606
IEC 60331-21
VG 95218 part 29

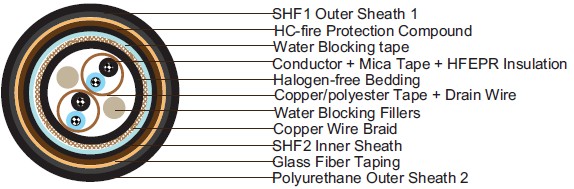

Construction
Conductors: Circular tinned annealed stranded copper wire to IEC 60228 class 2.
Insulation: Mica tape + Halogen free EPR compound.
Twinning: Colour coded cores twisted together.
Individual Shielding: Each pairs/triples are screened by copper backed polyester tape in contact with a
stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered
tape or by numbers printed directly on the insulated conductors.
Filler: Water blocking fillers, if required.
Bedding: Halogen free compound, PETP wrapping tape will be applied over the bedding, if required.
Armour: Tinned copper wire braid, PETP wrapping tape will be applied over the braiding, if required.
Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
Inner Sheath: Halogen free thermosetting compound, SHF2.
HC-fire protection: Extruded thermoplastic fire protection compound.
Taping: Lapped glass fibre tape.
Outer Sheath 1: Flame retardant halogen-free thermoplastic compound, type SHF1, coloured grey (blue for
intrinsically safe).
Outer Sheath 2: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low
smoke standard.
Electrical Characteristics| Nominal Cross Section Area | mm² | 1.5 |
| Nominal Conductor Diameter | mm | 1.6 |
| Maximum Resistant@20℃ | Ω/km | 12.9 |
| Mutual Capacitance | nF/km | 100 |
| Nominal Inductance@1KHz | MH/km | 0.673 |
| Operating Voltage | V | 250 |
Bending Radius : 20×OD (during installation); 12×OD (fixed installed).
Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight| Construction No. of elements×No. of cores in element×Cross section |
Nominal Insulation Thickness |
Nominal Diameter Over Bedding |
Nominal Diameter Over Inner Sheath |
Nominal Overall Diameter |
Nominal Weight |
| mm² | mm | mm | mm | mm | kg/km |
| 1×2×1.5 | 0.7 | 9.0 | 13.1 | 41.5±2 | 1974 |
| 2×2×1.5 | 0.7 | 13.0 | 16.8 | 46.5±2 | 2573 |
| 4×2×1.5 | 0.7 | 15.0 | 20.7 | 49.5±2 | 2972 |
| 8×2×1.5 | 0.7 | 21.0 | 26.4 | 56.0±2 | 3875 |
| 12×2×1.5 | 0.7 | 25.0 | 31.2 | 65.0±2 | 5460 |
