S3 or S3/S7 BFOU(i) 250V



Applications

Marine cables are fire resistant, flame retardant, low smoke,halogen free and mud resistant, used for

instrumentation, communication, control and alarm systems.

Standards

IEC 60092-376

IEC 60092-360

IEC 60332-1

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606

VG 95218 part 29

RFOU

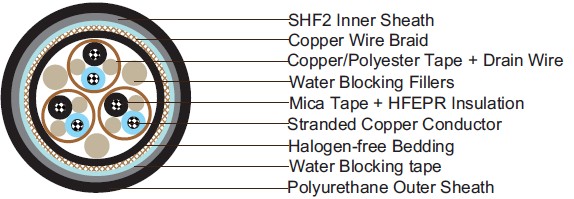

Construction

Conductors: Circular tinned annealed stranded copper wire to IEC 60228 class 2.

Insulation: Mica tape + Halogen free EPR compound.

Twinning: Colour coded cores twisted together.

Filler: Water blocking fillers, if required.

Individual Shielding: Each pairs/triples are screened by copper backed polyester tape in contact with a

stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered

tape or by numbers printed directly on the insulated conductors.

Filler: Water blocking fillers, if required.

Bedding: Halogen free compound, PETP wrapping tape will be applied over the bedding, if required.

Armour: Tinned copper wire braid, PETP wrapping tape will be applied over the braiding, if required.

Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.

Inner Sheath: Halogen free thermosetting compound, SHF2 (for TYPE S3). Halogen free MUD resistant

thermosetting compound, SHF MUD (for TYPE S3/S7), coloured grey (blue for intrinsically safe). l

Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low

smoke standard.

Electrical Characteristics

Mechanical and Thermal Properties

Bending Radius : 8×OD (during installation); 6×OD (fixed installed).

Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight
Construction No. of elements×No. of cores in element×Cross section mm² Nominal Insulation Thickness
mm		 Nominal Sheath Thickness
mm		 Nominal Inner Sheath Thickness
mm		 Nominal Outer Sheath Thickness
mm		 Nominal Overall Diameter
mm		 Nominal Weight kg/km
1×2×0.75 0.6 1.1 1.2 1 14.1±2 236
2×2×0.75 0.6 1.1 1.3 1 18.7±2 425
3×2×0.75 0.6 1.1 1.4 1 19.5±2 567
4×2×0.75 0.6 1.1 1.4 1 20.6±2 641
5×2×0.75 0.6 1.1 1.5 1 22.2±2 740
6×2×0.75 0.6 1.1 1.5 1 23.7±2 845
7×2×0.75 0.6 1.1 1.5 1 23.7±2 872
8×2×0.75 0.6 1.1 1.6 1 25.6±2 950
9×2×0.75 0.6 1.1 1.7 1 27.1±2 1050
10×2×0.75 0.6 1.1 1.7 1 28.2±2 1082
12×2×0.75 0.6 1.1 1.7 1 28.8±2 1202
14×2×0.75 0.6 1.1 1.8 1 30.2±2 1265
15×2×0.75 0.6 1.1 1.8 1 32.0±2 1370
16×2×0.75 0.6 1.1 1.9 1 32.6±2 1486
18×2×0.75 0.6 1.1 1.9 1 34.1±2 1549
19×2×0.75 0.6 1.2 1.9 1 34.7±2 1654
20×2×0.75 0.6 1.2 2 1 36.1±2 1785
21×2×0.75 0.6 1.2 2 1 37.0±2 1853
23×2×0.75 0.6 1.2 2 1 37.5±2 1990
24×2×0.75 0.6 1.2 2.1 1 39.7±2 2079
27×2×0.75 0.6 1.2 2.2 1 40.7±2 2273
30×2×0.75 0.6 1.2 2.2 1 41.9±2 2452
33×2×0.75 0.6 1.2 2.3 1 43.5±2 2662
37×2×0.75 0.6 1.2 2.3 1 44.7±2 2861
1×3×0.75 0.6 1.1 1.1 1 13.9±2 257
2×3×0.75 0.6 1.1 1.4 1 17.5±2 441
3×3×0.75 0.6 1.1 1.4 1 20.4±2 609
4×3×0.75 0.6 1.1 1.4 1 21.7±2 709
7×3×0.75 0.6 1.1 1.6 1 25.6±2 1008
8×3×0.75 0.6 1.1 1.7 1 27.0±2 1029
12×3×0.75 0.6 1.3 1.8 1 31.6±2 1507
16×3×0.75 0.6 1.4 1.9 1 34.6±2 1859
19×3×0.75 0.6 1.4 2.1 1 36.4±2 2084
24×3×0.75 0.6 1.8 2.2 1 41.6±2 2709
1×2×1.0 0.6 1.1 1.2 1 14.5±2 257
2×2×1.0 0.6 1.1 1.4 1 19.6±2 473
3×2×1.0 0.6 1.1 1.4 1 20.3±2 630
4×2×1.0 0.6 1.1 1.4 1 21.3±2 656
5×2×1.0 0.6 1.1 1.5 1 23.1±2 966
6×2×1.0 0.6 1.1 1.6 1 24.8±2 998
7×2×1.0 0.6 1.1 1.6 1 24.8±2 903
8×2×1.0 0.6 1.1 1.6 1 26.7±2 1034
9×2×1.0 0.6 1.1 1.7 1 28.3±2 1192
10×2×1.0 0.6 1.1 1.7 1 29.4±2 1229
12×2×1.0 0.6 1.1 1.8 1 30.3±2 1365
14×2×1.0 0.6 1.1 1.8 1 31.5±2 1449
15×2×1.0 0.6 1.1 1.9 1 33.6±2 1586
16×2×1.0 0.6 1.1 1.9 1 34.1±2 1701
18×2×1.0 0.6 1.2 2 1 36.2±2 1832
19×2×1.0 0.6 1.2 2 1 36.5±2 1922
20×2×1.0 0.6 1.2 2.1 1 38.0±2 2074
21×2×1.0 0.6 1.2 2.1 1 39.3±2 2242
23×2×1.0 0.6 1.2 2.1 1 39.9±2 2410
24×2×1.0 0.6 1.2 2.2 1 41.8±2 2452
27×2×1.0 0.6 1.2 2.2 1 42.6±2 2625
30×2×1.0 0.6 1.2 2.3 1 44.1±2 2856
33×2×1.0 0.6 1.2 2.3 1 45.6±2 3087
37×2×1.0 0.6 1.4 2.4 1 47.4±2 3392
1×3×1.0 0.6 1.1 1.2 1 14.6±2 289
2×3×1.0 0.6 1.1 1.4 1 20.8±2 672
3×3×1.0 0.6 1.1 1.5 1 21.3±2 698
4×3×1.0 0.6 1.1 1.5 1 22.9±2 814
5×3×1.0 0.6 1.1 1.6 1 24.8±2 1013
6×3×1.0 0.6 1.1 1.7 1 27.4±2 1192
7×3×1.0 0.6 1.1 1.7 1 27.4±2 1239
8×3×1.0 0.6 1.1 1.7 1 29.0±2 1334
9×3×1.0 0.6 1.1 1.8 1 30.9±2 1523
10×3×1.0 0.6 1.1 1.9 1 33.1±2 1528
12×3×1.0 0.6 1.1 1.9 1 34.0±2 1769
14×3×1.0 0.6 1.2 2 1 35.8±2 1911
15×3×1.0 0.6 1.2 2 1 36.8±2 2032
16×3×1.0 0.6 1.2 2.1 1 38.0±2 2210
18×3×1.0 0.6 1.2 2.1 1 40.1±2 2426
19×3×1.0 0.6 1.2 2.2 1 40.6±2 2473
20×3×1.0 0.6 1.2 2.2 1 41.6±2 2720
21×3×1.0 0.6 1.2 2.2 1 42.4±2 2819
23×3×1.0 0.6 1.2 2.3 1 44.0±2 3082
24×3×1.0 0.6 1.2 2.3 1 44.8±2 3302
27×3×1.0 0.6 1.4 2.4 1 47.3±2 3418
30×3×1.0 0.6 1.4 2.5 1 49.4±2 3743
32×3×1.0 0.6 1.4 2.5 1 50.6±2 3943
1×2×1.5 0.7 1.1 1.2 1 15.5±2 310
2×2×1.5 0.7 1.1 1.4 1 21.2±2 572
3×2×1.5 0.7 1.1 1.5 1 22.2±2 761
4×2×1.5 0.7 1.1 1.5 1 23.5±2 809
5×2×1.5 0.7 1.1 1.6 1 25.4±2 1024
6×2×1.5 0.7 1.1 1.7 1 27.4±2 1187
7×2×1.5 0.7 1.1 1.7 1 27.4±2 1229
8×2×1.5 0.7 1.1 1.7 1 29.5±2 1286
9×2×1.5 0.7 1.1 1.8 1 31.4±2 1475
10×2×1.5 0.7 1.1 1.9 1 32.9±2 1512
12×2×1.5 0.7 1.1 1.9 1 33.6±2 1764
14×2×1.5 0.7 1.2 2 1 35.6±2 1838
15×2×1.5 0.7 1.2 2.1 1 38.0±2 2006
16×2×1.5 0.7 1.2 2.1 1 38.9±2 2158
18×2×1.5 0.7 1.2 2.2 1 40.9±2 2373
19×2×1.5 0.7 1.2 2.2 1 41.3±2 2515
20×2×1.5 0.7 1.2 2.2 1 42.8±2 2667
21×2×1.5 0.7 1.2 2.3 1 44.1±2 2793
23×2×1.5 0.7 1.2 2.3 1 44.7±2 3008
24×2×1.5 0.7 1.4 2.4 1 47.2±2 3234
27×2×1.5 0.7 1.4 2.4 1 48.1±2 3313
30×2×1.5 0.7 1.4 2.5 1 49.8±2 3612
32×2×1.5 0.7 1.4 2.6 1 51.0±2 3869
33×2×1.5 0.7 1.4 2.6 1 51.7±2 3927
37×2×1.5 0.7 1.4 2.6 1 53.2±2 4242
1×3×1.5 0.7 1.1 1.3 1 15.6±2 341
2×3×1.5 0.7 1.1 1.5 1 20.5±2 588
3×3×1.5 0.7 1.1 1.5 1 23.4±2 840
4×3×1.5 0.7 1.1 1.6 1 25.7±2 1024
5×3×1.5 0.7 1.1 1.7 1 27.4±2 1255
6×3×1.5 0.7 1.1 1.8 1 30.3±2 1475
7×3×1.5 0.7 1.1 1.8 1 30.3±2 1544
8×3×1.5 0.7 1.1 1.8 1 32.2±2 1664
9×3×1.5 0.7 1.2 1.9 1 34.6±2 1927
10×3×1.5 0.7 1.2 2 1 37.1±2 2032
12×3×1.5 0.7 1.2 2.1 1 38.8±2 2221
14×3×1.5 0.7 1.2 2.1 1 40.3±2 2478
15×3×1.5 0.7 1.2 2.2 1 41.7±2 2657
16×3×1.5 0.7 1.2 2.2 1 42.8±2 2914
18×3×1.5 0.7 1.2 2.3 1 44.9±2 3050
19×3×1.5 0.7 1.2 2.3 1 45.3±2 3360
20×3×1.5 0.7 1.4 2.4 1 46.9±2 3470
21×3×1.5 0.7 1.4 2.4 1 47.8±2 3602
23×3×1.5 0.7 1.4 2.5 1 49.7±2 3943
24×3×1.5 0.7 1.4 2.5 1 50.6±2 4121
27×3×1.5 0.7 1.4 2.6 1 53.1±2 4321
30×3×1.5 0.7 1.4 2.7 1 55.5±2 4736
32×3×1.5 0.7 1.6 2.8 1 57.5±2 5093
1×2×2.5 0.7 1.1 1.3 1 16.0±2 357
2×2×2.5 0.7 1.1 1.5 1 20.5±2 588
3×2×2.5 0.7 1.1 1.5 1 23.6±2 908
4×2×2.5 0.7 1.1 1.6 1 25.2±2 1061
5×2×2.5 0.7 1.1 1.7 1 27.3±2 1244
6×2×2.5 0.7 1.1 1.7 1 29.4±2 1439
7×2×2.5 0.7 1.1 1.7 1 29.4±2 1502
8×2×2.5 0.7 1.1 1.8 1 31.9±2 1638
9×2×2.5 0.7 1.1 1.9 1 33.9±2 1869
10×2×2.5 0.7 1.2 2 1 35.8±2 1864
12×2×2.5 0.7 1.2 2 1 36.6±2 2063
14×2×2.5 0.7 1.2 2.1 1 38.9±2 2389
15×2×2.5 0.7 1.2 2.2 1 41.5±2 2604
16×2×2.5 0.7 1.2 2.2 1 42.1±2 2720
18×2×2.5 0.7 1.2 2.3 1 44.3±2 2966
19×2×2.5 0.7 1.2 2.3 1 44.7±2 3077
20×2×2.5 0.7 1.4 2.4 1 46.8±2 3402
21×2×2.5 0.7 1.4 2.4 1 48.1±2 3544
23×2×2.5 0.7 1.4 2.5 1 48.9±2 3738
24×2×2.5 0.7 1.4 2.5 1 51.1±2 3843
27×2×2.5 0.7 1.4 2.6 1 52.3±2 4200
30×2×2.5 0.7 1.4 2.7 1 54.2±2 4589
33×2×2.5 0.7 1.4 2.7 1 56.1±2 4972
37×2×2.5 0.7 1.6 2.8 1 58.4±2 5486
1×3×2.5 0.7 1.1 1.2 1 16.5±2 399
2×3×2.5 0.7 1.1 1.6 1 24.5±2 998
3×3×2.5 0.7 1.1 1.6 1 25.4±2 1108
4×3×2.5 0.7 1.1 1.7 1 27.3±2 1313
5×3×2.5 0.7 1.1 1.7 1 29.4±2 1533
6×3×2.5 0.7 1.1 1.9 1 32.7±2 1822
7×3×2.5 0.7 1.1 1.9 1 32.7±2 1922
8×3×2.5 0.7 1.2 2 1 35.3±2 2126
9×3×2.5 0.7 1.2 2 1 37.4±2 2405
10×3×2.5 0.7 1.2 2.2 1 40.8±2 2525
12×3×2.5 0.7 1.2 2.2 1 42.0±2 2819
14×3×2.5 0.7 1.2 2.3 1 43.9±2 3150
15×3×2.5 0.7 1.2 2.3 1 45.1±2 3350
16×3×2.5 0.7 1.4 2.4 1 46.9±2 3591
18×3×2.5 0.7 1.4 2.5 1 49.2±2 3927
19×3×2.5 0.7 1.4 2.5 1 49.6±2 4079
20×3×2.5 0.7 1.4 2.5 1 50.9±2 4394
21×3×2.5 0.7 1.4 2.6 1 52.0±2 4589
23×3×2.5 0.7 1.4 2.7 1 54.1±2 4998
24×3×2.5 0.7 1.4 2.7 1 55.0±2 5024
27×3×2.5 0.7 1.6 2.8 1 58.2±2 5602
30×3×2.5 0.7 1.6 2.9 1 60.8±2 6148
32×3×2.5 0.7 1.6 3 1 62.6±2 6526
