S3 or S3/S7 BFOU(i) 250V



Applications :

Marine cables are fire resistant, flame retardant, low smoke,halogen free and mud resistant, used for

instrumentation, communication, control and alarm systems.

Standards :

IEC 60092-376

IEC 60092-360

IEC 60332-1

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606

BS 6883&BS7917 Offshore & Marine cablesRFOU

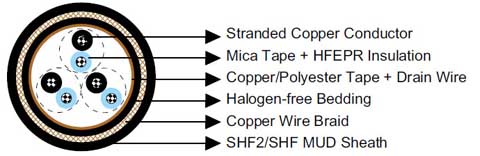

Construction :

Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2.

Insulation : Mica tape + Halogen free EPR compound.

Twinning : Colour coded cores twisted together.

Individual Shielding : Each pairs/triples are screened by copper backed polyester tape in contact with a

stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered

tape or by numbers printed directly on the insulated conductors.

Bedding : Halogen free compound.

Armour : Tinned copper wire braid.

Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE S3). Halogen free MUD resistant

thermosetting compound, SHF MUD (for TYPE S3/S7), coloured grey (blue for intrinsically safe).

Electrical Characteristics :

Mechanical and Thermal Properties :

Bending Radius : 8×OD (during installation); 6×OD (fixed installed).

Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight :

Construction No. of elements×No. of cores in element×Cross section
mm²		 Nominal Insulation Thickness
mm		 Nominal Sheath Thickness
mm		 Nominal Overall Diameter
mm		 Nominal Weight
kg/km
Inner Outer
1×2×0.75 0.6 1.1 1.2 12.1 225
2×2×0.75 0.6 1.1 1.3 16.7 405
3×2×0.75 0.6 1.1 1.4 17.5 540
4×2×0.75 0.6 1.1 1.4 18.6 610
5×2×0.75 0.6 1.1 1.5 20.2 705
6×2×0.75 0.6 1.1 1.5 21.7 805
7×2×0.75 0.6 1.1 1.5 21.7 830
8×2×0.75 0.6 1.1 1.6 23.6 905
9×2×0.75 0.6 1.1 1.7 25.1 1000
10×2×0.75 0.6 1.1 1.7 26.2 1030
12×2×0.75 0.6 1.1 1.7 26.8 1145
14×2×0.75 0.6 1.1 1.8 28.2 1205
15×2×0.75 0.6 1.1 1.8 30.0 1305
16×2×0.75 0.6 1.1 1.9 30.6 1415
18×2×0.75 0.6 1.1 1.9 32.1 1475
19×2×0.75 0.6 1.2 1.9 32.7 1575
20×2×0.75 0.6 1.2 2.0 34.1 1700
21×2×0.75 0.6 1.2 2.0 35.0 1765
23×2×0.75 0.6 1.2 2.0 35.5 1895
24×2×0.75 0.6 1.2 2.1 37.7 1980
27×2×0.75 0.6 1.2 2.2 38.7 2165
30×2×0.75 0.6 1.2 2.2 39.9 2335
33×2×0.75 0.6 1.2 2.3 41.5 2535
37×2×0.75 0.6 1.2 2.3 42.7 2725
1×3×0.75 0.6 1.1 1.1 11.9 245
2×3×0.75 0.6 1.1 1.4 15.5 420
3×3×0.75 0.6 1.1 1.4 18.4 580
4×3×0.75 0.6 1.1 1.4 19.7 675
7×3×0.75 0.6 1.1 1.6 23.6 960
8×3×0.75 0.6 1.1 1.7 25.0 980
12×3×0.75 0.6 1.3 1.8 29.6 1435
16×3×0.75 0.6 1.4 1.9 32.6 1770
19×3×0.75 0.6 1.4 2.1 34.4 1985
24×3×0.75 0.6 1.8 2.2 39.6 2580
1×2×1.0 0.6 1.1 1.2 12.5 245
2×2×1.0 0.6 1.1 1.4 17.6 450
3×2×1.0 0.6 1.1 1.4 18.3 600
4×2×1.0 0.6 1.1 1.4 19.3 625
5×2×1.0 0.6 1.1 1.5 21.1 920
6×2×1.0 0.6 1.1 1.6 22.8 950
7×2×1.0 0.6 1.1 1.6 22.8 860
8×2×1.0 0.6 1.1 1.6 24.7 985
9×2×1.0 0.6 1.1 1.7 26.3 1135
10×2×1.0 0.6 1.1 1.7 27.4 1170
12×2×1.0 0.6 1.1 1.8 28.3 1300
14×2×1.0 0.6 1.1 1.8 29.5 1380
15×2×1.0 0.6 1.1 1.9 31.6 1510
16×2×1.0 0.6 1.1 1.9 32.1 1620
18×2×1.0 0.6 1.2 2.0 34.2 1745
19×2×1.0 0.6 1.2 2.0 34.5 1830
20×2×1.0 0.6 1.2 2.1 36.0 1975
21×2×1.0 0.6 1.2 2.1 37.3 2135
23×2×1.0 0.6 1.2 2.1 37.9 2295
24×2×1.0 0.6 1.2 2.2 39.8 2335
27×2×1.0 0.6 1.2 2.2 40.6 2500
30×2×1.0 0.6 1.2 2.3 42.1 2720
33×2×1.0 0.6 1.2 2.3 43.6 2940
37×2×1.0 0.6 1.4 2.4 45.4 3230
1×3×1.0 0.6 1.1 1.2 12.6 275
2×3×1.0 0.6 1.1 1.4 18.8 640
3×3×1.0 0.6 1.1 1.5 19.3 665
4×3×1.0 0.6 1.1 1.5 20.9 775
5×3×1.0 0.6 1.1 1.6 22.8 965
6×3×1.0 0.6 1.1 1.7 25.4 1135
7×3×1.0 0.6 1.1 1.7 25.4 1180
8×3×1.0 0.6 1.1 1.7 27.0 1270
9×3×1.0 0.6 1.1 1.8 28.9 1450
10×3×1.0 0.6 1.1 1.9 31.1 1455
12×3×1.0 0.6 1.1 1.9 32.0 1685
14×3×1.0 0.6 1.2 2.0 33.8 1820
15×3×1.0 0.6 1.2 2.0 34.8 1935
16×3×1.0 0.6 1.2 2.1 36.0 2105
18×3×1.0 0.6 1.2 2.1 38.1 2310
19×3×1.0 0.6 1.2 2.2 38.6 2355
20×3×1.0 0.6 1.2 2.2 39.6 2590
21×3×1.0 0.6 1.2 2.2 40.4 2685
23×3×1.0 0.6 1.2 2.3 42.0 2935
24×3×1.0 0.6 1.2 2.3 42.8 3145
27×3×1.0 0.6 1.4 2.4 45.3 3255
30×3×1.0 0.6 1.4 2.5 47.4 3565
32×3×1.0 0.6 1.4 2.5 48.6 3755
1×2×1.5 0.7 1.1 1.2 13.5 295
2×2×1.5 0.7 1.1 1.4 19.2 545
3×2×1.5 0.7 1.1 1.5 20.2 725
4×2×1.5 0.7 1.1 1.5 21.5 770
5×2×1.5 0.7 1.1 1.6 23.4 975
6×2×1.5 0.7 1.1 1.7 25.4 1130
7×2×1.5 0.7 1.1 1.7 25.4 1170
8×2×1.5 0.7 1.1 1.7 27.5 1225
9×2×1.5 0.7 1.1 1.8 29.4 1405
10×2×1.5 0.7 1.1 1.9 30.9 1440
12×2×1.5 0.7 1.1 1.9 31.6 1680
14×2×1.5 0.7 1.2 2.0 33.6 1750
15×2×1.5 0.7 1.2 2.1 36.0 1910
16×2×1.5 0.7 1.2 2.1 36.9 2055
18×2×1.5 0.7 1.2 2.2 38.9 2260
19×2×1.5 0.7 1.2 2.2 39.3 2395
20×2×1.5 0.7 1.2 2.2 40.8 2540
21×2×1.5 0.7 1.2 2.3 42.1 2660
23×2×1.5 0.7 1.2 2.3 42.7 2865
24×2×1.5 0.7 1.4 2.4 45.2 3080
27×2×1.5 0.7 1.4 2.4 46.1 3155
30×2×1.5 0.7 1.4 2.5 47.8 3440
32×2×1.5 0.7 1.4 2.6 49.0 3685
33×2×1.5 0.7 1.4 2.6 49.7 3740
37×2×1.5 0.7 1.4 2.6 51.2 4040
1×3×1.5 0.7 1.1 1.3 13.6 325
2×3×1.5 0.7 1.1 1.5 18.5 560
3×3×1.5 0.7 1.1 1.5 21.4 800
4×3×1.5 0.7 1.1 1.6 23.7 975
5×3×1.5 0.7 1.1 1.7 25.4 1195
6×3×1.5 0.7 1.1 1.8 28.3 1405
7×3×1.5 0.7 1.1 1.8 28.3 1470
8×3×1.5 0.7 1.1 1.8 30.2 1585
9×3×1.5 0.7 1.2 1.9 32.6 1835
10×3×1.5 0.7 1.2 2.0 35.1 1935
12×3×1.5 0.7 1.2 2.1 36.8 2115
14×3×1.5 0.7 1.2 2.1 38.3 2360
15×3×1.5 0.7 1.2 2.2 39.7 2530
16×3×1.5 0.7 1.2 2.2 40.8 2775
18×3×1.5 0.7 1.2 2.3 42.9 2905
19×3×1.5 0.7 1.2 2.3 43.3 3200
20×3×1.5 0.7 1.4 2.4 44.9 3305
21×3×1.5 0.7 1.4 2.4 45.8 3430
23×3×1.5 0.7 1.4 2.5 47.7 3755
24×3×1.5 0.7 1.4 2.5 48.6 3925
27×3×1.5 0.7 1.4 2.6 51.1 4115
30×3×1.5 0.7 1.4 2.7 53.5 4510
32×3×1.5 0.7 1.6 2.8 55.5 4850
1×2×2.5 0.7 1.1 1.3 14.0 340
2×2×2.5 0.7 1.1 1.5 18.5 560
3×2×2.5 0.7 1.1 1.5 21.6 865
4×2×2.5 0.7 1.1 1.6 23.2 1010
5×2×2.5 0.7 1.1 1.7 25.3 1185
6×2×2.5 0.7 1.1 1.7 27.4 1370
7×2×2.5 0.7 1.1 1.7 27.4 1430
8×2×2.5 0.7 1.1 1.8 29.9 1560
9×2×2.5 0.7 1.1 1.9 31.9 1780
10×2×2.5 0.7 1.2 2.0 33.8 1775
12×2×2.5 0.7 1.2 2.0 34.6 1965
14×2×2.5 0.7 1.2 2.1 36.9 2275
15×2×2.5 0.7 1.2 2.2 39.5 2480
16×2×2.5 0.7 1.2 2.2 40.1 2590
18×2×2.5 0.7 1.2 2.3 42.3 2825
19×2×2.5 0.7 1.2 2.3 42.7 2930
20×2×2.5 0.7 1.4 2.4 44.8 3240
21×2×2.5 0.7 1.4 2.4 46.1 3375
23×2×2.5 0.7 1.4 2.5 46.9 3560
24×2×2.5 0.7 1.4 2.5 49.1 3660
27×2×2.5 0.7 1.4 2.6 50.3 4000
30×2×2.5 0.7 1.4 2.7 52.2 4370
33×2×2.5 0.7 1.4 2.7 54.1 4735
37×2×2.5 0.7 1.6 2.8 56.4 5225
1×3×2.5 0.7 1.1 1.2 14.5 380
2×3×2.5 0.7 1.1 1.6 22.5 950
3×3×2.5 0.7 1.1 1.6 23.4 1055
4×3×2.5 0.7 1.1 1.7 25.3 1250
5×3×2.5 0.7 1.1 1.7 27.4 1460
6×3×2.5 0.7 1.1 1.9 30.7 1735
7×3×2.5 0.7 1.1 1.9 30.7 1830
8×3×2.5 0.7 1.2 2.0 33.3 2025
9×3×2.5 0.7 1.2 2.0 35.4 2290
10×3×2.5 0.7 1.2 2.2 38.8 2405
12×3×2.5 0.7 1.2 2.2 40.0 2685
14×3×2.5 0.7 1.2 2.3 41.9 3000
15×3×2.5 0.7 1.2 2.3 43.1 3190
16×3×2.5 0.7 1.4 2.4 44.9 3420
18×3×2.5 0.7 1.4 2.5 47.2 3740
19×3×2.5 0.7 1.4 2.5 47.6 3885
20×3×2.5 0.7 1.4 2.5 48.9 4185
21×3×2.5 0.7 1.4 2.6 50.0 4370
23×3×2.5 0.7 1.4 2.7 52.1 4760
24×3×2.5 0.7 1.4 2.7 53.0 4785
27×3×2.5 0.7 1.6 2.8 56.2 5335
30×3×2.5 0.7 1.6 2.9 58.8 5855
32×3×2.5 0.7 1.6 3.0 60.6 6215
