Water Blocked

S4 or S4/S8 BFOU(c) 250V



Applications

Marine cables are fire resistant, flame retardant, low smoke, halogen free and mud resistant, used for

instrumentation, communication, control and alarm systems.

Standards

IEC 60092-376

IEC 60092-360

IEC 60332-1

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606

IEC 60331-21

VG 95218 part 29

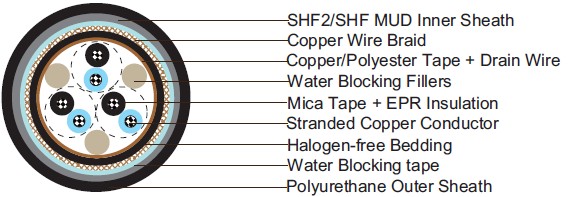

RFOU

Conductors: Circular tinned annealed stranded copper wire to IEC 60228 class 2.

Insulation: Mica tape + Halogen free EPR compound.

Twinning: Colour coded cores twisted together.

Filler: Water blocking fillers, if required.

Collective Shielding: Pairs/triples are layed up and collectively screened by copper backed polyester tape in

contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers

printed directly on the insulated conductors.

Bedding: Halogen free compound, PETP wrapping tape will be applied over the bedding, if required.

lArmour: Tinned copper wire braid, PETP wrapping tape will be applied over the braiding, if required.

lWater Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.

Inner Sheath: Halogen free thermosetting compound, SHF2 (for TYPE S4). Halogen free MUD resistant

thermosetting compound, SHF MUD (for TYPE S4/S8), coloured grey (blue for intrinsically safe).

Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low

smoke standard.

Electrical Characteristics Mechanical and Thermal Properties

Bending Radius : 8×OD (during installation); 6×OD (fixed installed).

Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight
Construction No. of elements×No. of cores in element×Cross section
mm²		 Nominal Insulation Thickness
mm		 Nominal Bedding Thickness
mm		 Nominal Inner Sheath Thickness
mm		 Nominal Outer Sheath Thickness
mm		 Nominal Overall Diameter
mm		 Nominal Weight kg/km
1×2×0.75 0.6 1.1 1.2 1 14.1±2 242
2×2×0.75 0.6 1.1 1.3 1 18.4±2 357
3×2×0.75 0.6 1.1 1.4 1 19.2±2 520
4×2×0.75 0.6 1.1 1.4 1 20.2±2 583
5×2×0.75 0.6 1.1 1.5 1 21.8±2 672
6×2×0.75 0.6 1.1 1.5 1 23.2±2 761
7×2×0.75 0.6 1.1 1.5 1 23.2±2 777
8×2×0.75 0.6 1.1 1.6 1 25.1±2 845
9×2×0.75 0.6 1.1 1.6 1 26.3±2 924
10×2×0.75 0.6 1.1 1.7 1 27.6±2 945
12×2×0.75 0.6 1.1 1.7 1 28.2±2 998
14×2×0.75 0.6 1.1 1.7 1 29.3±2 1087
15×2×0.75 0.6 1.1 1.8 1 31.2±2 1187
16×2×0.75 0.6 1.1 1.8 1 31.7±2 1234
18×2×0.75 0.6 1.1 1.9 1 33.3±2 1339
19×2×0.75 0.6 1.1 1.9 1 33.6±2 1381
20×2×0.75 0.6 1.2 2 1 35.3±2 1549
21×2×0.75 0.6 1.2 2 1 36.1±2 1607
23×2×0.75 0.6 1.2 2 1 36.6±2 1717
24×2×0.75 0.6 1.2 2.1 1 38.8±2 1817
27×2×0.75 0.6 1.2 2.1 1 39.5±2 1943
30×2×0.75 0.6 1.2 2.2 1 40.9±2 2063
33×2×0.75 0.6 1.2 2.2 1 42.3±2 2263
37×2×0.75 0.6 1.2 2.3 1 43.7±2 2441
1×3×0.75 0.6 1.1 1.2 1 14.6±2 268
2×3×0.75 0.6 1.1 1.4 1 19.7±2 572
3×3×0.75 0.6 1.1 1.4 1 20.3±2 614
4×3×0.75 0.6 1.1 1.5 1 21.7±2 704
5×3×0.75 0.6 1.1 1.5 1 23.2±2 809
6×3×0.75 0.6 1.1 1.6 1 25.5±2 945
7×3×0.75 0.6 1.1 1.6 1 25.5±2 982
8×3×0.75 0.6 1.1 1.7 1 27.2±2 1066
9×3×0.75 0.6 1.1 1.7 1 28.7±2 1192
10×3×0.75 0.6 1.1 1.8 1 30.7±2 1197
12×3×0.75 0.6 1.1 1.8 1 31.6±2 1292
14×3×0.75 0.6 1.1 1.9 1 33.0±2 1444
15×3×0.75 0.6 1.1 1.9 1 33.9±2 1528
16×3×0.75 0.6 1.2 2 1 35.3±2 1622
18×3×0.75 0.6 1.2 2 1 36.8±2 1775
19×3×0.75 0.6 1.2 2 1 37.1±2 1838
20×3×0.75 0.6 1.2 2.1 1 38.6±2 2084
21×3×0.75 0.6 1.2 2.1 1 39.3±2 2158
23×3×0.75 0.6 1.2 2.2 1 40.8±2 2326
24×3×0.75 0.6 1.2 2.2 1 41.5±2 2357
27×3×0.75 0.6 1.2 2.3 1 43.5±2 2557
30×3×0.75 0.6 1.2 2.3 1 45.3±2 2777
32×3×0.75 0.6 1.4 2.4 1 46.9±2 2982
1×2×1.0 0.6 1.1 1.2 1 14.5±2 257
2×2×1.0 0.6 1.1 1.4 1 19.2±2 394
3×2×1.0 0.6 1.1 1.4 1 19.9±2 578
4×2×1.0 0.6 1.1 1.4 1 21.0±2 646
5×2×1.0 0.6 1.1 1.5 1 22.6±2 746
6×2×1.0 0.6 1.1 1.6 1 24.4±2 861
7×2×1.0 0.6 1.1 1.6 1 24.4±2 887
8×2×1.0 0.6 1.1 1.6 1 26.1±2 950
9×2×1.0 0.6 1.1 1.7 1 27.7±2 1045
10×2×1.0 0.6 1.1 1.7 1 28.8±2 1087
12×2×1.0 0.6 1.1 1.7 1 29.4±2 1150
14×2×1.0 0.6 1.1 1.8 1 30.9±2 1255
15×2×1.0 0.6 1.1 1.9 1 32.9±2 1370
16×2×1.0 0.6 1.1 1.9 1 33.4±2 1423
18×2×1.0 0.6 1.2 2 1 35.4±2 1575
19×2×1.0 0.6 1.2 2 1 35.7±2 1628
20×2×1.0 0.6 1.2 2 1 37.0±2 1769
21×2×1.0 0.6 1.2 2.1 1 38.5±2 1943
23×2×1.0 0.6 1.2 2.1 1 39.0±2 2074
24×2×1.0 0.6 1.2 2.2 1 40.9±2 2090
27×2×1.0 0.6 1.2 2.2 1 41.6±2 2242
30×2×1.0 0.6 1.2 2.2 1 42.9±2 2415
33×2×1.0 0.6 1.2 2.3 1 44.5±2 2620
37×2×1.0 0.6 1.4 2.4 1 46.3±2 2872
1×3×1.0 0.6 1.1 1.2 1 15.0±2 294
2×3×1.0 0.6 1.1 1.4 1 20.0±2 578
3×3×1.0 0.6 1.1 1.4 1 20.7±2 630
4×3×1.0 0.6 1.1 1.5 1 22.0±2 725
5×3×1.0 0.6 1.1 1.6 1 24.4±2 924
6×3×1.0 0.6 1.1 1.6 1 26.6±2 1071
7×3×1.0 0.6 1.1 1.6 1 26.6±2 1113
8×3×1.0 0.6 1.1 1.7 1 28.4±2 1208
9×3×1.0 0.6 1.1 1.8 1 30.2±2 1370
10×3×1.0 0.6 1.1 1.8 1 32.2±2 1355
12×3×1.0 0.6 1.1 1.9 1 33.3±2 1507
14×3×1.0 0.6 1.2 1.9 1 34.9±2 1685
15×3×1.0 0.6 1.2 2 1 36.0±2 1806
16×3×1.0 0.6 1.2 2 1 37.0±2 1853
18×3×1.0 0.6 1.2 2.1 1 39.2±2 2153
19×3×1.0 0.6 1.2 2.1 1 39.5±2 2226
20×3×1.0 0.6 1.2 2.2 1 40.7±2 2415
21×3×1.0 0.6 1.2 2.2 1 41.4±2 2499
23×3×1.0 0.6 1.2 2.2 1 42.8±2 2641
24×3×1.0 0.6 1.2 2.3 1 43.7±2 2704
27×3×1.0 0.6 1.2 2.3 1 45.7±2 2956
30×3×1.0 0.6 1.4 2.4 1 48.1±2 3281
32×3×1.0 0.6 1.4 2.5 1 49.5±2 3476
1×2×1.5 0.7 1.1 1.3 1 16.3±2 352
2×2×1.5 0.7 1.1 1.5 1 22.5±2 777
3×2×1.5 0.7 1.1 1.5 1 23.2±2 845
4×2×1.5 0.7 1.1 1.6 1 24.9±2 992
5×2×1.5 0.7 1.1 1.6 1 26.8±2 1150
6×2×1.5 0.7 1.1 1.8 1 29.8±2 1365
7×2×1.5 0.7 1.1 1.8 1 29.8±2 1423
8×2×1.5 0.7 1.1 1.8 1 31.6±2 1528
9×2×1.5 0.7 1.1 1.9 1 33.7±2 1743
10×2×1.5 0.7 1.1 2 1 36.4±2 1764
12×2×1.5 0.7 1.1 2 1 37.5±2 1948
14×2×1.5 0.7 1.2 2.1 1 39.6±2 2258
15×2×1.5 0.7 1.2 2.2 1 40.9±2 2415
16×2×1.5 0.7 1.2 2.2 1 42.0±2 2536
18×2×1.5 0.7 1.2 2.3 1 44.0±2 2762
19×2×1.5 0.7 1.2 2.3 1 44.4±2 2861
20×2×1.5 0.7 1.2 2.3 1 45.5±2 3087
21×2×1.5 0.7 1.2 2.4 1 46.9±2 3266
23×2×1.5 0.7 1.2 2.5 1 48.7±2 3570
24×2×1.5 0.7 1.2 2.5 1 49.5±2 3528
27×2×1.5 0.7 1.4 2.6 1 52.0±2 3896
30×2×1.5 0.7 1.4 2.7 1 54.3±2 4263
32×2×1.5 0.7 1.4 2.7 1 55.8±2 4499
33×2×1.5 0.7 1.4 2.5 1 50.5±2 3407
37×2×1.5 0.7 1.4 2.6 1 52.2±2 3691
1×3×1.5 0.7 1.1 1.3 1 16.3±2 352
2×3×1.5 0.7 1.1 1.5 1 22.5±2 777
3×3×1.5 0.7 1.1 1.5 1 23.2±2 845
4×3×1.5 0.7 1.1 1.6 1 24.9±2 992
5×3×1.5 0.7 1.1 1.6 1 26.8±2 1150
6×3×1.5 0.7 1.1 1.8 1 29.8±2 1365
7×3×1.5 0.7 1.1 1.8 1 29.8±2 1423
8×3×1.5 0.7 1.1 1.8 1 31.6±2 1528
9×3×1.5 0.7 1.1 1.9 1 33.7±2 1743
10×3×1.5 0.7 1.2 2 1 36.4±2 1764
12×3×1.5 0.7 1.2 2 1 37.5±2 1948
14×3×1.5 0.7 1.2 2.1 1 39.6±2 2258
15×3×1.5 0.7 1.2 2.2 1 40.9±2 2415
16×3×1.5 0.7 1.2 2.2 1 42.0±2 2525
18×3×1.5 0.7 1.2 2.3 1 44.0±2 2762
19×3×1.5 0.7 1.2 2.3 1 44.4±2 2846
20×3×1.5 0.7 1.2 2.3 1 45.5±2 3087
21×3×1.5 0.7 1.4 2.4 1 46.9±2 3266
23×3×1.5 0.7 1.4 2.5 1 48.7±2 3570
24×3×1.5 0.7 1.4 2.5 1 49.5±2 3602
27×3×1.5 0.7 1.4 2.6 1 52.0±2 3896
30×3×1.5 0.7 1.4 2.7 1 54.3±2 4263
32×3×1.5 0.7 1.4 2.7 1 55.8±2 4499
1×2×2.5 0.7 1.1 1.3 1 16.5±2 352
2×2×2.5 0.7 1.1 1.5 1 22.4±2 777
3×2×2.5 0.7 1.1 1.5 1 23.3±2 840
4×2×2.5 0.7 1.1 1.6 1 24.8±2 977
5×2×2.5 0.7 1.1 1.6 1 26.7±2 1129
6×2×2.5 0.7 1.1 1.7 1 28.9±2 1307
7×2×2.5 0.7 1.1 1.7 1 28.9±2 1355
8×2×2.5 0.7 1.1 1.8 1 31.3±2 1475
9×2×2.5 0.7 1.1 1.9 1 33.3±2 1664
10×2×2.5 0.7 1.2 2 1 35.2±2 1685
12×2×2.5 0.7 1.2 2 1 36.0±2 1832
14×2×2.5 0.7 1.2 2 1 37.6±2 2016
15×2×2.5 0.7 1.2 2.2 1 40.8±2 2315
16×2×2.5 0.7 1.2 2.2 1 41.4±2 2342
18×2×2.5 0.7 1.2 2.3 1 43.5±2 2625
19×2×2.5 0.7 1.2 2.3 1 43.9±2 2720
20×2×2.5 0.7 1.2 2.3 1 45.5±2 2956
21×2×2.5 0.7 1.4 2.4 1 47.2±2 3140
23×2×2.5 0.7 1.4 2.4 1 47.8±2 3376
24×2×2.5 0.7 1.4 2.5 1 50.2±2 3434
27×2×2.5 0.7 1.4 2.6 1 51.4±2 3691
30×2×2.5 0.7 1.4 2.6 1 53.0±2 4001
33×2×2.5 0.7 1.4 2.7 1 55.1±2 4352
37×2×2.5 0.7 1.4 2.8 1 56.9±2 4725
1×3×2.5 0.7 1.1 1.3 1 17.1±2 404
2×3×2.5 0.7 1.1 1.5 1 24.0±2 924
3×3×2.5 0.7 1.1 1.6 1 25.0±2 1040
4×3×2.5 0.7 1.1 1.6 1 26.6±2 1208
5×3×2.5 0.7 1.1 1.7 1 28.9±2 1418
6×3×2.5 0.7 1.1 1.8 1 32.0±2 1675
7×3×2.5 0.7 1.1 1.8 1 32.0±2 1754
8×3×2.5 0.7 1.1 1.9 1 34.2±2 1911
9×3×2.5 0.7 1.2 2 1 36.8±2 2210
10×3×2.5 0.7 1.2 2.1 1 39.9±2 2300
12×3×2.5 0.7 1.2 2.2 1 41.2±2 2578
14×3×2.5 0.7 1.2 2.2 1 42.9±2 2851
15×3×2.5 0.7 1.2 2.3 1 44.3±2 3050
16×3×2.5 0.7 1.2 2.3 1 45.5±2 3213
18×3×2.5 0.7 1.4 2.4 1 48.1±2 3549
19×3×2.5 0.7 1.4 2.5 1 48.7±2 3707
20×3×2.5 0.7 1.4 2.5 1 49.9±2 3990
21×3×2.5 0.7 1.4 2.5 1 50.9±2 4148
23×3×2.5 0.7 1.4 2.6 1 52.9±2 4505
24×3×2.5 0.7 1.4 2.6 1 53.8±2 4541
27×3×2.5 0.7 1.4 2.7 1 56.5±2 4982
30×3×2.5 0.7 1.6 2.9 1 59.7±2 5565
32×3×2.5 0.7 1.6 2.9 1 61.3±2 5875
