Mining Cable
Type 1 1.1/1.1KV Collectively Screened
Applications
These individuallycopper screened cables are used for wiring of machines, or between machines and equipment
where PVC is suitable
Standards
AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808

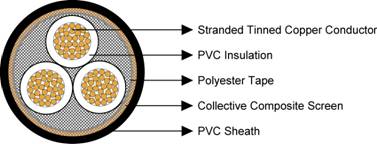

Construction
Conductors: Stranded copper conductor.
Insulation: PVC.
Bedding: Polyester tape.
Collective Composite Screen (earth conductor): Tinned annealed copper braiding interwove with polyester
yarn.
Sheath: PVC sheath.
Dimensions and Weight
| Number of Cores | Nominal Conductor Area | Strand Size | Insulation Thickness | Core screen | Thickness of Sheath | Nominal Overall Diameter | Nominal Weight | |
| Strand Size | Area of Screen |
|||||||
| mm² | No/mm | mm | mm | mm² | mm | mm | kg/100m | |
| Type 1 – Collectively Screened | ||||||||
| 2 | 1.5 | 30/0.25 | 0.8 | 0.20 | 2.3 | 0.8 | 9.2 | 12 |
| 3 | 1.5 | 30/0.25 | 0.8 | 0.20 | 2.5 | 0.8 | 9.7 | 15 |
| 4 | 1.5 | 30/0.25 | 0.8 | 0.20 | 2.6 | 0.8 | 10.5 | 18 |
| 6 | 1.5 | 30/0.25 | 0.8 | 0.20 | 3.4 | 0.8 | 12.6 | 25 |
| 16 | 1.5 | 30/0.25 | 0.8 | 0.20 | 5.1 | 1.0 | 18.7 | 55 |
| 30 | 1.5 | 30/0.25 | 0.8 | 0.25 | 8.8 | 1.3 | 24.6 | 96 |
