Mining Cable

 (N)SHOEU 0.6/1kV Flexible cable

Applications

These cables are designed for use in open cast miningfactories for laying of excavators and conveyor beltswith

permanent movements between parts of theequipment.These cables are used where the ascending pipe

servesas earth conductor, for instance for submersible pumps.

Standards

VDE 0250 Part 812

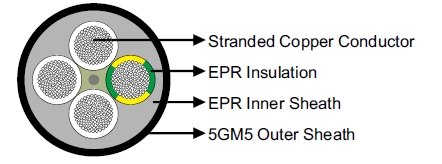

Construction

(N)SHOEU 0.6/1kV Flexible cable

Conductors: Flexible stranded copper conductor, class 5 according to DIN VDE 0295/IEC 60228.

Insulation: EPR.

Earth Conductor (for –J type):Incorporatedas a fourth core or split into three in theouter interstices.

InnerSheath: EPR.

Outer Sheath: CM type 5GM5.

Dimensions and Weight

(N)SHOEU-J

Number of Cores×Nominal Cross Section Insulation Thickness Thickness of Inner Sheath Thickness of Outer Sheath Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm mm mm mm kg/km
3×1.0 0.60 0.8 1.2 9.2 9.6 160
3×1.5 0.60 0.8 1.2 10.4 12.0 180
3×2.5 0.70 0.8 1.2 11.3 12.9 240
3×4 0.80 0.9 1.3 12.5 14.1 295
3×6 0.80 1.0 1.4 13.9 15.5 370
3×10 1.00 1.0 1.4 16.8 18.8 570
3x50+3x25/3 1.10 1.4 2.5 31.5 34.5 2500
3x70+3x35/3 1.10 1.4 2.5 36.2 39.2 3400
3x95+3x50/3 1.20 1.7 2.8 42.0 45.0 4475
3x120+3x70/3 1.20 2.0 3.0 46.0 49.0 5400
4×1.5 0.60 0.8 1.2 10.7 13.0 210
4×2.5 0.70 0.9 1.4 11.7 13.7 260
4×4 0.80 0.9 1.4 13.7 15.7 350
4×6 0.80 1.0 1.4 15.2 17.2 485
4×10 1.00 1.0 1.6 19.0 21.0 690
4×16 1.00 1.2 1.8 22.0 24.0 1090
4×25 1.00 1.3 2.2 26.5 29.5 1600
4×35 1.00 1.3 2.3 30.0 33.0 2090
4×50 1.10 1.5 2.6 34.5 38.5 2700
4×70 1.10 1.5 2.6 39.5 43.5 3620
4×95 1.20 1.7 2.8 45.0 49.0 4710
4×120 1.20 2.0 3.3 51.0 55.0 6020

(N)SHOEU-O

Number of Cores×Nominal Cross Section Insulation Thickness Thickness of Inner Sheath Thickness of Outer Sheath Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No.×mm² mm mm mm mm mm kg/km
5×1.5 0.60 0.8 1.2 12.0 14.0 240
5×2.5 0.70 0.9 1.3 13.0 14.8 305
5×4 0.80 0.9 1.4 14.8 17.0 440
5×6 0.80 1.0 1.6 17.0 19.0 580
5×10 1.00 1.0 1.6 20.0 23.0 870
5×16 1.00 1.2 1.8 23.8 26.8 1280
5×25 1.00 1.3 2.3 29.5 32.5 1950
2×1.5 0.60 0.8 1.2 9.8 11.8 155
7×1.5 0.60 0.9 1.4 13.0 14.6 295
8×1.5 0.60 0.9 1.4 14.0 15.6 320
10×1.5 0.60 1.0 1.6 15.5 17.5 390
12×1.5 0.60 1.0 1.6 16.5 18.5 445
2×2.5 0.70 0.8 1.2 10.8 12.8 195
4×2.5 0.70 0.9 1.4 11.7 13.7 290
7×2.5 0.70 0.9 1.4 15.0 17.0 410
8×2.5 0.70 0.9 1.4 16.0 19.0 430
10×2.5 0.70 1.0 1.6 18.0 20.5 520
12×2.5 0.70 1.0 1.6 18.5 21.5 580
18×2.5 0.70 1.0 1.6 21.5 24.5 835
24×2.5 0.70 1.2 1.8 25.5 28.5 895
2×4 0.80 0.9 1.2 12.0 13.6 250
12×4 0.80 1.2 1.8 25.0 28.0 990
1×16 1.00 - 1.4 9.6 11.2 215
1×25 1.00 - 1.7 11.2 13.2 325
1×35 1.00 - 1.8 12.6 14.6 430
1×50 1.10 - 2.0 14.6 16.6 610
1×70 1.10 - 2.2 16.6 18.6 825
1×95 1.20 - 2.3 18.9 20.9 1070
1×120 1.20 - 2.4 20.8 22.8 1300
1×150 1.30 - 2.5 23.0 25.0 1610
1×185 1.40 - 2.6 24.9 27.9 2000
1×240 1.50 - 2.8 28.2 31.2 2500
1×300 1.80 - 3.3 31.8 34.8 3200
3×2.5 0.70 0.8 1.2 11.3 12.9 240
3×4 0.80 0.9 1.3 12.5 14.1 295
3×6 0.80 1.0 1.4 13.9 15.5 370
3×10 1.00 1.0 1.4 16.8 18.8 570
3×16 1.00 1.0 1.6 19.0 22.0 770
3×25 1.00 1.2 2.0 23.5 26.5 1200
3×35 1.10 1.3 2.2 27.5 30.5 1570
3×50 1.10 1.5 2.6 31.5 35.5 2200
3×70 1.10 1.5 2.6 36.0 40.0 2910
3×95 1.20 1.7 2.8 41.0 45.0 3780
3×120 1.20 1.8 3.0 45.0 49.0 4700
3×150 1.30 1.7 2.8 49.0 53.0 5650
3×185 1.40 2.2 3.4 55.0 59.0 7050
