Mining Cable
(N)TSCGEWOEU Medium-Voltage Fixed Installation Cable With Fiber Optics
Applications
These cables are used for For laying alongside the conveyor belts (also for shiftable units)and on material
handling equipment (even with continuous movementsuch as in cable booms or as connection between
upperand lower car) and for connection of submersible pump units.
Standards
Based on VDE 0250 Part 813

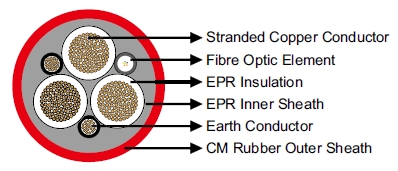

Construction
Conductors: Flexible strandedcopper conductor, class 5 according to DIN VDE 0295.
Inner Conductor Layer: Semiconductive layer.
Insulation: EPR.
Outer Conductor Layer:Semiconductive layer.
Earth Conductor: Split intotwo in the outer interstices.
Fiber Optics: FO 50/125 or 62.5/125 orE9/125μm within protection sheath.
InnerSheath: EPR.
Outer Sheath: CM.
Dimensions and Weight
3.6/6 kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+2×25/2+1×(6LWL) | 40.1 | 43.1 | 2650 |
| 3×25+2×50/2+1×(6LWL) | 42.4 | 45.4 | 3060 |
| 3×35+2×25/2+1×(6LWL) | 42.3 | 45.3 | 3060 |
| 3×35+2×50/2+1×(6LWL) | 44.0 | 47.0 | 3410 |
| 3×50+2×25/2+1×(6LWL) | 43.8 | 46.8 | 3490 |
| 3×50+2×50/2+1×(6LWL) | 46.1 | 49.1 | 3640 |
| 3×70+2×35/2+1×(6LWL) | 47.0 | 50.0 | 4350 |
| 3×70+2×50/2+1×(6LWL) | 52.0 | 56.0 | 5280 |
| 3×95+2×50/2+1×(6LWL) | 52.2 | 56.2 | 5550 |
| 3×120+2×70/2+1×(6LWL) | 49.6 | 50.9 | 7040 |
| 3×150+2×70/2+1×(6LWL) | 48.4 | 52.3 | 8000 |
| 3×185+2×95/2+1×(6LWL) | 51.3 | 55.3 | 9310 |
| 3×240+2×120/2+1×(6LWL) | 58.0 | 62.0 | 11940 |
| 3×300+2×150/2+1×(6LWL) | 63.2 | 67.2 | 14230 |
6/10 kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+2×25/2+1×(6LWL) | 41.4 | 44.4 | 2770 |
| 3×25+2×50/2+1×(6LWL) | 43.1 | 46.1 | 3120 |
| 3×35+2×25/2+1×(6LWL) | 43.6 | 46.6 | 3190 |
| 3×35+2×50/2+1×(6LWL) | 44.7 | 47.7 | 3470 |
| 3×50+2×25/2+1×(6LWL) | 45.1 | 48.1 | 3620 |
| 3×50+2×50/2+1×(6LWL) | 46.8 | 49.8 | 4010 |
| 3×70+2×35/2+1×(6LWL) | 48.3 | 51.3 | 4500 |
| 3×70+2×50/2+1×(6LWL) | 52.7 | 56.7 | 5360 |
| 3×95+2×50/2+1×(6LWL) | 53.5 | 57.5 | 5710 |
| 3×120+2×70/2+1×(6LWL) | 57.2 | 61.2 | 6830 |
| 3×150+2×70/2+1×(6LWL) | 62.3 | 66.3 | 8180 |
| 3×185+2×95/2+1×(6LWL) | 65.3 | 69.3 | 9500 |
| 3×240+2×120/2+1×(6LWL) | 73.4 | 77.4 | 12160 |
| 3×300+2×150/2+1×(6LWL) | 78.6 | 82.6 | 14460 |
8.7/15 kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+2×25/2+1×(6LWL) | 44.2 | 47.2 | 3050 |
| 3×25+2×50/2+1×(6LWL) | 45.4 | 48.4 | 3350 |
| 3×35+2×25/2+1×(6LWL) | 45.3 | 48.3 | 3320 |
| 3×35+2×50/2+1×(6LWL) | 47.0 | 50.0 | 3710 |
| 3×50+2×25/2+1×(6LWL) | 49.4 | 53.4 | 4160 |
| 3×50+2×50/2+1×(6LWL) | 51.2 | 55.2 | 4590 |
| 3×70+2×35/2+1×(6LWL) | 52.7 | 56.7 | 5080 |
| 3×70+2×50/2+1×(6LWL) | 55.0 | 59.0 | 5640 |
| 3×95+2×50/2+1×(6LWL) | 57.0 | 61.0 | 6160 |
| 3×120+2×70/2+1×(6LWL) | 62.1 | 66.1 | 7520 |
| 3×150+2×70/2+1×(6LWL) | 65.7 | 69.7 | 8670 |
| 3×185+2×95/2+1×(6LWL) | 68.7 | 72.7 | 10010 |
| 3×240+2×120/2+1×(6LWL) | 76.8 | 80.8 | 12730 |
| 3×300+2×150/2+1×(6LWL) | 82.0 | 86.0 | 15080 |
12/20 kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+2×25/2+1×(6LWL) | 45.5 | 48.5 | 3140 |
| 3×25+2×50/2+1×(6LWL) | 47.2 | 50.2 | 3530 |
| 3×35+2×25/2+1×(6LWL) | 48.3 | 51.3 | 3640 |
| 3×35+2×50/2+1×(6LWL) | 51.0 | 55.0 | 4240 |
| 3×50+2×25/2+1×(6LWL) | 52.5 | 56.5 | 4530 |
| 3×50+2×50/2+1×(6LWL) | 52.5 | 56.5 | 4690 |
| 3×70+2×35/2+1×(6LWL) | 55.7 | 59.7 | 5460 |
| 3×70+2×50/2+1×(6LWL) | 58.0 | 62.0 | 6040 |
| 3×95+2×50/2+1×(6LWL) | 61.4 | 65.4 | 6770 |
| 3×120+2×70/2+1×(6LWL) | 65.1 | 69.1 | 7950 |
| 3×150+2×70/2+1×(6LWL) | 68.7 | 72.7 | 9130 |
| 3×185+2×95/2+1×(6LWL) | 73.2 | 77.2 | 10770 |
| 3×240+2×120/2+1×(6LWL) | 79.8 | 83.8 | 13260 |
| 3×300+2×150/2+1×(6LWL) | 86.3 | 91.3 | 16040 |
14/25 kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+2×25/2+1×(6LWL) | 50.3 | 54.3 | 3740 |
| 3×25+2×50/2+1×(6LWL) | 50.3 | 54.3 | 3900 |
| 3×35+2×25/2+1×(6LWL) | 53.1 | 57.1 | 4270 |
| 3×35+2×50/2+1×(6LWL) | 53.1 | 57.1 | 4440 |
| 3×50+2×25/2+1×(6LWL) | 56.3 | 60.3 | 5000 |
| 3×50+2×50/2+1×(6LWL) | 56.3 | 60.3 | 5160 |
| 3×70+2×35/2+1×(6LWL) | 61.0 | 65.0 | 6190 |
| 3×70+2×50/2+1×(6LWL) | 61.0 | 65.0 | 6390 |
| 3×95+2×50/2+1×(6LWL) | 65.3 | 69.3 | 7340 |
| 3×120+2×70/2+1×(6LWL) | 69.0 | 73.0 | 8550 |
| 3×150+2×70/2+1×(6LWL) | 74.0 | 78.0 | 10020 |
| 3×185+2×95/2+1×(6LWL) | 77.0 | 81.0 | 11410 |
| 3×240+2×120/2+1×(6LWL) | 85.0 | 90.0 | 14380 |
| 3×300+2×150/2+1×(6LWL) | 90.2 | 95.2 | 16820 |
18/30 kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+2×25/2+1×(6LWL) | 53.7 | 57.7 | 4140 |
| 3×25+2×50/2+1×(6LWL) | 53.7 | 57.7 | 4310 |
| 3×35+2×25/2+1×(6LWL) | 56.6 | 60.6 | 4720 |
| 3×35+2×50/2+1×(6LWL) | 56.6 | 60.6 | 4880 |
| 3×50+2×25/2+1×(6LWL) | 61.2 | 65.2 | 5680 |
| 3×50+2×50/2+1×(6LWL) | 61.2 | 65.2 | 5840 |
| 3×70+2×35/2+1×(6LWL) | 64.4 | 68.4 | 6670 |
| 3×70+2×50/2+1×(6LWL) | 64.4 | 68.4 | 6870 |
| 3×95+2×50/2+1×(6LWL) | 68.7 | 72.7 | 7860 |
| 3×120+2×70/2+1×(6LWL) | 73.8 | 77.8 | 9350 |
| 3×150+2×70/2+1×(6LWL) | 77.5 | 81.5 | 10630 |
| 3×185+2×95/2+1×(6LWL) | 80.5 | 84.5 | 12040 |
| 3×240+2×120/2+1×(6LWL) | 88.5 | 93.5 | 15070 |
| 3×300+2×150/2+1×(6LWL) | 94.7 | 99.7 | 17780 |
