Mining Cable
2YSLGCGOEU Signal & Control Cable
Applications
These control, signalling and bus cables are used for electric and electronic equipment,such as for measured
value and process data processing andautomation units in open-cast mining applications,suitable forlaying
alongside conveyor belts and on material handling equipment.
Standards
VDE 0250 Part 812

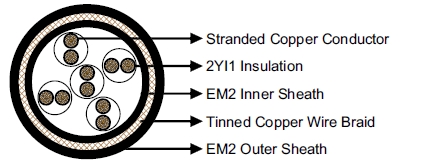

Construction
Conductors: Flexible strandedcopper conductor, class 5 according to DIN VDE 0295.
Insulation: PE type 2YI1.
Cable Element: Cores are laid-up in pairs in layers with a continuous serving of non-hygroscopicmaterial over
the conductor assembly
InnerSheath:
CM type EM2.
Screen: Tinned copper wire braid.
Outer Sheath: CM type EM2.
Dimensions and Weight
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 2×2×1 | 11.0 | 13.0 | 245 |
| 5×2×1 | 16.0 | 19.0 | 440 |
| 10×2×1 | 20.0 | 23.0 | 700 |
| 20×2×1 | 25.0 | 29.0 | 1040 |
