NTSCGECWOEU Medium-Voltage Coal Cutter Cable
Applications
These cables are used for the connection of mobile electrical equipment inunderground mines, e.g. for coal-
cutting machines,especially for the use in bretby chains with extremebending loads under low tensile stress.
Standards
VDE 0250 Part 813

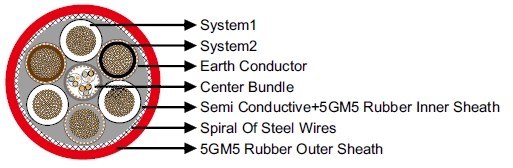

Construction
System1 (1.8/3kV or 3.6/6kV): Flexible stranded tinned copper conductor with heatresistant3GI3 rubber
based on EPR,easy strippable outer conductive layer.
System2 (0.6/1kV): Flexible stranded tinned copper conductor with heatresistant3GI3 rubber based on EPR.
Earth Conductor: Spiral of tinnedcopper.
Center Bundle: Control and pilot cores withcopper/steel conductors capable of expansion andcompression, EPR
insulation,optional with fiber optics, covered with tinned copper wires semi conductive rubber sheath.
InnerSheath: 2 layer design, semi conductive rubber + Rubber type 5GM5.
Armour: Spiral of steel wires,embedded in the outer sheath, fiberglas tape which preventssheath exchanging.
Outer Sheath: Rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant.
Dimensions and Weight
1.8/3kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×50+3×(35+35/3)+2×(2×0.75ST)+2×0.75UEL | 62.0 | 66.0 | 7210 |
| 3×70+3×(50+50/3)+2×(2×0.75ST)+2×0.75UEL | 64.0 | 68.0 | 8200 |
| 3×95+3×(70+70/3)+2×(2×0.75ST)+2×0.75UEL | 74.0 | 78.0 | 10300 |
3.6/6kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×35+3×(35+35/3)+2×(2×0.75ST)+2×0.75UEL | 66.0 | 72.0 | 7600 |
| 3×50+3×(50+50/3)+2×(2×0.75ST)+2×0.75UEL | 69.0 | 75.0 | 9200 |
| 3×70+3×(70+70/3)+2×(2×0.75ST)+2×0.75UEL | 76.0 | 81.0 | 11150 |
| 3×95+3×(95+95/3)+2×(2×0.75ST)+2×0.75UEL | 85.0 | 90.0 | 13300 |
