3GKW-RW/S EMC 0.6/1KV Thin Wall Screened Multicore



Applications :

Multi core power and control cable designed for protected, fixed installation inside and outside railway vehicles

for connecting fixed and moving parts in direct current and alternating voltage technology,especially converter

technology.

Standards :

EN45545-2

BS 6853 -1a

DIN 5510-1 1-4

NFF 16-101 F0

Construction :

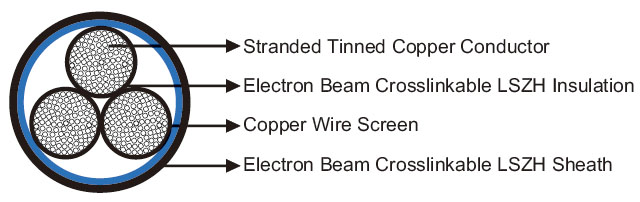

3GKW-RW/S EMC 0.6/1KV Thin Wall Screened Multicore3GKW-RW/S EMC 0.6/1KV Thin Wall Screened Multicore

Conductors : Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.

Insulation : Electron beam crosslinkable LSZH compound.

Screen : Copper wire screen.

Sheath : Electron beam crosslinkable LSZH compound.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Cross Section mm² 0.5 0.75 1 1.5 2.5
    Maximum Conductor Resistance Ω/km 40.1 26.7 20.0 13.7 8.21
    Voltage Rating KV 0.6/1

Mechanical and Thermal Properties :

Minimum Bending Radius : 4xOD (Static);

                                          8xOD (Flexing).

Temperature Range : -60℃ ~+120℃ (Static);

                                   -40℃ ~+90℃ (Flexing).

Short Circuit Temperature : +280℃.

Dimensions and Weight :

No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²		 Number and Nominal Diameter of Strands
No./mm		 Nominal Insulation Thickness
mm		 Nominal Overall
Diameter
mm		 Nominal Weight
kg/km
2×0.5 16/0.20 0.3 4.8 42
3×0.5 16/0.20 0.3 5.0 51
4×0.5 16/0.20 0.3 5.4 56
6×0.5 16/0.20 0.3 6.5 82
15×0.5 16/0.20 0.3 9.0 167
3×2×0.5 16/0.20 0.3 8.1 98
12×2×0.5 16/0.20 0.3 13.0 276
2×0.75 24/0.20 0.3 5.0 48
4×0.75 24/0.20 0.3 6.0 72
6×0.75 24/0.20 0.3 7.2 103
10×0.75 24/0.20 0.3 8.7 152
18×0.75 24/0.20 0.3 11.0 244
3×2×0.75 24/0.20 0.3 9.0 127
2×1.0 32/0.20 0.3 5.6 60
3×1.0 32/0.20 0.3 6.0 76
4×1.0 32/0.20 0.3 6.5 88
6×1.0 32/0.20 0.3 7.8 114
8×1.0 32/0.20 0.3 8.9 171
25×1.0 32/0.20 0.3 13.8 392
2×2×1.0 32/0.20 0.3 8.3 117
2×1.5 30/0.25 0.3 6.5 86
3×1.5 30/0.25 0.3 6.8 95
4×1.5 30/0.25 0.3 7.4 118
6×1.5 30/0.25 0.3 9.0 168
18×1.5 30/0.25 0.3 14.4 452
2×2.5 50/0.25 0.4 7.8 122
6×2.5 50/0.25 0.4 11.4 268
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
NF C32-070-2.2(C1)
IEC 60332-3/EN50266
IEC 60754-1/NF C20-454
EN 50267-2-1
IEC 61034/NFC20-902
EN 50268/NF C32-073
EN 50267-2-2/NF C32-074
IEC 60754-2/NF C20-453
