FIREROL High Temperature Single Core Unsheathed Cables
1.8/3 kV or 3.6/6 kV
EN 50382-2 (FRL-HT-3SU/FRL-HT-6SU)

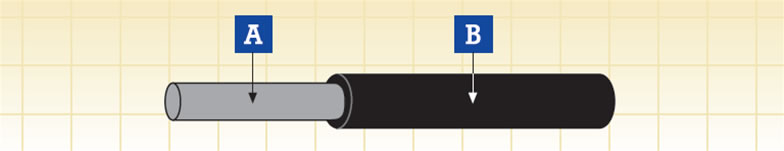

A.Conductor B.Insulation
Construction
Conductor
flexible tinned annealed copper wires (red copper only for 150° C core temperature) class 5 according to HD 383
Insulation
silicon rubber according to EN 50382-1 (EI 111)
Electrical & Mechanical Properties
Nominal Voltage:1.8/3 kV or 3.6/6 kV
Maximum Conductor Temperature:+120/+150 deg (fixed installation)
Minimum Permissible Ambient Temperature:-25/-40 deg (fixed installation)
Bending Radius:3 x Overall Diameter (D<12mm);
4 x Overall Diameter (D>12mm)
Chemical & Environmental Properties
EN 60684-2:No fluorine
EN 50305; EN 60811-2-1:Resistance to mineral oil & fuel oil, acid & alkali
EN 50305:Resistance to ozone
Fire Performance for rolling stock application
EN 50306-2:Hazard levels HL1, HL2/HL3
DIN 5510-2:Protection level 1/2/3/4
BS 6853:Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101:FO
EN45545-2：R15 Interior/ R16 Exterior HL1, HL2, HL3
Fire Performance in general
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074;NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 | Low Toxicity |
| NFF 16101; NFF 63808; BS6853 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
FRL-HT-3SU 1.8/3KV
| NOMINAL CROSS-SECTIONAL AREA | CONDUCTOR DIAMETER (a) | MIN. MEAN THICKNESS OF INSULATION | OVERALL DIAMETER | WEIGHT | RESISTANCE OF CONDUCTOR AT 20°C | MIN. INSULATION RESISTANCE | |||
| min | max | TINNED CONDUCTOR | PLAIN CONDUCTOR | AT +20℃MIN. | AT +150℃MIN. | ||||
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | Ω/km | MΩ·km | MΩ·km |
| 1.5 | 1.5 | 2.5 | 6.3 | 7.3 | 50 | 13.7 | 13.3 | 970 | 1.90 |
| 2.5 | 1.95 | 2.5 | 6.7 | 7.8 | 70 | 8.21 | 7.98 | 840 | 1.60 |
| 4 | 2.5 | 2.5 | 7.2 | 8.4 | 80 | 5.09 | 4.95 | 720 | 1.40 |
| 6 | 3.0 | 2.5 | 7.7 | 9.0 | 100 | 3.39 | 3.30 | 650 | 1.30 |
| 10 | 3.9 | 2.5 | 8.5 | 10.0 | 160 | 1.95 | 1.91 | 540 | 1.00 |
| 16 | 5.0 | 2.5 | 9.6 | 11.2 | 210 | 1.24 | 1.21 | 460 | 0.90 |
| 25 | 6.4 | 2.5 | 10.9 | 12.7 | 290 | 0.795 | 0.780 | 380 | 0.70 |
| 35 | 7.7 | 2.5 | 12.1 | 14.1 | 380 | 0.565 | 0.554 | 330 | 0.60 |
| 50 | 9.2 | 2.5 | 13.5 | 15.8 | 520 | 0.393 | 0.386 | 290 | 0.50 |
| 70 | 11.0 | 2.5 | 15.2 | 17.8 | 720 | 0.277 | 0.272 | 250 | 0.50 |
| 95 | 12.5 | 2.7 | 17.0 | 19.9 | 930 | 0.210 | 0.206 | 230 | 0.40 |
| 120 | 14.2 | 2.7 | 18.6 | 21.7 | 1140 | 0.164 | 0.161 | 210 | 0.40 |
| 150 | 15.8 | 2.7 | 20.1 | 23.5 | 1430 | 0.132 | 0.129 | 190 | 0.30 |
| 185 | 17.5 | 2.7 | 21.7 | 25.4 | 1720 | 0.108 | 0.106 | 170 | 0.30 |
| 240 | 20.1 | 2.7 | 24.1 | 28.2 | 2270 | 0.0817 | 0.0801 | 150 | 0.30 |
| 300 | 22.5 | 2.7 | 26.4 | 30.9 | 2750 | 0.0654 | 0.0641 | 140 | 0.20 |
| 400 | 25.8 | 2.9 | 29.9 | 34.9 | 3730 | 0.0495 | 0.0486 | 130 | 0.20 |
FRL-HT-6SU 3.6/6kV
| NOMINAL CROSS-SECTIONAL AREA | CONDUCTOR DIAMETER (a) | MIN. MEAN THICKNESS OF INSULATION | OVERALL DIAMETER | WEIGHT | RESISTANCE OF CONDUCTOR AT 20°C | MIN. INSULATION RESISTANCE | |||
| min | max | TINNED CONDUCTOR | PLAIN CONDUCTOR | AT +20℃MIN. | AT +150℃MIN. | ||||
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | Ω/km | MΩ·km | MΩ·km |
| 2.5 | 1.95 | 3.0 | 7.6 | 8.9 | 80 | 8.21 | 7.98 | 920 | 1.80 |
| 4 | 2.5 | 3.0 | 8.1 | 9.5 | 100 | 5.09 | 4.95 | 800 | 1.60 |
| 6 | 3.0 | 3.0 | 9.0 | 10.6 | 120 | 3.39 | 3.30 | 750 | 1.50 |
| 10 | 3.9 | 3.0 | 9.5 | 11.1 | 180 | 1.95 | 1.91 | 610 | 1.20 |
| 16 | 5.0 | 3.0 | 10.5 | 12.3 | 230 | 1.24 | 1.21 | 520 | 1.00 |
| 25 | 6.4 | 3.0 | 11.8 | 13.8 | 310 | 0.795 | 0.780 | 430 | 0.80 |
| 35 | 7.7 | 3.0 | 13.0 | 15.2 | 410 | 0.565 | 0.554 | 380 | 0.70 |
| 50 | 9.2 | 3.0 | 14.4 | 16.9 | 550 | 0.393 | 0.386 | 330 | 0.60 |
| 70 | 11.0 | 3.0 | 16.1 | 18.9 | 740 | 0.277 | 0.272 | 280 | 0.50 |
| 95 | 12.5 | 3.0 | 17.5 | 20.5 | 940 | 0.210 | 0.206 | 260 | 0.50 |
| 120 | 14.2 | 3.1 | 19.3 | 22.6 | 1170 | 0.164 | 0.161 | 240 | 0.40 |
| 150 | 15.8 | 3.1 | 20.8 | 24.4 | 1460 | 0.132 | 0.129 | 220 | 0.40 |
| 185 | 17.5 | 3.2 | 22.6 | 26.5 | 1760 | 0.108 | 0.106 | 200 | 0.40 |
| 240 | 20.1 | 3.4 | 25.4 | 29.8 | 2340 | 0.0817 | 0.0801 | 190 | 0.30 |
| 300 | 22.5 | 3.4 | 27.7 | 32.4 | 2820 | 0.0654 | 0.0641 | 170 | 0.30 |
| 400 | 25.8 | 3.4 | 30.8 | 36.0 | 3780 | 0.0495 | 0.0486 | 150 | 0.30 |
(a)= For information,indicative only
