Rolling Stock Cables |  |
||||||||||||||||
|
||||||||||||||||||
|
||||||||||||||||||
FIREROL High Temperature Single Core Cables with Reinforced Insulation
3.6/6 kV
EN 50382-2 (FRL-HT-6SURI)

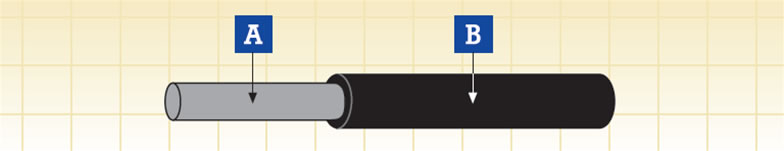

A. Conductor B. Insulation
Construction
Conductor
extra flexible tinned annealed copper wires(red copper only for 150° C core temperature)class 6 according to HD
383
Insulation
silicon rubber according to EN 50382-1 (EI 112)
Electrical & Mechanical Properties
Nominal Voltage:3.6/6 kV
Maximum Conductor Temperature:+120/+150 deg (fixed installation)
Minimum Permissible Ambient Temperature:-25/-40 deg (fixed installation)
Bending Radius:3 x Overall Diameter (D<12mm);
4 x Overall Diameter (D>12mm)
Chemical & Environmental Properties
EN 60684-2:No fluorine
EN 50305; EN 60811-2-1:Resistance to mineral oil & fuel oil, acid & alkali
EN 50305:Resistance to ozone
Fire Performance for rolling stock application
EN 50306-2:Hazard levels HL1, HL2/HL3
DIN 5510-2:Protection level 1/2/3/4
BS 6853:Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101:FO
EN45545-2：R15 Interior/ R16 Exterior HL1, HL2, HL3
Fire Performance in general
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074;NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 | Low Toxicity |
| NFF 16101; NFF 63808; BS6853 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
FRL-HT-6SURI 3.6/6 kV
| NOMINAL CROSS-SECTIONAL AREA (a) | CONDUCTOR DIAMETER (a) | MIN. MEAN THICKNESS OF INSULATION | OVERALL DIAMETER | WEIGHT | RESISTANCE OF CONDUCTOR AT 20°C | MIN. INSULATION RESISTANCE | |||
| min | max | TINNED CONDUCTOR | PLAIN CONDUCTOR | AT +20℃ MIN. | AT +150℃MIN. | ||||
| mm2 | mm | mm | mm | mm | kg/km | Ω/km | Ω/km | MΩ·km | MΩ·km |
| 50 | 9.2 | 3.0 | 15.2 | 17.8 | 560 | 0.393 | 0.386 | 340 | 0.70 |
| 70 | 11.0 | 3.0 | 16.9 | 19.8 | 770 | 0.277 | 0.272 | 300 | 0.60 |
| 95 | 12.5 | 3.0 | 18.3 | 21.4 | 970 | 0.210 | 0.206 | 270 | 0.55 |
| 120 | 14.2 | 3.1 | 20.1 | 23.5 | 1200 | 0.164 | 0.161 | 250 | 0.50 |
| 150 | 15.8 | 3.1 | 21.6 | 25.3 | 1480 | 0.132 | 0.129 | 220 | 0.45 |
| 185 | 17.5 | 3.2 | 23.4 | 27.4 | 1800 | 0.108 | 0.106 | 210 | 0.40 |
(a)= For information,indicative only
