RSE/STD/024 Part 6 Types IX Rolling Stock Cables
30/50V Multipair Reduced Wall Screened Cables
Application
These cables are used as power and control cables for protected, fixed installation inside railway vehicles

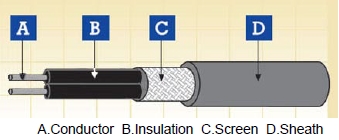

Construction
Conductor :Flexible Stranded Tinned Copper
Insulation:Cross linked EPR rubber type EI 107
Screen:Copper Braid Screen
Sheath:Cross linked EVA rubber type EM 104
Chemical & Environmental Properties
EN 60684-2 :No fluorine
EN 50305; EN 60811-2-1:Resistance to oil & fuel
EN 50305:Resistance to ozone
Fire Performance for rolling stock application
EN 50306-2 :Hazard levels HL1, HL2/HL3
DIN 5510-2:Protection level 1/2/3/4
BS 6853:Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101:FO
Fire Performance in general
| EN 50265-2-1; IEC 60332-1; BS 4066-1 | Vertical flame propogation for a single insulated wire/cable |
EN 50266-2-4 + EN 50305; IEC 60332-3C |
Fire propagation of bunched wires and cables |
VDE 0472 Teil 804; BS 4066-3; NFC 32070 |
|
EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 |
Smoke density |
EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 |
Halogen Free |
EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 |
Corrosivity of gases (Acidity & Conductivity) |
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 |
Toxicity index |
NFF 16101; NFF 63808; BS6853 |
Smoke index |
No.of pair |
Nominal Cross |
Nominal Diameter of |
Nominal Overall |
Nominal Weight |
Maximum Conductor |
mm2 |
No/mm |
mm |
kg/km |
Ω/km |
|
1 |
0.5 |
19/0.18 |
6.1 |
57 |
40.1 |
2 |
0.5 |
19/0.18 |
10.2 |
110 |
40.1 |
1 |
1.0 |
37/0.18 |
7.0 |
86 |
20.0 |
2 |
1.0 |
37/0.18 |
12.2 |
188 |
20.0 |
3 |
1.0 |
37/0.18 |
12.9 |
217 |
20.0 |
4 |
1.0 |
37/0.18 |
14.0 |
290 |
20.0 |
