RSE/STD/024 Part 6 Types II Rolling Stock Cables
600/1000V Singlecore Standard Wall Unsheathed Cables
Application
These cables are used as power and control cables for protected, fixed installation inside railway vehicles
Construction

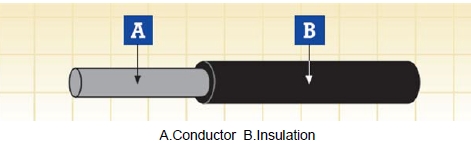

Conductor :Flexible Stranded Tinned Copper
Insulation:Cross linked EPR rubber type EI 107
Chemical & Environmental Properties
EN 60684-2 :No fluorine
EN 50305; EN 60811-2-1:Resistance to oil & fuel
EN 50305:Resistance to ozone
Fire Performance for rolling stock application
EN 50306-2 :Hazard levels HL1, HL2/HL3
DIN 5510-2:Protection level 1/2/3/4
BS 6853:Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101:FO
Fire Performance in general
| EN 50265-2-1; IEC 60332-1; BS 4066-1 | Vertical flame propogation for a single insulated wire/cable |
EN 50266-2-4 + EN 50305; IEC 60332-3C |
Fire propagation of bunched wires and cables |
VDE 0472 Teil 804; BS 4066-3; NFC 32070 |
|
EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 |
Smoke density |
EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 |
Halogen Free |
EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 |
Corrosivity of gases (Acidity & Conductivity) |
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 |
Toxicity index |
NFF 16101; NFF 63808; BS6853 |
Smoke index |
No.of core |
Nominal Cross |
Nominal Diameter of |
Nominal Overall |
Nominal Weight |
Maximum Conductor |
mm2 |
No/mm |
mm |
kg/km |
Ω/km |
|
1 |
0.75 |
24/0.20 |
2.99 |
15 |
26.7 |
1 |
1.0 |
32/0.20 |
3.3 |
19 |
20.0 |
1 |
1.5 |
30/0.25 |
3.69 |
26 |
13.7 |
1 |
2.5 |
50/0.25 |
4.16 |
38 |
8.21 |
1 |
4.0 |
56/0.30 |
4.95 |
57 |
5.09 |
1 |
6.0 |
84/0.30 |
5.55 |
81 |
3.39 |
1 |
10.0 |
80/0.40 |
7.0 |
135 |
1.94 |
1 |
16.0 |
128/0.40 |
8.35 |
202 |
1.24 |
1 |
25.0 |
196/0.40 |
10.2 |
309 |
0.795 |
1 |
35.0 |
276/0.40 |
11.75 |
404 |
0.565 |
1 |
50.0 |
396/0.40 |
13.7 |
562 |
0.393 |
1 |
70.0 |
360/0.50 |
16.25 |
768 |
0.277 |
1 |
95.0 |
476/0.50 |
18.05 |
1003 |
0.210 |
1 |
150.0 |
756/0.50 |
22.95 |
1583 |
0.132 |
1 |
240.0 |
1221/0.50 |
27.9 |
2516 |
0.0817 |
1 |
300.0 |
1525/0.50 |
31.35 |
3089 |
0.0654 |
