JIS Shipboard Cables
3.6/6KV, 6/10KV, 8.7/15KV 0.6/1kV 250V

250V

[FA-] MPYS, MPYCS, MPYCYS



STANDARDS

JISC 3410-1999

IEC 60332-1

IEC 60332-3 Cat.A(for FA-type)

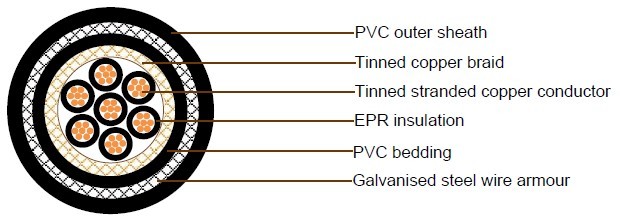

CABLE CONSTRUCTION

JIS Shipboard Cables

Conductor M Tinned annealed stranded copper, class 2 according to IEC 60228
Insulation P 85°C EPR as per JIS C 3401
Cabling   Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used
Overall shield S Tinned copper wire braid
Bedding Y PVC as per JIS C 3401
Armor C Galvanized steel wire braid
Sheath Y PVC as per JIS C 3401
Core identification   Black No. on white insulation
Outer sheath color   Black

Cable Parameter

250V (FA-) MPYS
No. of cores Conductor Thick. of insulation Dia. of shield
wire		 Thick. of bedding (FA-) MPYS
Size Construction O.D Nom. overall dia Tolerance Cable Weight
mm² No./mm mm mm mm mm mm mm kg/km
2 1 7/0.43 1.29 0.7 0.14 1.1 9.4 0.4 135
4 1 7/0.43 1.29 0.7 0.14 1.1 10.6 0.5 190
7 1 7/0.43 1.29 0.7 0.14 1.2 12.6 0.6 270
12 1 7/0.43 1.29 0.7 0.16 1.3 16.3 0.7 430
19 1 7/0.43 1.29 0.7 0.16 1.5 19.3 0.8 600
27 1 7/0.43 1.29 0.7 0.18 1.6 23 1 840
37 1 7/0.43 1.29 0.7 0.18 1.7 25.7 1.1 1070
44 1 7/0.43 1.29 0.7 0.18 1.8 28.9 1.2 1290

250V (FA-) MPYCS

No. of
cores		 Conductor Thick. of insulation Dia. of shield
wire		 Thick. of bedding Dia. of steel wire (FA-) MPYCS
Size Construction O.D Nom.
overall dia		 Tolerance Cable Weight
mm² No./mm mm mm mm mm mm mm mm kg/km
2 1 7/0.43 1.29 0.7 0.14 1.1 0.3 10.7 0.4 205
4 1 7/0.43 1.29 0.7 0.14 1.1 0.3 11.9 0.5 260
7 1 7/0.43 1.29 0.7 0.14 1.2 0.3 13.9 0.6 355
12 1 7/0.43 1.29 0.7 0.16 1.3 0.3 17.6 0.7 540
19 1 7/0.43 1.29 0.7 0.16 1.5 0.3 20.6 0.8 735
27 1 7/0.43 1.29 0.7 0.18 1.6 0.3 24.3 1 995
37 1 7/0.43 1.29 0.7 0.18 1.7 0.3 27 1.1 1240
44 1 7/0.43 1.29 0.7 0.18 1.8 0.3 30.2 1.2 1480

250V (FA-) MPYCYS

No. of
cores		 Conductor Thick. of
insulation		 Dia. of
shield
wire		 Thick. of
bedding		 Dia. of steel wire Thick. of covering (FA-) MPYCYS
Size Construction O.D Nom. overall dia Tolerance Cable Weight
mm² No./mm mm mm mm mm mm mm mm mm kg/km
2 1 7/0.43 1.29 0.7 0.14 1.1 0.3 0.9 12.7 0.5 255
4 1 7/0.43 1.29 0.7 0.14 1.1 0.3 0.9 13.9 0.6 315
7 1 7/0.43 1.29 0.7 0.14 1.2 0.3 0.9 15.9 0.6 420
12 1 7/0.43 1.29 0.7 0.16 1.3 0.3 1 19.8 0.8 625
19 1 7/0.43 1.29 0.7 0.16 1.5 0.3 1.1 23 0.9 850
27 1 7/0.43 1.29 0.7 0.18 1.6 0.3 1.2 26.9 1.1 1140
37 1 7/0.43 1.29 0.7 0.18 1.7 0.3 1.3 29.8 1.2 1410
44 1 7/0.43 1.29 0.7 0.18 1.8 0.3 1.4 33.2 1.3 1680
