JIS Shipboard Cables
3.6/6KV, 6/10KV, 8.7/15KV 0.6/1kV 250V

0.6/1kV

SCP, SYP



STANDARDS

JISC 3410-1999

IEC 60332-1

CABLE CONSTRUCTION

JIS Shipboard Cables

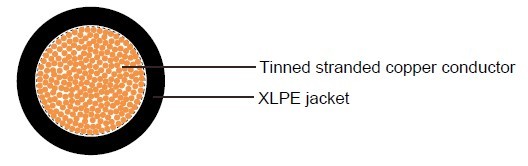

Conductor S Bunched tinned annealed stranded copper, class 5 according to IEC 60228
Insulation CP
YP		 85°C XLPE/
75°C PVC as per JIS C 3401

Cable Parameter

SCP

Conductor Thick. of insulation Nom. overall dia. Tolerance Cable Weight
Size Construction O.D
mm² No./mm mm mm mm mm kg/km
1.5 30/0.25 1.58 0.9 3.7 0.4 26
2.5 49/0.25 2.02 1 4.3 0.4 38
4 55/0.30 2.57 1 4.8 0.4 55
6 82/0.30 3.14 1 5.3 0.4 75
10 80/0.40 4.13 1.1 6.6 0.4 125
16 7/18/0.40 5.88 1.1 8.3 0.4 190
25 7/28/0.40 7.32 1.2 10 0.4 280
35 7/39/0.40 8.67 1.4 11.8 0.5 390
50 19/21/0.40 10.3 1.4 13.4 0.5 550
70 19/19/0.50 12.2 1.6 15.7 0.6 770
95 19/25/0.50 14 1.7 17.7 0.7 1000

SYP

Conductor Thick. of insulation Nom. overall dia. Tolerance Cable Weight
Size Construction O.D
mm² No./mm mm mm mm mm kg/km
0.75 24/0.20 1.13 1.2 3.8 0.4 21
1 32/0.20 1.27 1.2 3.9 0.4 24
1.5 30/0.25 1.58 1.2 4.2 0.4 30
2.5 49/0.25 2.02 1.2 4.7 0.4 41
4 55/0.30 2.57 1.2 5.2 0.4 60
6 82/0.30 3.14 1.2 5.8 0.4 80
10 80/0.40 4.13 1.2 6.8 0.4 125
16 7/18/0.40 5.88 1.3 8.7 0.4 195
