JIS Shipboard Cables
3.6/6KV, 6/10KV, 8.7/15KV 0.6/1kV 250V

0.6/1kV

(FA-)SPYC, SPYCB
(FA-)SPYCY, SPYCBY



STANDARDS

JISC 3410-1999

IEC 60332-1

IEC 60332-3 Cat.A(for FA-type)

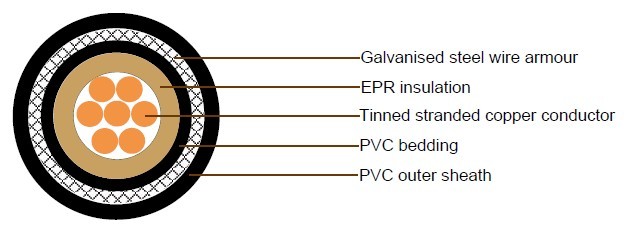

CABLE CONSTRUCTION

JIS Shipboard Cables

Conductor S Tinned annealed stranded copper, class 2 according to IEC 60228
Insulation P 85°C EPR as per JIS C 3401
Bedding Y PVC as per JIS C 3401
Armor C
(CB) 		Galvanized steel wire braid(-C TYPE) or copper alloy wire braid(-CB TYPE)
Sheath Y PVC as per JIS C 3401
Outer sheath color   Black

Cable Parameter

(FA-)SPYC, SPYCB

Conductor Thick. of insulation Thick. of bedding Dia. over bedding Dia. of armor (FA-) SPYC, SPYCB
Size Construction O.D Nominal overall
dia.		 Tolerance Cable weight
(Approx.)
mm² No./mm mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 1.0 5.9 0.3 7.2 0.4 100
2.5 7/0.67 2.01 1.0 1.0 6.3 0.3 7.8 0.4 120
4 7/0.85 2.55 1.0 1.0 6.9 0.3 8.2 0.4 140
6 7/1.04 3.12 1.0 1.0 7.4 0.3 8.7 0.4 170
10 7/1.35 4.05 1.0 1.1 8.6 0.3 9.9 0.4 225
16 7/1.70 5.1 1.0 1.1 9.6 0.3 10.9 0.4 300
25 7/2.14 6.42 1.2 1.2 11.5 0.3 12.8 0.5 425
35 7/2.52 7.56 1.2 1.2 12.7 0.3 14.0 0.6 535
50 19/1.78 8.9 1.4 1.3 14.6 0.3 15.9 0.6 695
70 19/2.14 10.7 1.6 1.4 17.2 0.3 18.5 0.7 960
95 19/2.52 12.6 1.6 1.5 19.3 0.3 20.6 0.8 1250
120 37/2.03 14.2 1.6 1.5 20.9 0.3 22.2 0.9 1510
150 37/2.25 15.8 1.8 1.6 23.1 0.3 24.4 1.0 1830
185 37/2.52 17.6 2.0 1.7 25.5 0.3 26.8 1.1 2250
240 61/2.25 20.3 2.2 1.8 28.8 0.3 30.1 1.2 2910
300 61/2.52 22..7 2.4 1.9 31.8 0.4 33.6 1.3 3680

(FA-)SPYCY, SPYCBY

Conductor Thick. of insulation Thick. of bedding Dia. over bedding Dia. of
armor		 (FA-) SPYCY, SPYCBY
Size Construction O.D Thick.of
Sheath		 Nominal
overall
dia.		 Tolerance Cable
weight
(Approx.)
mm² No./mm mm mm mm mm mm mm mm mm Kg / Km
1.5 7/0.53 1.59 1.0 1.0 5.9 0.3 0.8 9.0 0.4 135
2.5 7/0.67 2.01 1.0 1.0 6.3 0.3 0.8 9.4 0.4 150
4 7/0.85 2.55 1.0 1.0 6.9 0.3 0.8 10.0 0.4 175
6 7/1.04 3.12 1.0 1.0 7.4 0.3 0.8 10.5 0.4 205
10 7/1.35 4.05 1.0 1.1 8.6 0.3 0.8 11.7 0.5 270
16 7/1.70 5.1 1.0 1.1 9.6 0.3 0.9 12.9 0.5 350
25 7/2.14 6.42 1.2 1.2 11.5 0.3 0.9 14.8 0.6 485
35 7/2.52 7.56 1.2 1.2 12.7 0.3 1.0 16.2 0.6 605
50 19/1.78 8.9 1.4 1.3 14.6 0.3 1.0 18.1 0.7 775
70 19/2.14 10.7 1.6 1.4 17.2 0.3 1.1 20.9 0.8 1060
95 19/2.52 12.6 1.6 1.5 19.3 0.3 1.1 23.0 0.9 1360
120 37/2.03 14.2 1.6 1.5 20.9 0.3 1.2 24.8 1.0 1650
150 37/2.25 15.8 1.8 1.6 23.1 0.3 1.2 27.0 1.1 1980
185 37/2.52 17.6 2.0 1.7 25.5 0.3 1.3 29.6 1.2 2420
240 61/2.25 20.3 2.2 1.8 28.8 0.3 1.4 33.1 1.3 3110
300 61/2.52 22..7 2.4 1.9 31.8 0.4 1.4 36.6 1.5 3910
