Spiral Cables



PVC Spiral Cable

    PVC/PUR Spiral Cables

Application:

These PVC/PUR spiral cables are used as till feeder cable and they are ideally suited for use of high quality

kitchen and housekeeping utensils, lighting,electrical tools, building industry, handing equipment, entertainment

equipment etc. These cables have a high reset power, an excellent appearance and especially a long service life.

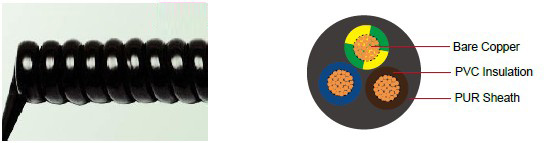

Construction:

PVC/PUR Spiral Cables

Conductor: stranded bare copper conductors according to VDE 0295 class 5

Cores twisted

Core Insulation: PVC core insulation

Core Color Code: according to VDE0293 or DIN 47100

sheath: PUR outer sheath

sheath color: black (other colors and types are available on request)

Characteristics:

Temperature Rating: -5°C to +80°C

Voltage Rating:

300V/500V (up to 1 mm²), for type H07BQ-F 450/750 V (up to 1.5 mm²)

Elasticity ratio: PVC/PUR black approx 1 : 4

Test voltage: 2000 V, for type H07BQ-F 2500V

Dimensions and Weight:

AWG Cross-section Closed Spiral Cable Outer Copper
Count
Lenght Diameter Diameter
    Weight

  mm2 mm mm mm kg/km
18 2 x 0.75 500 6.50 23.00 77.80
18 2 x 0.75 1000 6.50 23.00 149.80
18 2 x 0.75 1400 6.50 23.00 207.40
18 2 x 0.75 2000 6.50 23.00 293.80
18 2 x 0.75 3000 6.50 23.00 437.80
18 3 x 0.75 500 7.10 25.20 116.70
18 3 x 0.75 1000 7.10 25.20 224.70
18 3 x 0.75 1400 7.10 25.20 311.10
18 3 x 0.75 2000 7.10 25.20 440.60
18 3 x 0.75 3000 7.10 25.20 656.60
18 4 x 0.75 500 7.90 28.80 156.60
18 4 x 0.75 1000 7.90 28.80 301.60
18 4 x 0.75 1400 7.90 28.80 417.60
18 4 x 0.75 2000 7.90 28.80 591.60
18 4 x 0.75 3000 7.90 28.80 881.60
18 5 x 0.75 500 8.60 31.20 194.40
18 5 x 0.75 1000 8.60 31.20 374.40
18 5 x 0.75 1400 8.60 31.20 518.40
18 5 x 0.75 2000 8.60 31.20 734.40
18 5 x 0.75 3000 8.60 31.20 1094.40
17 2 x 1.00 500 6.80 24.60 103.70
17 2 x 1.00 1000 6.80 24.60 199.70
17 2 x 1.00 1400 6.80 24.60 276.50
17 2 x 1.00 2000 6.80 24.60 391.70
17 2 x 1.00 3000 6.80 24.60 583.70
17 3 x 1.00 500 7.20 26.40 156.60
17 3 x 1.00 1000 7.20 26.40 301.60
17 3 x 1.00 1400 7.20 26.40 417.60
17 3 x 1.00 2000 7.20 26.40 591.60
17 3 x 1.00 3000 7.20 26.40 884.60
17 4 x 1.00 500 7.80 28.60 207.40
17 4 x 1.00 1000 7.80 28.60 399.40
17 4 x 1.00 1400 7.80 28.60 553.00
17 4 x 1.00 2000 7.80 28.60 783.40
17 4 x 1.00 3000 7.80 28.60 1167.40
17 5 x 1.00 500 9.00 32.00 259.20
17 5 x 1.00 1000 9.00 32.00 499.20
17 5 x 1.00 1400 9.00 32.00 691.20
17 5 x 1.00 2000 9.00 32.00 979.20
17 5 x 1.00 3000 9.00 32.00 1459.20
17 7 x 1.00 500 11.10 39.00 361.80
17 7 x 1.00 1000 11.10 39.00 696.80
17 7 x 1.00 1400 11.10 39.00 964.80
17 7 x 1.00 2000 11.10 39.00 1366.80
17 7 x 1.00 3000 11.10 39.00 2036.80
16 2 x 1.50 500 8.50 30.00 156.60
16 2 x 1.50 1000 8.50 30.00 301.60
16 2 x 1.50 1400 8.50 30.00 417.60
16 2 x 1.50 2000 8.50 30.00 591.60
16 2 x 1.50 3000 8.50 30.00 881.60
16 3 x 1.50 500 8.90 32.80 232.20
16 3 x 1.50 1000 8.90 32.80 447.20
16 3 x 1.50 1400 8.90 32.80 619.20
16 3 x 1.50 2000 8.90 32.80 877.20
16 3 x 1.50 3000 8.90 32.80 1307.20
16 5 x 1.50 500 10.90 38.80 388.80
16 5 x 1.50 1000 10.90 38.80 748.80
16 5 x 1.50 1400 10.90 38.80 1036.80
16 5 x 1.50 2000 10.90 38.80 1468.80
16 5 x 1.50 3000 10.90 38.80 2188.80
16 7 x 1.50 500 12.20 46.40 545.40
16 7 x 1.50 1000 12.20 46.40 1050.40
16 7 x 1.50 1400 12.20 46.40 1451.10
16 7 x 1.50 2000 12.20 46.40 2060.40
16 7 x 2.50 3000 12.20 46.40 3070.40
16 3 x 2.50 500 10.60 38.20 388.80
16 3 x 2.50 1000 10.60 38.20 748.80
16 3 x 2.50 1400 10.60 38.20 1036.80
16 3 x 2.50 2000 10.60 38.20 1468.80
16 3 x 2.50 3000 10.60 38.20 2188.80
