Spiral Cables



PVC Spiral Cable

     PVC/PVC Spiral Cables

Application:

These PVC spiral cables are used in lighting industry, machine industry, power tools, construction industry,

consumer electronics, mobile equipment etc. These cables offers excellent low mechanical and chemical

resistance capabilities; middle elastic force; has good low-cost advantage. PVC cables have a high reset power,

an excellent appearance and especially a long service life.

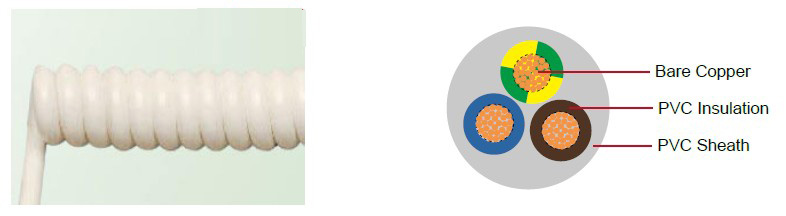

Construction:

PVC/PVC Spiral Cables

Conductor: bare copper conductors according to DIN VDE 0295 and IEC 60228 class 5

Conductor sizes: 0.5mm2to 1.5mm2, 2 to 5 cores

Core Insulation: PVC core insulation

Core Color Code: according to VDE 0293 or DIN 47100

sheath: PVC outer sheath

sheath color: black, white or grey

Characteristics:

Temperature Rating: -5°C to +70°C

Voltage Rating:

H03VVH8-F 300/300V (up to 1 mm²) H05VVH8-F 300/500V (from 1.5 mm²)

Test voltage: 2000 V

Dimensions and Weight:

AWG Cross-section Closed Spiral Cable Outer Copper
Count
Lenght Diameter Diameter
    Weight

  mm2 mm mm mm kg/km
18 2 x 0.75 200 6.20 21.40 34.60
18 2 x 0.75 400 6.20 21.40 63.40
18 2 x 0.75 600 6.20 21.40 92.20
18 2 x 0.75 800 6.20 21.40 121.00
18 2 x 0.75 1000 6.20 21.40 149.80
18 2 x 0.75 1200 6.20 21.40 178.60
18 2 x 0.75 1400 6.20 21.40 207.40
18 3 x 0.75 200 6.60 22.20 51.90
18 3 x 0.75 400 6.60 22.20 95.10
18 3 x 0.75 600 6.60 22.20 138.30
18 3 x 0.75 800 6.60 22.20 181.50
18 3 x 0.75 1000 6.60 22.20 224.70
18 3 x 0.75 1200 6.60 22.20 267.80
18 3 x 0.75 1400 6.60 22.20 311.10
17 2 x 1.00 200 6.60 22.20 43.20
17 2 x 1.00 400 6.60 22.20 65.30
17 2 x 1.00 600 6.60 22.20 122.80
17 2 x 1.00 800 6.60 22.20 161.30
17 2 x 1.00 1000 6.60 22.20 199.70
17 2 x 1.00 1200 6.60 22.20 238.10
17 2 x 1.00 1400 6.60 22.20 276.50
16 2 x 1.50 200 7.70 26.40 69.60
16 2 x 1.50 400 7.70 26.40 127.00
16 2 x 1.50 600 7.70 26.40 185.60
16 2 x 1.50 800 7.70 26.40 243.60
16 2 x 1.50 1000 7.70 26.40 301.60
16 2 x 1.50 1200 7.70 26.40 359.60
16 2 x 1.50 1400 7.70 26.40 417.60
16 3 x 1.50 200 8.50 29.00 103.20
16 3 x 1.50 400 8.50 29.00 189.20
16 3 x 1.50 600 8.50 29.00 275.20
16 3 x 1.50 800 8.50 29.00 361.20
16 3 x 1.50 1000 8.50 29.00 447.20
16 3 x 1.50 1200 8.50 29.00 533.20
16 3 x 1.50 1400 8.50 29.00 619.20
