PUR Spiral Cable

    Electronic Screened Spiral able (TPE-E/PUR)

Application:

These TPE-E/PUR screened spiral cables are used in lighting industry, machine industry, power tools,

construction industry, consumer electronics, mobile equipment etc. these cables are screened against high

frequency interference. Suitable for use in the control cable sectors requiring the use of screened semi-

conductors.

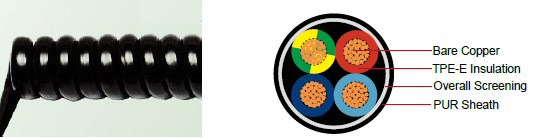

Construction:

Electronic Screened Spiral able (TPE-E/PUR)

Conductor: stranded bare copper conductors according to DIN VDE 0295 and IEC 60228 cl. 5

Cores twisted Overall screening

Core Insulation: TPE-E core insulation

Core Color Code: according to VDE 0293 or DIN 47100

sheath: PUR outer sheath

sheath color: black (other colors and types are available on request)

Characteristics:

Temperature Rating: -25°C to +70°C

Voltage Rating:

300V (up to 0.14 mm²)

500V (up to 0.25 mm²)

Elasticity ratio: TPE/PUR black approx 1 : 4

Test voltage: 2000 V

Dimensions and Weight:

AWG Cross-section Closed Spiral Cable Outer Copper
Count
Lenght Diameter Diameter
    Weight

  mm2 mm mm mm kg/km
26 2 x 0.14 300 3.80 13.60 30.60
26 2 x 0.14 400 3.80 13.60 39.60
26 2 x 0.14 500 3.80 13.60 48.60
26 2 x 0.14 1000 3.80 13.60 93.60
26 3 x 0.14 300 4.10 15.20 44.20
26 3 x 0.14 400 4.10 15.20 55.80
26 3 x 0.14 500 4.10 15.20 67.50
26 3 x 0.14 1000 4.10 15.20 135.00
26 4 x 0.14 300 4.60 16.20 47.60
26 4 x 0.14 400 4.60 16.20 61.60
26 4 x 0.14 500 4.60 16.20 75.60
26 4 x 0.14 1000 4.60 16.20 145.60
26 5 x 0.14 300 4.60 17.20 54.40
26 5 x 0.14 400 4.60 17.20 70.40
26 5 x 0.14 500 4.60 17.20 86.40
26 5 x 0.14 1000 4.60 17.20 166.40
26 6 x 0.14 300 5.20 19.40 64.60
26 6 x 0.14 400 5.20 19.40 83.60
26 6 x 0.14 500 5.20 19.40 102.60
26 6 x 0.14 1000 5.20 19.40 197.60
26 7 x 0.14 300 5.50 20.00 68.00
26 7 x 0.14 400 5.50 20.00 88.00
26 7 x 0.14 500 5.50 20.00 108.00
26 7 x 0.14 1000 5.50 20.00 208.00
26 8 x 0.14 300 5.60 20.20 74.80
26 8 x 0.14 400 5.60 20.20 96.80
26 8 x 0.14 500 5.60 20.20 118.80
26 8 x 0.14 1000 5.60 20.20 228.80
26 2 x 0.25 300 4.50 16.00 51.00
26 2 x 0.25 400 4.50 16.00 66.00
26 2 x 0.25 500 4.50 16.00 81.00
26 2 x 0.25 1000 4.50 16.00 156.00
26 4 x 0.25 300 5.00 18.00 74.80
26 4 x 0.25 400 5.00 18.00 96.80
26 4 x 0.25 500 5.00 18.00 118.80
26 4 x 0.25 1000 5.00 18.00 228.80
24 5 x 0.25 300 5.40 19.80 85.00
24 5 x 0.25 400 5.40 19.80 110.00
24 5 x 0.25 500 5.40 19.80 135.00
24 5 x 0.25 1000 5.40 19.80 260.00
24 6 x 0.25 300 5.70 20.40 102.00
24 6 x 0.25 400 5.70 20.40 132.00
24 6 x 0.25 500 5.70 20.40 162.00
24 6 x 0.25 1000 5.70 20.40 312.00
24 8 x 0.25 300 6.50 23.00 119.00
24 8 x 0.25 400 6.50 23.00 154.00
24 8 x 0.25 500 6.50 23.00 189.00
24 8 x 0.25 1000 6.50 23.00 364.00
24 12 x 0.25 300 7.10 26.20 170.00
24 12 x 0.25 400 7.10 26.20 220.00
24 12 x 0.25 500 7.10 26.20 270.00
24 12 x 0.25 1000 7.10 26.20 520.00
20 2 x 0.50 300 5.50 20.00 78.20
20 2 x 0.50 400 5.50 20.00 101.20
20 2 x 0.50 500 5.50 20.00 124.20
20 2 x 0.50 1000 5.50 20.00 239.20
20 4 x 0.50 300 5.80 21.60 153.00
20 4 x 0.50 400 5.80 21.60 198.00
20 4 x 0.50 500 5.80 21.60 243.00
20 4 x 0.50 1000 5.80 21.60 648.00
20 6 x 0.50 300 7.00 26.00 231.20
20 6 x 0.50 400 7.00 26.00 299.20
20 6 x 0.50 500 7.00 26.00 367.20
20 6 x 0.50 1000 7.00 26.00 707.20
20 8 x 0.50 300 8.00 29.00 289.00
20 8 x 0.50 400 8.00 29.00 374.00
20 8 x 0.50 500 8.00 29.00 459.00
20 8 x 0.50 1000 8.00 29.00 884.00
20 12 x 0.50 300 8.80 31.60 380.80
20 12 x 0.50 400 8.80 31.60 492.80
20 12 x 0.50 500 8.80 31.60 604.80
20 12 x 0.50 1000 8.80 31.60 1164.80
