Submarine Cables
Water Blocked Cable
Applications
These cables are water blocked, suitable for use as outboard installation cables for naval vessels.

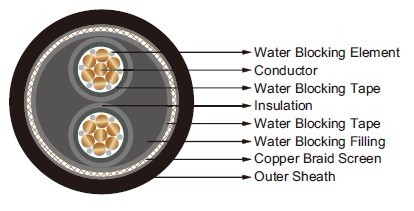

Construction
Conductor:Copper conductor, fine stranded.
Element: Water-blocking element.
Separator: Water-blocking tape.
Insulation: Special elastomer.
Fillers: Water-blocking filling.
Separator: Water-blocking tape.
Screen: Copper braid with tinned wires.
Sheath: Cross linked halogen free flame retardant compound.
Electrical Data:
500V
| Number of Cores × Nominal Cross Section Area | Maximum Transfer impedance |
| No. × mm² | m Ω /m |
| 2×10 fix | 100 |
Dimension and Weight:
500V
| Number of Cores × Nominal Cross Section Area |
Maximum Single Core Diameter |
Minimum Sheath Thickness |
Minimum Overall Diameter |
Maximum Overall Diameter |
Maximum Weight |
| No. × mm² | mm | mm | mm | mm | kg/km |
| 2×10 fix | 5.9 | 2.0 | 20.3 | 21.5 | 650 |
