176℉/80℃ PP/HDPE Flat Electrical Submersible Pump Cable

Applications

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for

installed down well in the oil industry.

Standards

IEEE Std. 1019

API RP 11S5

API RP 11S6

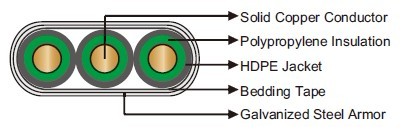

Construction

Submersible Pump Cables Flat Cables

Conductor: Solid bare copper conductor with poly adhesive layer.

Insulation: Polypropylene insulation

Jacket: HDPE jacket.

Tape: Helicoidally applied bedding tape.

Armor: Galvanized steel armor.

Dimensions and Weight:

3KV

Cable Type Conductor Size Conductor
O.D.		 Insulation Thickness Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYPH-80-3kV-3G6 6 13.3 0.16 4.1 0.075 1.9 1.5 x 0.6 39.2 x 14.4 850 1265
QYPH-80-3kV-3G4 4 21.1 0.20 5.1 0.075 1.9 1.7 x 0.6 42.4 x 15.5 1060 1577
QYPH-80-3kV-3G2 2 33.5 0.26 6.6 0.075 1.9 1.8 x 0.7 46.5 x 16.9 1360 2023
QYPH-80-3kV-3G1 1 42.4 0.29 7.4 0.075 1.9 1.9 x 0.7 48.9 x 17.7 1560 2321

4KV

Cable Type Conductor Size Conductor
O.D.		 Insulation Thickness Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYPH-80-4kV-3G6 6 13.3 0.16 4.1 0.08 2.1 1.6 x 0.6 40.4 x 14.8 880 1309
QYPH-80-4kV-3G4 4 21.1 0.20 5.1 0.08 2.1 1.7 x 0.6 43.6 x 15.9 1090 1622
QYPH-80-4kV-3G2 2 33.5 0.26 6.6 0.08 2.1 1.9 x 0.7 47.7 x 17.3 1390 2068
QYPH-80-4kV-3G1 1 42.4 0.29 7.4 0.08 2.1 2.0 x 0.7 50.1 x 18.1 1590 2366

5KV

Cable Type Conductor Size Conductor
O.D.		 Insulation Thickness Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/kft kg/km
QYPH-80-5kV-3G6 6 13.3 0.16 4.1 0.09 2.3 1.6 x 0.6 41.6 x 15.2 910 1354
QYPH-80-5kV-3G4 4 21.1 0.20 5.1 0.09 2.3 1.8 x 0.6 44.8 x 16.3 1120 1666
QYPH-80-5kV-3G2 2 33.5 0.26 6.6 0.09 2.3 1.9 x 0.7 48.9 x 17.7 1420 2113
QYPH-80-5kV-3G1 1 42.4 0.29 7.4 0.09 2.3 2.0 x 0.7 51.3 x 18.5 1620 2410

Other conductor size can be offered upon request.
