Submersible Pump Cables Flat Cables
250℉/121℃ EPDM/NBR Flat Electrical Submersible Pump Cable
Applications
These cables are designed for installed down well in the oil industry.
Standards
IEEE Std. 1018
API RP 11S5
API RP 11S6

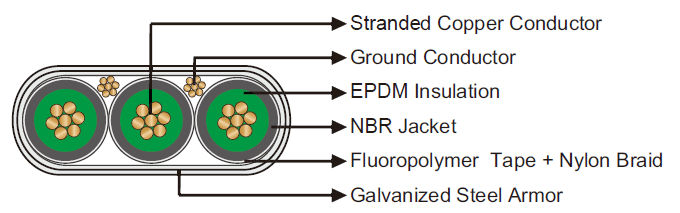

Construction
Conductor: Stranded bare copper (7/3.503) with water & gas blocking compound adhesive in the outer layer.
Insulation: EPDM insulation.
Jacket: NBR jacket.
Tape: Fluoropolymer tape.
Braid: Nylon braid.
Ground Conductor: Stranded bare copper (7/1.4mm), 2x7AWG (4AWG).
Armor: Interlocked galvanized steel.
Dimensions and Weight:
5KV
| Cable Type | Conductor Size |
Conductor O.D. |
Insulation Thickness |
Overall O.D. | Weight | |||||
| AWG | mm² | inches | mm | Inches | mm | Inches | mm | lbs/ kft |
kg/ km |
|
| QYEN-121-5kV-3G2/0 | 2/0 | 67.4 | 0.41 | 10.47 | 0.09 | 2.3 | 2.40x0.85 | 61.0 x 21.7 | 2734 | 4070 |
Other conductor size can be offered upon request.
