Submersible Pump Cables for Oil Industry
Round Cable Flat Cable

Technical Information


Submersible Pump Cables Flat Cables



284℉/140℃ EPDM/NBR Flat Electrical Submersible Pump Cable

Applications

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for

installed down well in the oil industry.

Standards

IEEE Std. 1018

API RP 11S5

API RP 11S6

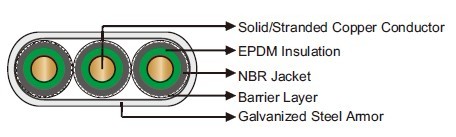

Construction

Submersible Pump Cables Flat Cables

Conductor: Solid/stranded copper conductor.

Insulation: EPDM insulation.

Jacket: Oil-resistant nitrile rubber. Each insulated conductor should be individually jacketed or three
conductors laid parallel within a common encapsulated jacket.

Barrier: Barrier tape and braid, used for fluid protection and hoop strength.

Armor: Galvanized steel.

Dimensions and Weight:

3KV

Cable Type Conductor
Size		 Conductor
O.D.		 Insulation Thickness Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/
kft		 kg/
km
QYEN-140-3kV-3G10S - 10 0.14 3.556 0.075 1.9 1.55×0.54 39.3×13.8 751 1118
QYEN-140-3kV-3G6 6 13.3 0.162 4.115 0.075 1.9 1.64×0.57 41.6×14.5 856 1274
QYEN-140-3kV-3G16S - 16 0.178 4.521 0.075 1.9 1.70×0.59 43.3×15.1 939 1397
QYEN-140-3kV-3G4 4 21.1 0.204 5.182 0.075 1.9 1.81×0.63 46.0×16.0 1084 1613
QYEN-140-3kV-3G25S - 25 0.222 5.639 0.075 1.9 1.89×0.66 47.9×16.6 1193 1775
QYEN-140-3kV-3G2 2 33.6 0.258 6.553 0.075 1.9 2.03×0.71 51.7×17.9 1430 2128
QYEN-140-3kV-3G1 1 42.4 0.289 7.341 0.075 1.9 2.16×0.75 54.9×19.0 1656 2464
QYEN-140-3kV-3G1/0 1/0 53.5 0.368 9.347 0.075 1.9 2.49×0.86 63.2×21.8 2319 3451
QYEN-140-3kV-3G2/0 2/0 67.4 0.414 10.516 0.075 1.9 2.68×0.92 68.1×23.4 2764 4114

5KV

Cable Type Conductor Size Conductor
O.D.		 Insulation Thickness Overall O.D. Weight
  AWG mm² inches mm Inches mm Inches mm lbs/
kft		 kg/
km
QYEN-140-5kV-3G10S - 10 0.14 3.556 0.09 2.3 1.68×0.59 42.6×14.9 819 1219
QYEN-140-5kV-3G6 6 13.3 0.162 4.115 0.09 2.3 1.77×0.62 44.9×15.6 926 1378
QYEN-140-5kV-3G16S - 16 0.178 4.521 0.09 2.3 1.83×0.64 46.6×16.2 1010 1503
QYEN-140-5kV-3G4 4 21.1 0.204 5.182 0.09 2.3 1.94×0.67 49.3×17.1 1158 1723
QYEN-140-5kV-3G25S - 25 0.222 5.639 0.09 2.3 2.02×0.70 51.2×17.7 1268 1887
QYEN-140-5kV-3G2 2 33.6 0.258 6.553 0.09 2.3 2.17×0.75 55.0×19.0 1509 2245
QYEN-140-5kV-3G1 1 42.4 0.289 7.341 0.09 2.3 2.29×0.79 58.3×20.1 1737 2585
QYEN-140-5kV-3G1/0 1/0 53.5 0.368 9.347 0.09 2.3 2.62×0.90 66.6×22.9 2408 3584
QYEN-140-5kV-3G2/0 2/0 67.4 0.414 10.516 0.09 2.3 2.81×0.96 71.4×24.5 2858 4253

Other conductor size can be offered upon request.
